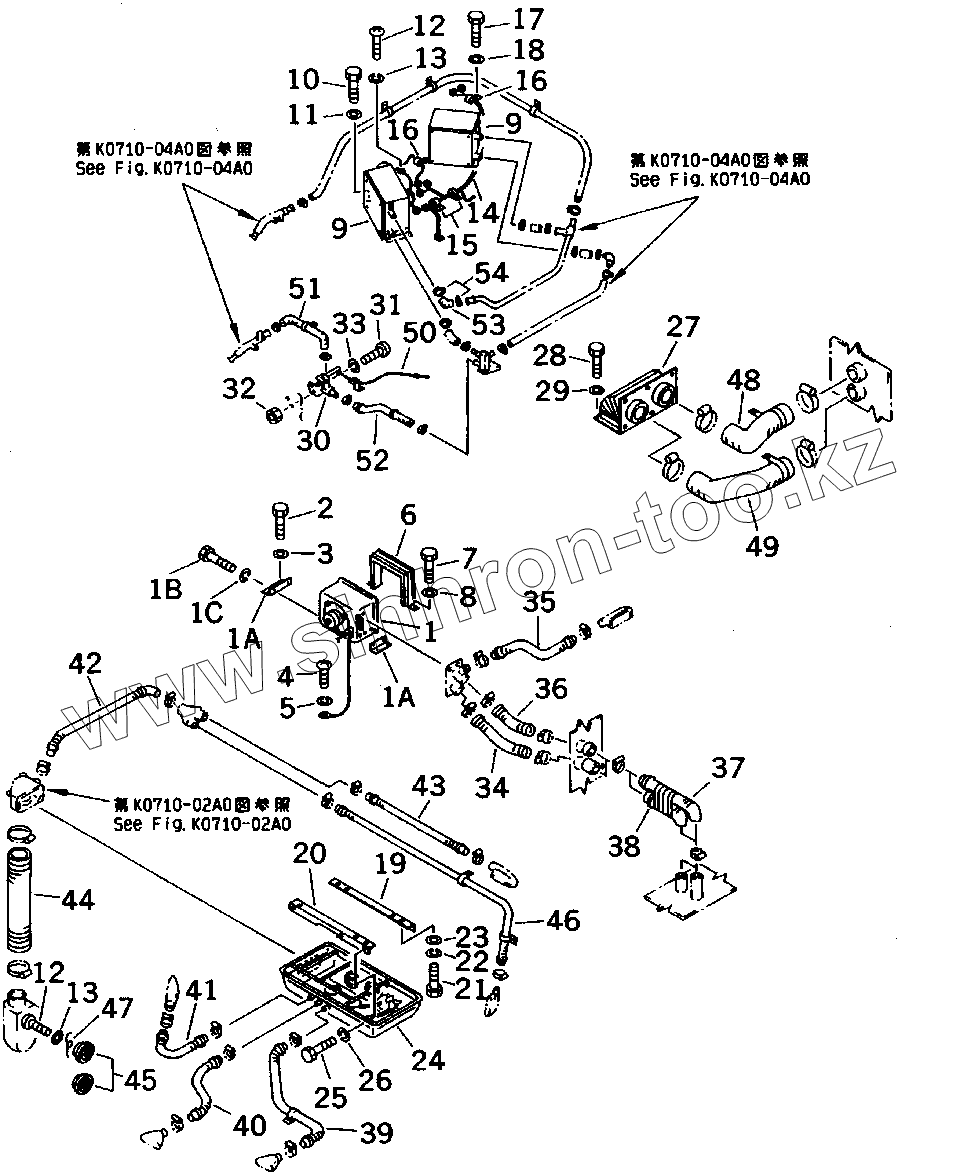

Каталог запасных частей к технике: Komatsu D155C-1D. HEATER RELATED PARTS
/69.gif)
1
1A
1A
1B
1C
2
3
4
5
6
7
8
9
9
10
11
12
12
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 195-911-4252 | HEATER ASS'Y | |
| 1A | 195-904-6140 | BRACKET | |
| 1B | 01010-80612 | BOLT | |
| 1C | 01602-20619 | WASHER, SPRING | |
| 2 | 01010-81020 | BOLT | |
| 3 | 01643-31032 | WASHER | |
| 4 | 01220-40410 | SCREW | |
| 5 | 01601-20410 | WASHER, SPRING | |
| 6 | 196-911-3560 | DUCT | |
| 7 | 01010-81020 | BOLT | |
| 8 | 01643-31032 | WASHER | |
| 9 | 195-911-4252 | HEATER ASS'Y | |
| 10 | 01010-81020 | BOLT | |
| 11 | 01643-31032 | WASHER | |
| 12 | 01220-40410 | SCREW | |
| 13 | 01601-20410 | WASHER, SPRING | |
| 14 | 195-979-4742 | WIRING HARNESS | |
| 15 | 04434-51210 | CLIP | |
| 16 | 04434-50810 | CLIP | |
| 17 | 01010-81016 | BOLT | |
| 18 | 01643-31032 | WASHER | |
| 19 | 195-979-4481 | BRACKET | |
| 20 | 195-979-4491 | BRACKET | |
| 21 | 01010-80820 | BOLT | |
| 22 | 01602-20825 | WASHER, SPRING | |
| 23 | 01643-30823 | WASHER | |
| 24 | 195-979-4531 | GRILLE ASS'Y | |
| 25 | 01010-80820 | BOLT | |
| 26 | 01602-20825 | WASHER, SPRING | |
| 27 | 195-979-4901 | DAMPER ASS'Y | |
| 28 | 01010-80816 | BOLT | |
| 29 | 01643-30823 | WASHER | |
| 30 | 195-979-4761 | VALVE ASS'Y | |
| 31 | 01220-40512 | SCREW | |
| 32 | 01580-10504 | NUT | |
| 33 | 01601-20513 | WASHER, SPRING | |
| 34 | 195-979-2410 | HOSE | |
| 35 | 09485-04504 | HOSE | |
| 36 | 195-911-5770 | HOSE | |
| 37 | 176-911-4720 | HOSE | |
| 38 | 176-911-4730 | HOSE | |
| 39 | 195-979-5680 | HOSE | |
| 40 | 198-904-4310 | HOSE | |
| 41 | 176-911-4270 | HOSE | |
| 42 | 176-911-4230 | HOSE | |
| 43 | 09485-04507 | HOSE | |
| 44 | 176-911-4320 | HOSE | |
| 45 | 145-Z79-5240 | GRILLE | |
| 46 | 09485-04516 | HOSE | |
| 47 | 145-Z79-5250 | HOLDER | |
| 48 | 196-911-3570 | HOSE | |
| 49 | 196-911-3580 | HOSE | |
| 50 | 196-911-3510 | CABLE | |
| 51 | 196-911-3480 | HOSE | |
| 52 | 196-911-3490 | HOSE | |
| 53 | 195-Z11-3420 | HOSE | |
| 54 | 07281-00419 | CLAMP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
