Каталог запасных частей к технике: Komatsu D155C-1D. FRONT IDLER
/148.gif)
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
12
13
13
14
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34

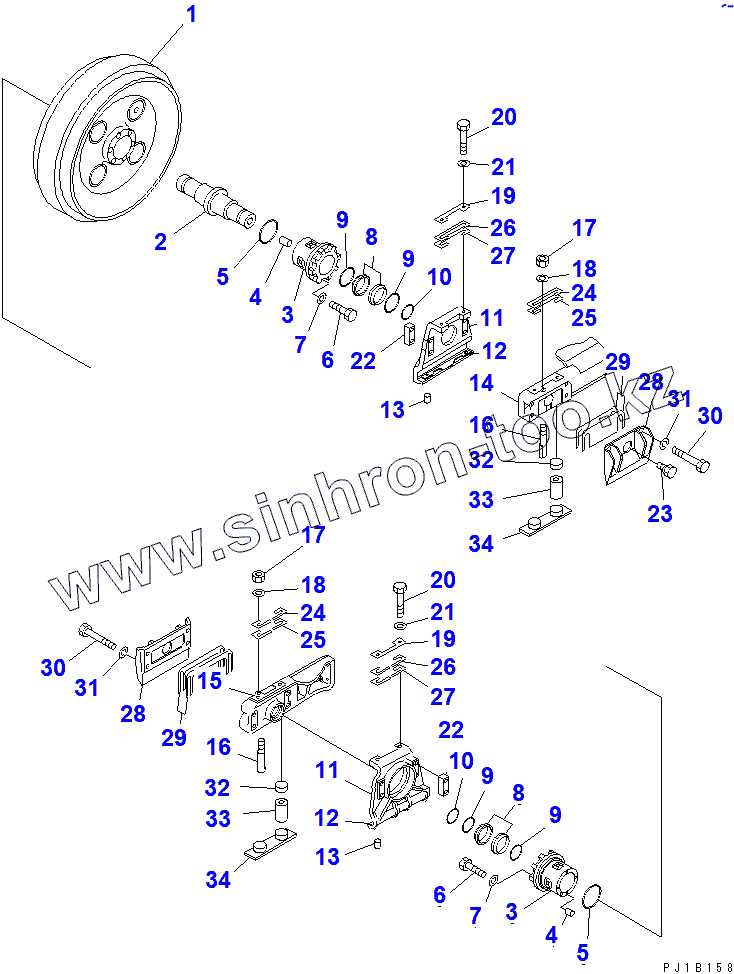

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 175-30-33273 | 175-30-33273 | GUIDE ASS'Y | |
| 175-30-05050 | 175-30-05050 | SHIM KIT | |
| 175-30-05060 | 175-30-05060 | SHIM KIT | |
| SHIM, 1.0MM | SHIM, 1.0MM | SHIM, 1.0MM | |
| SHIM, 0.5MM | SHIM, 0.5MM | SHIM, 0.5MM | |
| 176-30-00134 | 176-30-00134 | IDLER ASS'Y | |
| 175-30-00602 | 175-30-00602 | FLOATING SEAL ASS'Y | |
| 1 | 175-30-23114 | IDLER | |
| 2 | 175-30-23121 | SHAFT | |
| 3 | 176-30-46100 | BUSHING ASS'Y | |
| 4 | 176-30-16150 | PIN,DOWEL | |
| 5 | 07000-42130 | O-RING | |
| 6 | 01010-81235 | BOLT | |
| 7 | 01643-31232 | WASHER | |
| 8 | RING | RING | |
| 9 | O-RING | O-RING | |
| 10 | 07000-43068 | O-RING | |
| 11 | GUIDE | GUIDE | |
| 12 | 170-30-13343 | PLATE | |
| 13 | 04022-12025 | PIN | |
| 14 | 176-30-43111 | SUPPORT,L.H. | |
| 15 | 176-30-43121 | SUPPORT,R.H. | |
| 16 | 175-30-23172 | BOLT | |
| 17 | 175-30-23180 | NUT | |
| 18 | 01643-31645 | WASHER | |
| 19 | 175-30-33460 | PLATE | |
| 20 | 175-30-33492 | BOLT | |
| 21 | 01643-32060 | WASHER | |
| 22 | 175-30-33430 | SEAT | |
| 23 | 07052-31624 | PLUG | |
| 24 | SHIM, 1.0MM | SHIM, 1.0MM | |
| 25 | SHIM, 2.0MM | SHIM, 2.0MM | |
| 26 | SHIM, 1.0MM | SHIM, 1.0MM | |
| 27 | SHIM, 2.0MM | SHIM, 2.0MM | |
| 28 | 175-30-33215 | PLATE | |
| 29 | 175-30-05070 | SHIM KIT | |
| 30 | 01011-82260 | BOLT | |
| 31 | 01602-22268 | WASHER,SPRING | |
| 32 | 195-30-17960 | PLATE | |
| 33 | 155-30-13230 | SPRING | |
| 34 | 175-30-24131 | SEAT, GUIDE |
