Позиция на иллюстрации
Заводской номер детали
Название детали

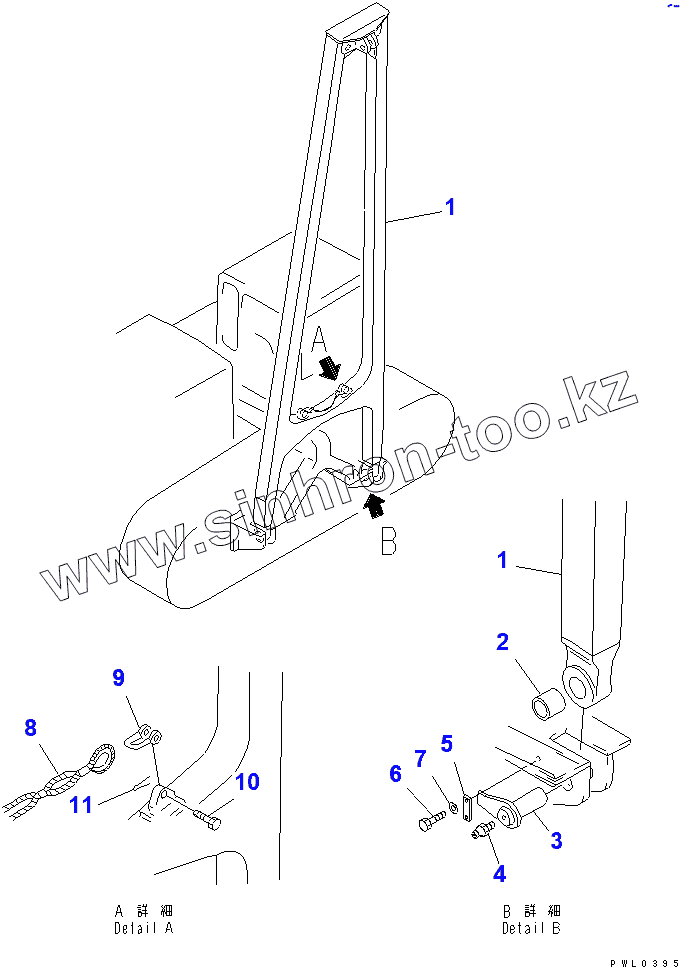

BOOM
BOOM
BOOM
1
176-70-00300
BOOM ASS'Y,(7.3M)
2
176-70-11460
BUSHING
3
176-70-41150
SHAFT
4
07020-00000
FITTING, GREASE
5
176-72-41230
PLATE
6
01010-81435
BOLT
7
01643-31445
WASHER
8
19N-70-11171
ROPE
9
196-70-12350
SHACKLE
10
01012-52490
BOLT
11
04050-15045
PIN
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
