Каталог запасных частей к технике: JLG G9-43A. Tilt Carriage

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано G10-43A (2014) G9-43A (2014)

Схема > Не выбрано Frame Shrouding & Trim Frame Shrouding & Trim Frame Shrouding & Trim Frame Shrouding & Trim Axle Mounting Outrigger Mounting First Boom Section Bearing Pads, Spacers & Shims, (First Boom Section) Second Boom Section Bearing Pads, Spacers & Shims, (Second Boom Section) Third Boom Section Bearing Pads, Spacers & Shims, (Third Boom Section) Push Beam/Extend Chain & Roller Assembly Push Beam/Extend Chain & Roller Assembly Manual Quick Switch Assembly Manual Quick Switch Assembly Tilt Carriage Tilt Carriage Buckets Side Tilt Carriage Before S/N 0160037671 Side Tilt Carriage S/N 0160037671 & After Truss Boom Before S/N 0160037671 Truss Boom Before S/N 0160037671 & After Truss Boom With Winch S/N 0160037671 Truss Boom With Winch S/N 0160037671 & After Swing Carriage S/N 0160037671 Swing Carriage S/N 0160037671 & After Sheet Material Handler Before S/N 0160037671 Sheet Material Handler S/N 0160037671 & After Winch Installation Degree Drywall Swing Carriage Assembly Personnel Platform Before S/N 0160037671 Fork Mounted Platform Degree Swing Carriage With Side Shift Before S/N 0160037671 Degree Swing Carriage With Side Shift Before S/N 0160037671 Forks Fork Mounted Lifting Hook Before S/N 2005134-01 Fork Mounted Lifting Hook S/N 2005134-01 & After Grapple Bucket Fork Pin Lock Installation S/N 0160037671 & After Dual Fork Positioning Carriage Assembly S/N 0160037671 & After Ft Mast With 72 In Carriage Before S/N 0160037671 Ft Standard Mast S/N 0160037671 & After Ft Standard Mast S/N 0160037671 & After Ft Side Tilt Electric Mast S/N 0160037671 & After Ft Side Tilt Electric Mast S/N 0160037671 & After 50 in Side Shift Carriage S/N 0160037671 & After Engine Assembly, LH View - Engine S/N 0193001 thru 0193007 & 0160000008 thru 0160003121 excluding 0160002658 Engine Assembly, LH View - Engine S/N 0160003210 thru 0160040674 including 0160002658 excluding 0160040468 & 0160040672 Engine Assembly, RH View - Engine S/N 0193001 thru 0193007 & 0160000008 thru 0160003121 excluding 0160002658 Engine Assembly, RH View - Engine including S/N 0160003210 thru 0160040674 including 0160002658 excluding 0160040468 & 0160040672 Engine Assembly - Engine S/N 0160020943 thru 0160040674 including 0160020803, 0160020823 & 0160020824 excluding 0160040468 & 160040672 Engine Assembly S/N 0160040675 & After including 0160040468 & 0160040672 Engine S/N 0193001 thru 0193007 & 0160000008 thru 0160003121 excluding 0160002658 Engine S/N 0160003210 thru 0160006663 including 0160002658 excluding 0160006594, 0160006599, 0160006617 & 0160006621 Engine S/N 0160006686 thru 0160040674 including 0160006594, 0160006599 0160006617 & 0160006621 excluding 0160040468 & 0160040672 Engine S/N 0160020943 thru 0160040674 including 0160020803, 0160020823 & 0160020824 excluding 0160040468 & 0160040672 Engine S/N 0160040675 & After including 0160040468 & 0160040672 Fuel Tank & Lines Before S/N 0160040675 excluding 0160040468 & 0160040672 Fuel Tank & Lines S/N 0160040675 & After including 0160040468 & 0160040672 Radiator Assembly - Engine S/N 019001 thru 0193007 & 0160000008 thru 0160000240 Radiator Assembly - Engine S/N 0160000246 thru 0160040674 excluding 0160040468 & 0160040672 Radiator Assembly - Engine S/N 0160020943 thru 0160040674 including 0160020803, 0160020823 & 0160020824excluding 0160040468 & 0160040672 Radiator Assembly - Engine S/N 0160040675 & After including 0160040468 & 0160040672 Air Cleaner & Installation - Engine Before S/N 0160040675 excluding 0160040468 & 0160040672 Air Cleaner & Installation - Engine S/N 0160020943 thru 0160040674 including 0160020803, 0160020823 & 0160020824 excluding 0160040468 & 0160040672 Air Cleaner & Installation - Engine S/N 0160040675 & After including 0160040468 & 0160040672 Exhaust Installation - Engine Before S/N 0160040675 excluding 0160040468 & 0160040672 Exhaust Installation - Engine S/N 0160020943 thru 0160040674 including 0160020803, 0160020823 & 0160020824 excluding 0160040468 & 0160040672 Exhaust Installation - Engine S/N 0160040675 & After including 0160040468 & 0160040672 DanaTransmission - Converter Housing Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Case & Plate Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Torque Converter Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Gear Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Pump Drive Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Charging Pump Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Reverse Idler Group Before S/N 0160040675 excluding 0160040468 & 0160040672 DanaTransmission - Forward & Reverse Shaft Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - 3rd Shaft Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - First & Second Shaft Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Output Shaft Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Electric Control Group S/N 0193001 thru 0193007 & 0160000008 thru 0160011036 Dana Transmission - Electric Control Group S/N 0160011061 thru 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Drive Plate Group Before S/N 0160040675 excluding 0160040468 & 0160040672 Dana Transmission - Drop Box Group Before S/N 0160040675 excluding 0160040468 & 0160040672 ZF Transmission S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Transmission Converter & Input S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Gearbox Housing S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Reversing Gear S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Reverse Gear Group S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - 1st Shaft Group S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - 2nd Shaft Group S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - 3rd Shaft Group S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - 4th Shaft Group S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Power Take-Off S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Control Unit & Pressure Regulator S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Gearshift System S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Oil Pump, Filter & Dipstick S/N 0160040675 & After including 0160040468 & 0160040672 ZF Transmission - Transfer Box S/N 0160040675 & After including 0160040468 & 0160040672 Front Axle Assembly Front Axle Front Axle Housing Assembly Front Steering Components Front Gear Components Front Differential Front Double Joint Front Brakes Front Wheel Hub Front Reduction Gears Rear Axle Assembly Rear Axle Rear Axle Housing Assembly Rear Steering Components Rear Gear Components Rear Differential Rear Double Joint Rear Brakes Before S/N 0160035189 excluding 0160035166 Rear Brakes S/N 0160035189 & After including 0160035166 Rear Wheel Hub Rear Reduction Gears Drive Shaft Assembly Tires & Rims Tires & Rims Open Cab Cab Enclosures Cab Components Cab Door Assembly Cab Glass Suspension Seat Dash Panel Before S/N 0160040675 excluding 0160040468 & 0160040672 Dash Panel S/N 0160040675 & After including 0160040468 & 0160040672 Instrument Panel Before S/N 0160040675 excluding 0160040468 & 0160040672 Instrument Panel S/N 0160040675 & After including 0160040468 & 0160040672 Top Cab Glass Shield Front Cab Glass Shield Tilt and Frame Level Joystick Installation Tilt & Sway Joystick Assembly Accelerator Pedal Installation Before S/N 0160001378 excluding 0160001280 Accelerator Pedal Installation S/N 0160001378 thru 0160038394 including 0160001280 Accelerator Pedal Installation S/N 0160038525 thru 0160040674 excluding 0160040468 & 0160040672 Accelerator Pedal Installation S/N 0160040675 & After including 0160040468 & 0160040672 Steering Column & Attaching Parts Before S/N 0160040675 excluding 0160040468 & 016004062 Steering Column & Attaching Parts S/N 0160040675 & After including 0160040468 & 0160040672 Brake Pedal Installation Before S/N 0160029241 Brake Pedal Installation S/N 0160029241 thru 0160040674 excluding 0160040468 & 0160040672 Brake Pedal Installation S/N 0160040675 & After including 0160040468 & 0160040672 Boom Joystick Before S/N 0160040675 excluding 0160040468 & 0160040672 Boom Joystick S/N 0160040675 & After including 0160040468 & 0160040672 Outrigger Joysticks Frame Level Joystick Assembly Electric Auxiliary Hydraulic Joystick Auxiliary Hydraulic Joystick Tilt Hydraulic Joystick Priority Valve Circuit S/N 0193001 thru 0193007 & 0160000008 thru 0160012095 Priority Valve Circuit S/N 0160012153 thru 0160040674 excluding 0160040468 & 0160040672 Priority Valve Circuit Before S/N 0160040675 excluding 0160040468 & 0160040672 Priority Valve Circuit Before S/N 0160040675 excluding 0160040468 & 0160040672 Dump Circuit Before S/N 0160040675 excluding 0160040468 & 0160040672 Dump Circuit S/N 0160040675 & After including 0160040468 & 0160040672 Steer Select Valve Before S/N 0160040675 excluding 0160040468 & 0160040672 Steer Select Valve S/N 0160040675 & After including 0160040468 & 0160040672 Service/Parking Brake Before S/N 0160040675 excluding 0160040468 & 0160040672 Service/Parking Brake S/N 0160040675 & After including 0160040468 & 0160040672 Boom Joystick Circuit Before S/N 0160040675 excluding 0160040468 & 0160040672 Boom Joystick Circuit S/N 0160040675 & After including 0160040468 & 0160040672 Boom Joystick Circuit Before S/N 0160040675 excluding 0160040468 & 0160040672 Boom Joystick Circuit S/N 0160040675 & After including 0160040468 & 0160040672 Lift Cylinder Before S/N 0160040675 excluding 0160040468 & 0160040672 Lift Cylinder S/N 0160040675 & After including 0160040468 & 0160040672 Crowd Cylinder Before S/N 0160040675 excluding 0160040468 & 0160040672 Crowd Cylinder S/N 0160040675 & After including 0160040468 & 0160040672 Tilt & Tilt Compensating Cylinder Before S/N 0160040675 excluding 0160040468 & 0160040672 Tilt & Tilt Compensating Cylinder S/N 0160040675 & After including 0160040468 & 0160040672 Sway Cylinder Outrigger Cylinders Before S/N 0160040675 excluding 0160040468 & 0160040672 Outrigger Cylinders S/N 0160040675 & After including 0160040468 & 0160040672 Outrigger Joysticks Before S/N 0160040675 excluding 0160040468 & 0160040672 Outrigger Joysticks S/N 0160040675 & After including 0160040468 & 0160040672 Auxiliary Hydraulics S/N 0160040675 & After including 0160040468 & 0160040672 Lift Cylinder S/N 0193001 thru 0193007 & 0160000008 thru 0160007141 Lift Cylinder S/N 0160007176 thru 0160007822 Lift Cylinder S/N 0160008020 thru 0160033297 excluding 0160032951 Lift Cylinder G9-43A S/N 016003316 thru 0160040675 including 0160032951 excluding 0160040468 G10-43A S/N 0160038081 thru 0160040208 Lift Cylinder G9-43A S/N 0160040675 & After including 0160040468 G10-43A S/N 0160041167 & After Crowd Cylinder - Iowa Before S/N 0160033222 Crowd Cylinder S/N 0160033222 & After Tilt Cylinder S/N 0193001 thru 0193007 & 0160000008 thru 0160007141 Tilt Cylinder S/N 0160007142 thru 0160033297 Tilt Cylinder S/N 0160033316 & After Compensating Cylinder S/N 0193001 thru 0193007 & 0160000008 thru 0160007141 Compensating Cylinder S/N 0160007176 thru 0160007822 Compensating Cylinder S/N 0160007869 thru 0160007970 Compensating Cylinder S/N 0160008020 thru 0160033297 Compensating Cylinder S/N 0160033316 & After Sway Cylinder S/N 0193001 thru 0193007 & 0160000008 thru 0160033206 Sway Cylinder S/N 0160033222 & After Main Control Valve Before S/N 0160040675 excluding 0160040468 & 0160040672 Main Control Valve S/N 0160040675 & After including 0160040468 & 0160040672 Main Control Valve Before S/N 0160040675 excluding 0160040468 & 0160040672 Main Control Valve S/N 0160040675 & After including 0160040468 & 0160040672 Hydraulic Pump Before S/N 0160040675 excluding 0160040468 & 0160040672 Hydraulic Pump S/N 0160040675 & After including 0160040468 & 0160040672 Hydraulic Pump S/N 0160040675 & After including 0160040468 & 0160040672 Hydraulic Tank Assembly Before S/N 0160040675 excluding 0160040468 & 0160040672 Hydraulic Tank Assembly S/N 0160040675 & After including 0160040468 & 0160040672 Sway Cylinder Valve Power Brake Valve Before S/N 0160029241 Power Brake Valve S/N 0160029241 thru 0160040674 excluding 0160040468 & 0160040672 Power Brake Valve S/N 0160040675 & After including 0160040468 & 0160040672 Priority Valve Before S/N 0160025316 Priority Valve S/N 0160025316 thru 0160040674 excluding 0160040468 & 0160040672 Steer Select Valve Before S/N 0160040675 Steer Select Valve S/N 0160040675 & After Grapple Bucket Cylinder Side Tilt Carriage Cylinder 72” 90 Degree Swing Carriage Cylinder Outrigger Control Valve Before S/N 0160040675 excluding 0160040468 & 0160040672 Outrigger Control Valve S/N 0160040675 & After including 0160040468 & 0160040672 Outrigger Cylinder Before S/N 0160039840 Outrigger Cylinder S/N 0160039840 & After Hydraulic Manifold S/N 0160040675 & After including 0160040468 & 0160040672 50 in Side Shift Carriage Cylinder S/N 0160037671 & After Battery & Cables Before S/N 0160040675 excluding 0160040468 & 0160040672 Battery & Cables S/N 0160040675 & After including 0160040468 & 0160040672 Engine Harness - Engine S/N 0193001 thru 0193007 & 0160000008 thru 0160002051 Engine Harness - Engine S/N 0160002054 thru 0160006663 excluding 0160006594, 0160006599, 0160006617 & 0160006621 Engine Harness - Engine S/N 0160006686 thru 0160011036 including 0160006594, 0160006599, 0160006617 & 0160006621 Engine Harness - Engine S/N 0160011061 thru 0160018121 Engine Harness - Engine S/N 0160018152 thru 0160020933 excluding 0160020803, 0160020823 & 0160020824 Engine Harness - Engine S/N 0160020943 thru 0160040674 including 0160020803, 0160020823 & 0160020824 excluding 0160040468 & 0160040672 Engine Harness - Engine S/N 0160020943 thru 0160040674 including 0160020803, 0160020823 & 0160020824 excluding 0160040468 & 0160040672 Engine Harness - Engine S/N 0160040675 & After including 0160040468 & 0160040672 Transmission Harness - Dana Transmission S/N 0160020943 thru 0160040675 including 0160020803, 0160020823 & 0160020824 excluding 0160040468 & 0160040672 Transmission Harness - ZF S/N 0160040675 & After including 0160040468 & 0160040672 Cab Work Light Harness S/N 0160034649 & After Anti-Stall Harness & Control S/N 0160040675 & After including 0160040468 & 0160040672 Cab Control Harness S/N 0160040675 thru 0160045923 including 0160040468 & 0160040672 Cab Control Harness S/N 0160045923 & After Cab Dash Harness S/N 0160040675 & After including 0160040468 & 0160040672 VEC Box Harness S/N 0160040675 & After including 0160040468 & 0160040672 Cab Options Harness S/N 0160040675 & After including 0160040468 & 0160040672 Accessory Module Harness S/N 0160040675 & After including 0160040468 & 0160040672 Tilt & Aux Control Module S/N 0160040675 & After including 0160040468 & 0160040672 Tilt On Joystick Harness Before S/N 0160040675 excluding 0160040468 & 0160040672 Cab Work Light Harness Cab Work Light And Beacon Light Switch Harness Before S/N 0160040675 excluding 0160040468 & 0160040672 Boom Work Lights Harness Frame Road Lights Harness Cab Road Lights Harness Chassis Harness Cab & Frame Decals Cab & Frame Decals Cab & Frame Decals Cab & Frame Decals Boom Decals S/N 0193001 thru 0193007 & 0160000008 thru 0160000668 Boom Decals S/N 0160000683 thru 0160006218 Boom Decals S/N 0160006234 thru 0160040674 excluding 0160040468 & 0160040672 Boom Decals S/N 0160040675 & After including 0160040468 & 0160040672 Enclosed Cab Heater Components S/N 0193001 thru 0193007 & 0160000008 thru 0160015259 Enclosed Cab Heater Components S/N 0160040675 & After including 0160040468 & 0160040672 Enclosed Cab Heater Components S/N 0160040675 & After including 0160040468 & 0160040672 Open Cab Heater Components S/N 0160015460 thru 0160040674 excluding 0160040468 & 0160040672 Open Cab Heater Components S/N 0160020943 thru 0160040674 excluding 0160040675 & 0160040672 including 0160020803, 0160020823 & 0160020824 Open Cab Heater Components S/N 0160040675 & After including 0160040468 & 0160040672 Engine Heater Components Worklight Package Before S/N 0160031635 Cold Start Installation - Engine Before S/N 0160040675 excluding 0160040468 & 0160040672 Block Heater Installation - Engine Before S/N 0160040675 excluding 0160040468 & 0160040672 Stabilizer Option Stabilizer Option - Stabilizer Cylinder Tilt on Joystick With RH Sway Before S/N 0160040675 excluding 0160040468 & 0160040672 Auxiliary Boom Assembly Before S/N 0160037671 Auxiliary Boom Assembly S/N 0160037671 & After LH Auxiliary Hydraulic Assembly Before S/N 0160040675 excluding 0160040468 & 0160040672 Auxiliary Electrics Assembly Before S/N 0160037671 Auxiliary Electrics Assembly S/N 0160037671 & After Sway Cylinder Valve Sway Cylinder Beacon Light Installation Before S/N 0160035414 Beacon Light Installation S/N 0160035414 thru 0160040674 excluding 0160040468 & 0160040672 Beacon Light Installation S/N 0160040675 & After including 0160040468 & 0160040672 Pintle Hook Installation Suspension Seat S/N 0193001 thru 0193007 & 0160000008 thru 0160015259 Swing Cylinder Main Control Valve With Auxiliary Hydraulic Before S/N 0160037671 Main Control Valve With Auxiliary Hydraulics S/N 0160037671 thru 0160040674 excluding 0160040468 & 0160040672 Main Control Valve With Tilt on Joystick Before S/N 0160040675 excluding 0160040468 & 0160040672 Main Control Valve With Auxiliary Hydraulics & Tilt on Joystick Before S/N 0160037671 Main Control Valve With Auxiliary Hydraulics & Tilt on Joystick S/N 0160037671 thru 0160040674 excluding 0160040468 & 0160040672 Truss Boom Pressure Valve - 1200 PSI Truss Boom Pressure Valve - 1360 PSI Truss Boom Winch Winch Motor Swing Cylinder Starter Kit S/N 0193001 thru 0193007 & 0160000008 thru 0160006660 excluding 0160006594, 0160006599 & 0160006621 Fuel/Water Separator Installation - Engine Before S/N 0160040675 excluding 0160040468 & 0160040672 Standard Seat Replacement Kit Heavy Duty Seat Replacement Kit Work Light Installation Before S/N 0160030299 Work Light Installation S/N 0160030299 thru 0160040674 excluding 0160040468 & 0160040672 Work Light Installation S/N 0160040675 & After including 0160040468 & 0160040672 Road Lights Installation Before S/N 0160040675 excluding 0160040468 & 0160040672 Road Lights Installation S/N 0160040675 & After including 0160040468 & 0160040672 Engine Air Conditioning Components Before S/N 0160040675 excluding 0160040468 & 0160040672 Engine Air Conditioning Components Before S/N 0160040675 excluding 0160040468 & 0160040672 Engine Air Conditioning Components S/N 0160040675 & After including 016004068 & 0160040672 Air Conditioning Components Before S/N 0160040675 excluding 0160040468 & 0160040672 Air Conditioning Components S/N 0160040675 & After including 016004068 & 0160040672 Winch Auxiliary Electric Harness Arctic Package S/N 0160037905 thru 0160040674 Arctic Package S/N 0160040675 & After Fender Installation

1

2

4

5

6

7

8

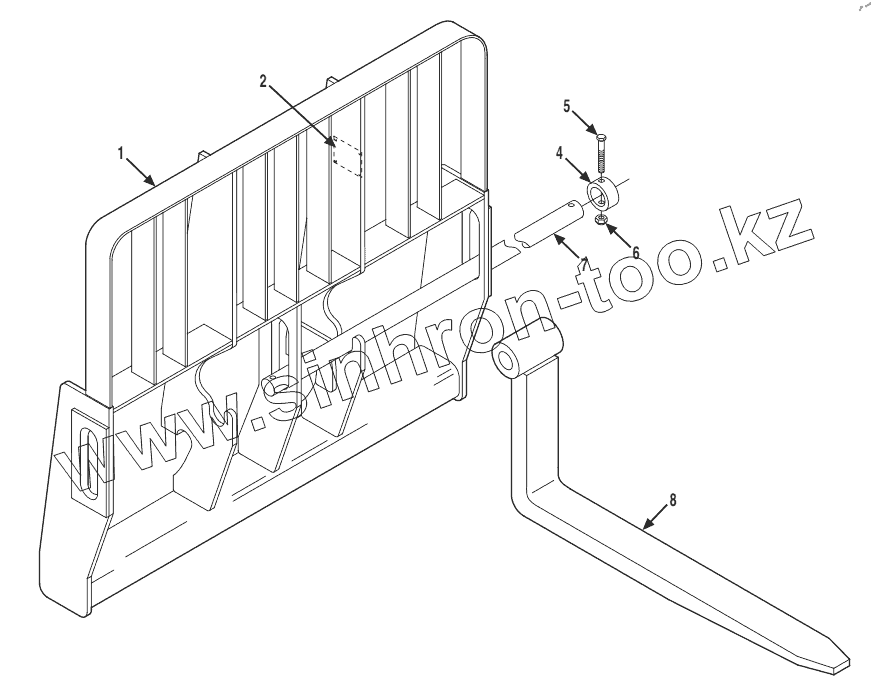

Позиция на иллюстрации	Заводской номер детали		Название детали
91405073	91405073		48 IN CARRIAGE ASSY
91405074	91405074		72 IN CARRIAGE ASSY
NSS 72 IN CARRIAGE WELDMENT	NSS 72 IN CARRIAGE WELDMENT		72 IN CARRIAGE WELDMENT
91401324	91401324		FORK PIN
1	NSS 48 IN CARRIAGE WELDMENT		48 IN CARRIAGE WELDMENT
2	NSS S/N PLATE		S/N PLATE
4	90200003		COLLAR
5	88201105		HEX HD CAPSCREW
6	88521310		HEX LOCKNUT
7	91401303		FORK PIN
8	FORK		FORK
