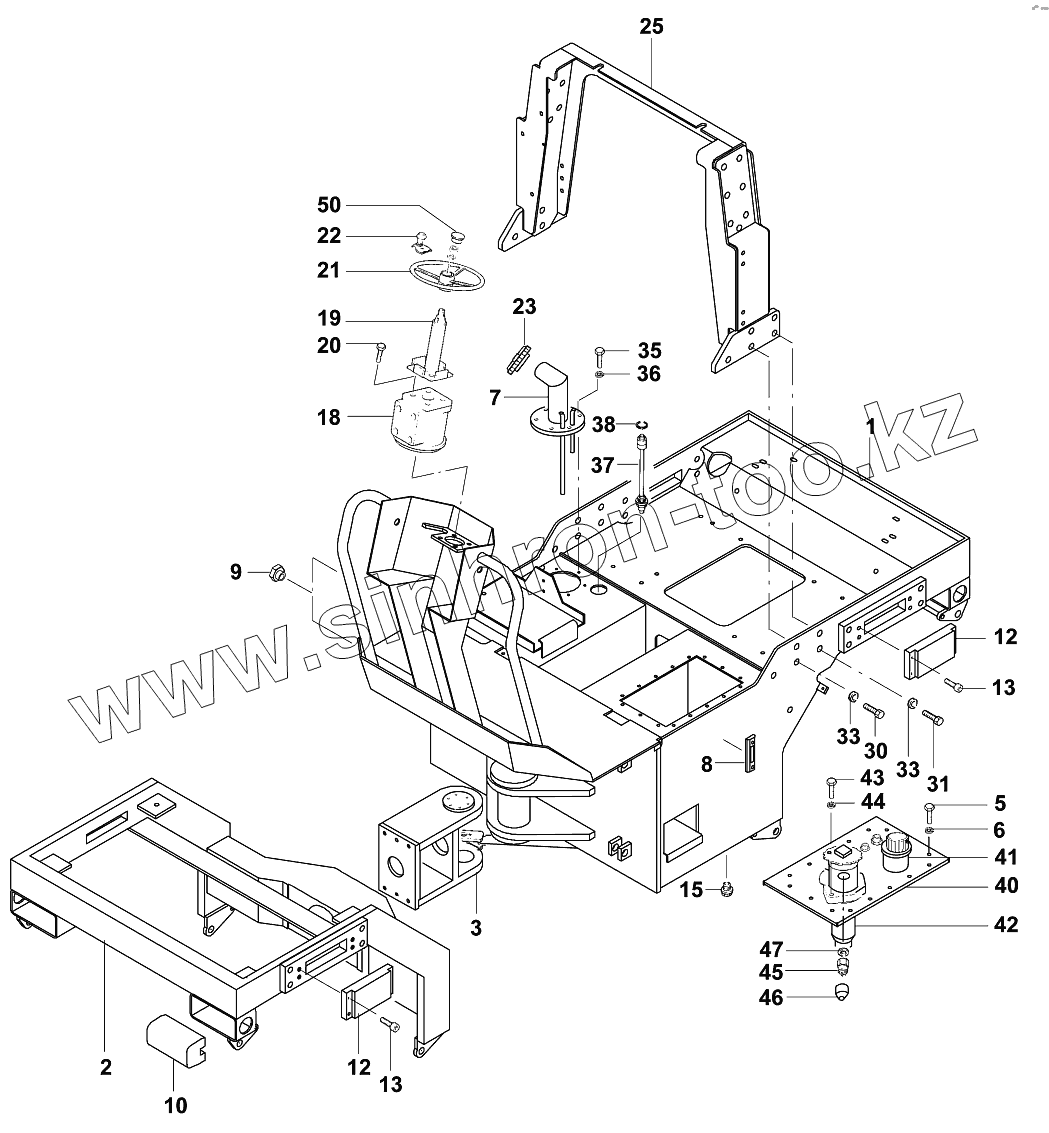

Каталог запасных частей к технике: JCB VMТ-270/280. Рама/Frame
1
2
3
5
6
7
8
9
10
12
12
13
13
15
18
19
20
21
22
23
25
30
31
33
33
35
36
37
38
40
41
42
43
44
45
46
47
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07131/11100 | Frame, rear | |
| 2 | 07131/12000 | Frame, front | |
| 3 | 87130/40300 | Articulated joint, cpl. | |
| 5 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 6 | 02113/00708 | Screw retaining device | |
| 7 | 07131/11300 | Filler neck | |
| 8 | 02612/00032 | Oil level indicator | |
| 9 | 02612/00008 | Oil level indicator | |
| 10 | 04058/24020 | Squeezing protection | |
| 12 | 07130/09401 | Plate | |
| 13 | 02027/08030 | Cap screw M8x30 DIN912 | |
| 15 | 02506/20112 | Union | |
| 18 | 07130/09330 | Steering unit | |
| 19 | 07130/09340 | Steering column | |
| 20 | 02021/10035 | Hexagon screw M10x35 DIN933 | |
| 21 | 02746/10000 | Steering wheel | |
| 22 | 02746/10001 | Handle | |
| 23 | 02940/04040 | Closure | |
| 25 | 07131/11200 | Rops-substructure | |
| 30 | 02021/16045 | Hexagon screw M16x45 DIN933 | |
| 31 | 02021/16030 | Hexagon screw M16x30 DIN933 | |
| 33 | 02201/00016 | Washer 17 DIN125 | |
| 35 | 02021/06020 | Hexagon screw M6x20 DIN933 | |
| 36 | 02113/00706 | Screw retaining device | |
| 37 | 08107/01145 | Switch | |
| 38 | 02766/03339 | Seal ring A33x39x2 DIN7603 | |
| 40 | 07130/40430 | Cover lid | |
| 41 | 02611/00140 | Filter | |
| 42 | 02611/00120 | Return flow filter | |
| 43 | 02021/10035 | Hexagon screw M10x35 DIN933 | |
| 44 | 02113/00710 | Screw retaining device | |
| 45 | 02610/00002 | Presure switch | |
| 46 | 02610/00003 | Protective cap | |
| 47 | 02766/01215 | Seal ring A12x15,5 DIN7603 | |
| 50 | 04021/28032 | Cover | |
| 87131/10001 | 87131/10001 | Frame, cpl. |
