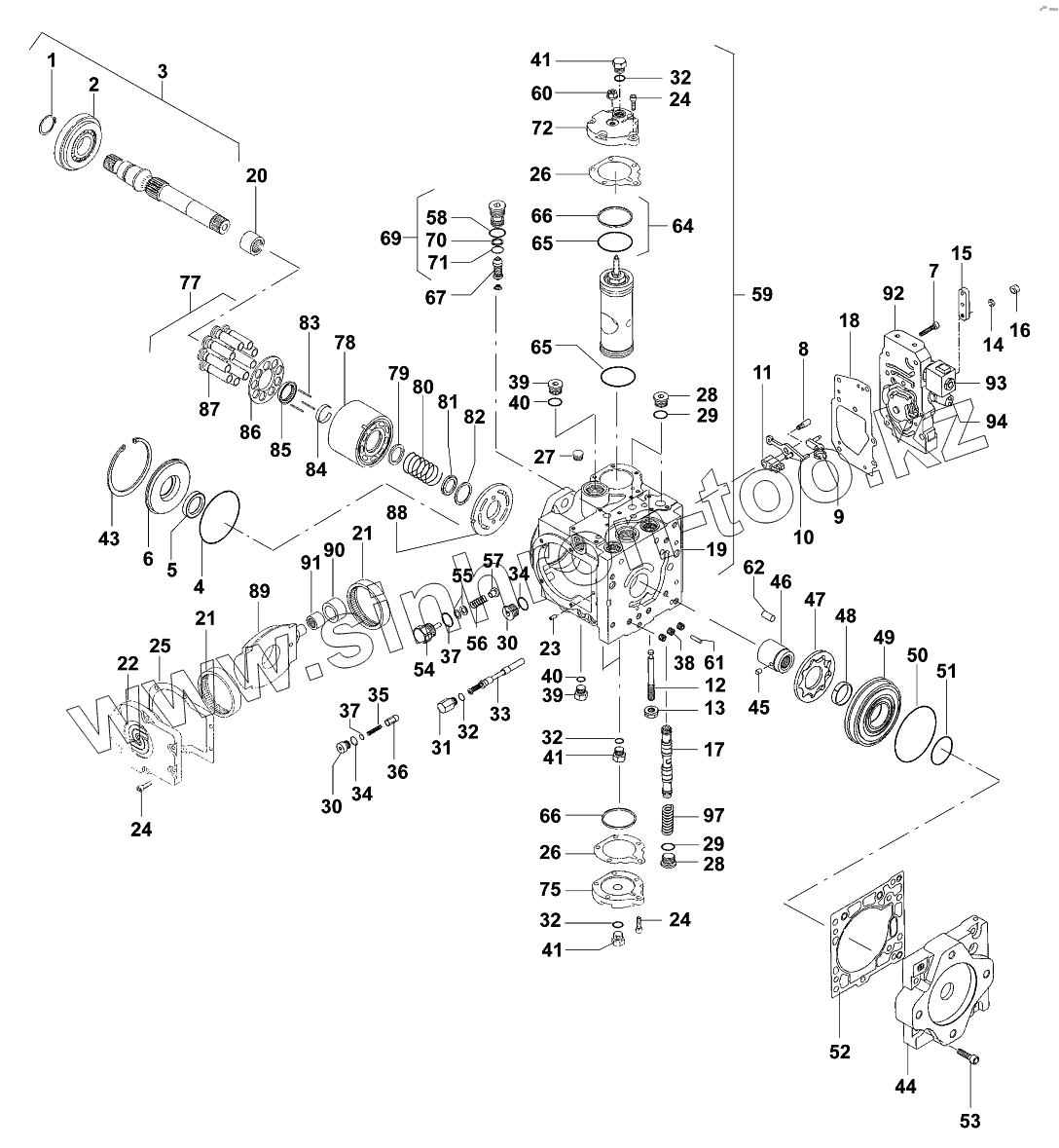

Каталог запасных частей к технике: JCB VMТ-270/280. Гидронасос/Variable displacement hydro pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
24
25
26
26
27
28
28
28
29
30
30
31
32
32
32
32
33
34
34
35
36
37
37
38
39
39
40
40
41
41
41
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
64
65
65
66
66
67
69
70
71
72
75
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
97
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07130/07738 | Retaining ring | |
| 2 | 07130/07652 | Bearing | |
| 3 | 07130/07653 | Shaft | |
| 4 | 07130/07655 | O-ring | |
| 5 | 07130/07656 | Ring | |
| 6 | 07130/07654 | Shaft seal ring | |
| 7 | 07130/07657 | Screw | |
| 8 | 07130/07658 | Screw | |
| 9 | 07130/07659 | Control lever | |
| 10 | 07130/07660 | Control lever | |
| 11 | 07130/07661 | Adjusting device | |
| 12 | 07130/07662 | Screw | |
| 13 | 07130/07663 | Nut | |
| 14 | 07130/07664 | Washer | |
| 15 | 07130/07665 | Handle | |
| 16 | 07130/07666 | Nut | |
| 17 | 07130/07667 | Piston | |
| 18 | 07130/07668 | Gasket | |
| 19 | 07130/07669 | Housing | |
| 20 | 07130/07670 | Needle bearing | |
| 21 | 07130/07671 | Needle bearing | |
| 22 | 07130/07672 | Cover | |
| 23 | 07130/07673 | Parallel pin | |
| 24 | 07130/07674 | Screw | |
| 25 | 07130/07675 | Gasket | |
| 26 | 07130/07676 | Gasket | |
| 27 | 07130/07677 | Screw | |
| 28 | 07130/07678 | Screw plug | |
| 29 | 04029/17443 | O-ring | |
| 30 | 07130/07681 | Screw plug | |
| 31 | 07130/07682 | Screw plug | |
| 32 | 07240/13315 | O-ring | |
| 33 | 07130/07684 | Valve | |
| 34 | 04029/17437 | O-ring | |
| 35 | 07130/07686 | Compression spring | |
| 36 | 07130/0768 7 | Spring retainer | |
| 37 | 07130/07688 | Gasket | |
| 38 | 07130/07689 | Screw plug | |
| 39 | 04030/67193 | Screw plug | |
| 40 | 07130/07690 | O-ring | |
| 41 | 04030/67219 | Screw plug | |
| 43 | 07130/07692 | Retaining ring | |
| 44 | 07130/07693 | Flange | |
| 45 | 07130/07694 | Parallel pin | |
| 46 | 07130/07695 | Clutch | |
| 47 | 07130/07696 | Valve plate | |
| 48 | 07130/07697 | Bearing | |
| 49 | 07130/07698 | Cover | |
| 50 | 07130/07699 | O-ring | |
| 51 | 07130/07700 | O-ring | |
| 52 | 07130/07701 | Gasket | |
| 53 | 07130/07702 | Screw | |
| 54 | 07130/07703 | Screw plug | |
| 55 | 07130/07704 | Gasket | |
| 56 | 07130/07705 | Compression spring | |
| 57 | 07130/07706 | Spring retainer | |
| 58 | 04034/17769 | O-ring | |
| 59 | 07130/07707 | Housing, cpl. | |
| 60 | 07130/07708 | Nut | |
| 61 | 07130/07709 | Parallel pin | |
| 62 | 04034/17704 | Parallel pin | |
| 64 | 07130/07711 | Piston ring | |
| 65 | 07130/07712 | O-ring | |
| 66 | 07130/07713 | Piston ring | |
| 67 | 07130/07714 | Valve | |
| 69 | 07130/07716 | Valve, cpl. | |
| 70 | 07130/07717 | Ring | |
| 71 | 07130/07718 | O-ring | |
| 72 | 07130/07719 | Cover | |
| 75 | 07130/07721 | Cover | |
| 77 | 07130/07723 | Cylinder block, cpl. | |
| 78 | 07130/07724 | Cylinder block | |
| 79 | 07130/07725 | Washer | |
| 80 | 07130/07726 | Compression spring | |
| 81 | 07130/07727 | Washer | |
| 82 | 07130/07728 | Retaining ring | |
| 83 | 07130/07729 | Pin | |
| 84 | 07130/07730 | Pin bracket | |
| 85 | 07130/07731 | Guide | |
| 86 | 07130/07732 | Bracket | |
| 87 | 07130/07733 | Piston, cpl. | |
| 88 | 07130/07734 | Valve plate | |
| 89 | 07130/07735 | Cradle | |
| 90 | 07130/07736 | Bearing | |
| 91 | 07130/07737 | Needle bearing | |
| 92 | 07130/07739 | Valve, cpl. | |
| 93 | 07130/07740 | Magnet | |
| 94 | 07130/07741 | Switch | |
| 97 | 07130/07679 | Spring | |
| 07130/07650 | 07130/07650 | Variable displacement hydro pump | |
| 07130/07651 | 07130/07651 | Kit, gasket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
