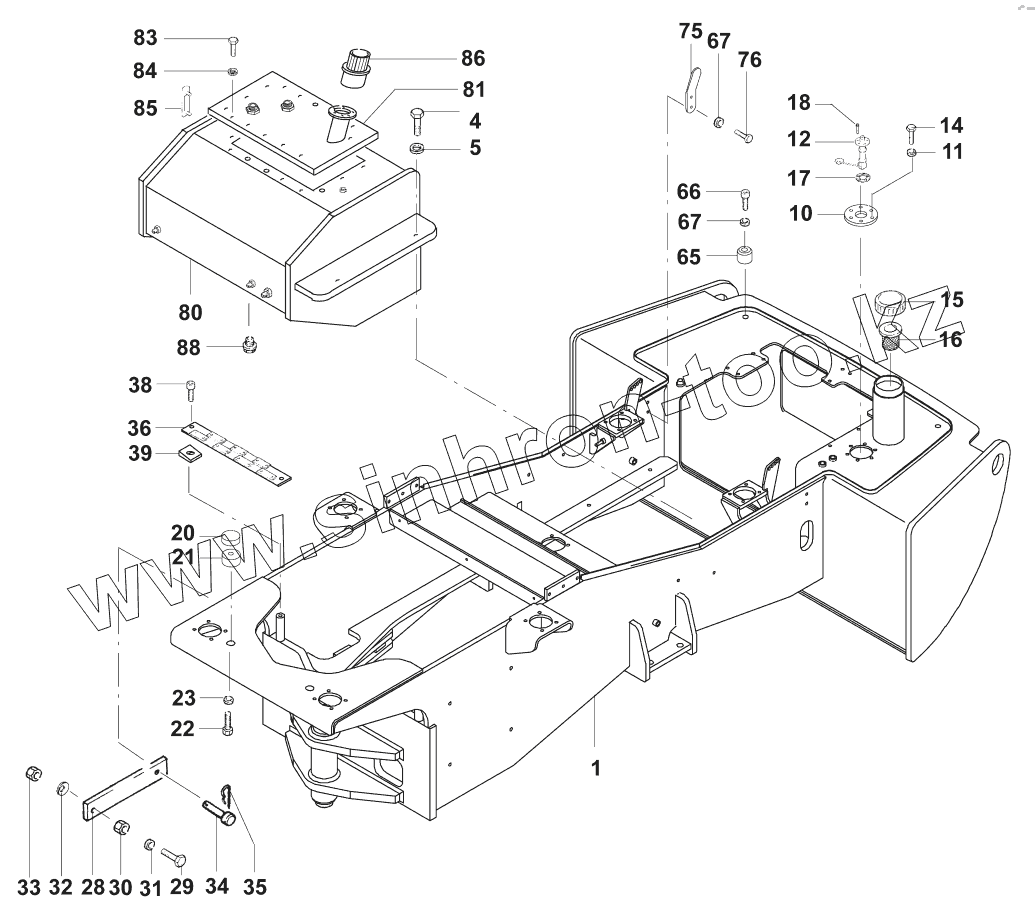

Каталог запасных частей к технике: JCB VM-75D/PD. Рама/Frame
1
4
5
10
11
12
14
15
16
17
18
20
21
22
23
28
29
30
31
32
33
34
35
36
38
39
65
66
67
67
75
76
80
81
83
84
85
86
88
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07222/12100 | Frame | |
| 4 | 02021/12050 | Hexagon screw M12x50 DIN933 | |
| 5 | 02201/00012 | Washer 13 DIN125 | |
| 10 | 07222/12161 | Cover | |
| 11 | 02113/00708 | Screw retaining device | |
| 12 | 08427/00010 | Transmitter | |
| 14 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 15 | 06730/08351 | Cover lid, cpl. | |
| 16 | 04029/15040 | Screen | |
| 17 | 08427/00011 | Gasket | |
| 18 | 02025/05016 | Cap screw M5x16 DIN7984 | |
| 20 | 02622/07525 | Stop buffer | |
| 21 | 07242/41204 | Spacer washer | |
| 22 | 02020/12055 | Hexagon screw M20x55 DIN931 | |
| 23 | 02200/00013 | Washer 13 DIN7349 | |
| 28 | 07221/11002 | Strap | |
| 29 | 02021/20070 | Hexagon screw M20x70 DIN933 | |
| 30 | 02110/00024 | Hexagon nut M24 DIN934 | |
| 31 | 02201/00020 | Washer 21 DIN125 | |
| 32 | 02806/00540 | Disc spring | |
| 33 | 02118/32000 | Security nut VM20 DIN980 | |
| 34 | 02445/20700 | Bolt | |
| 35 | 02940/02340 | Splint pin | |
| 36 | 07221/10380 | Fixing bar | |
| 38 | 02027/12030 | Cap screw M12x30 DIN912 | |
| 39 | 02201/00012 | Washer 13 DIN125 | |
| 65 | 07242/53516 | Stop buffer | |
| 66 | 02027/10045 | Cap screw M10x45 DIN912 | |
| 67 | 02201/00010 | Washer 10,5 DIN125 | |
| 75 | 07222/53235 | Guide | |
| 76 | 02021/10025 | Hexagon screw M10x25 DIN933 | |
| 80 | 07221/10310 | Hydraulic oil tank | |
| 81 | 07221/10320 | Cover lid | |
| 83 | 02021/08025 | Hexagon screw M8x25 DIN933 | |
| 84 | 02113/00708 | Screw retaining device | |
| 85 | 02612/00032 | Oil level indicator | |
| 86 | 02611/00160 | Filter | |
| 88 | 02506/20112 | Union | |
| 87222/10002 | 87222/10002 | Frame, cpl. |
