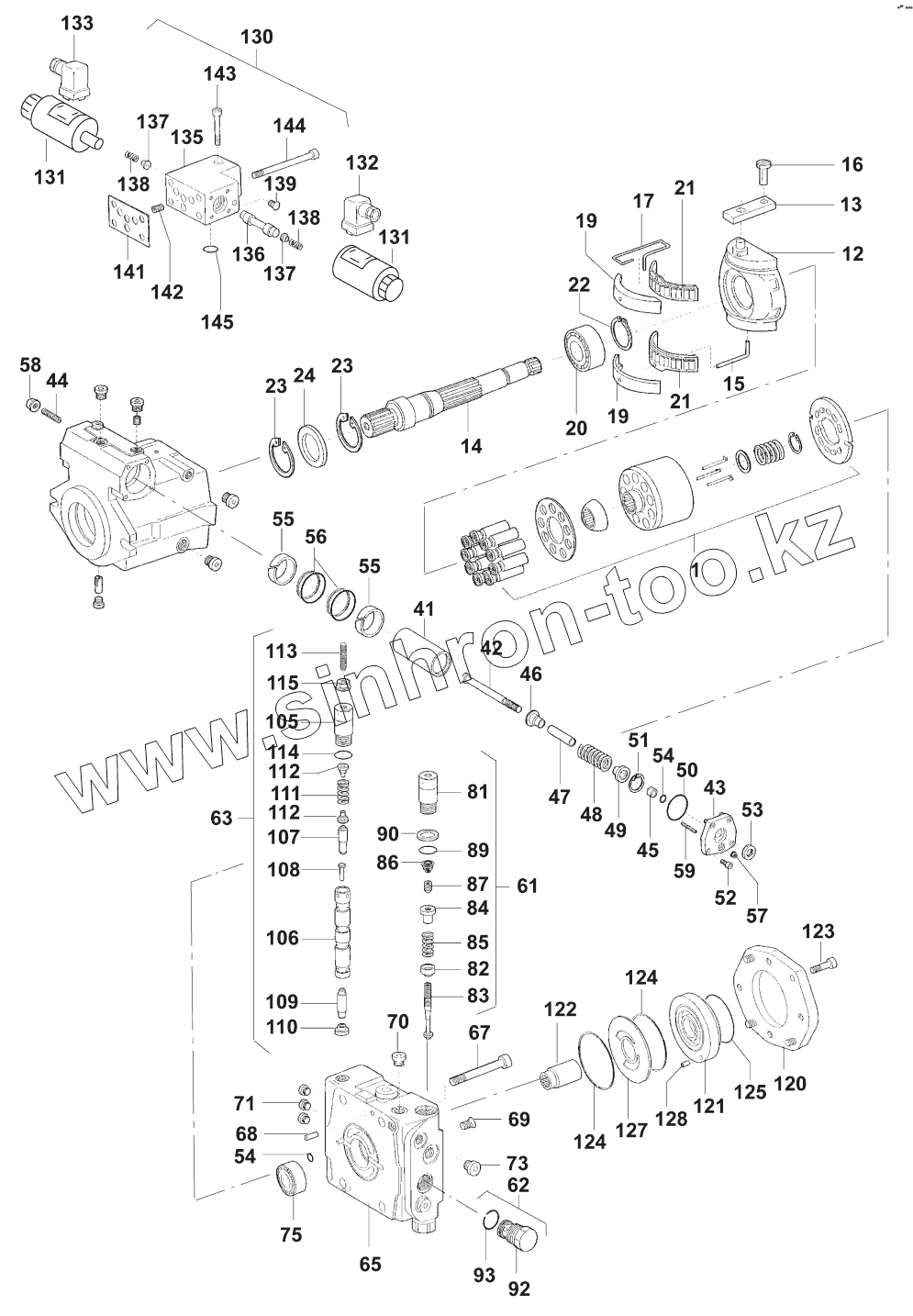

Каталог запасных частей к технике: JCB VM-75D/PD. Гидронасос/Vibration pump
1
12
13
14
15
16
17
19
19
20
21
21
22
23
23
24
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
55
56
57
58
59
61
62
63
65
67
68
69
70
71
73
75
81
82
83
84
85
86
87
89
90
92
93
105
106
107
108
109
110
111
112
112
113
114
115
120
121
122
123
124
124
124
124
125
127
128
130
131
131
132
133
135
136
137
137
138
138
139
141
142
143
144
145
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07221/50545 | Driving gear, hydraulically | |
| 12 | 07221/50546 | Bearing | |
| 13 | 07221/50547 | Sliding | |
| 14 | 07221/50548 | Shaft | |
| 15 | 04033/25607 | Wire | |
| 16 | 07221/50384 | Pin | |
| 17 | 07221/50549 | Wire | |
| 19 | 07221/50550 | Pair of bearing shells | |
| 20 | 04050/13418 | Cylindrical roller bearing | |
| 21 | 04033/25611 | Pair of cage | |
| 22 | 02305/00025 | Retaining ring 25x1,2 DIN471 | |
| 23 | 02304/10000 | Retaining ring | |
| 24 | 07221/50552 | Shaft seal ring | |
| 41 | 07221/50561 | Piston | |
| 42 | 07221/50562 | Rod | |
| 43 | 07221/50563 | Cover | |
| 44 | 04901/20179 | Headless screw | |
| 45 | 07221/50564 | Ring | |
| 46 | 07221/50565 | Spring retainer | |
| 47 | 07221/50567 | Spacer bushing | |
| 48 | 07221/50568 | Compression spring | |
| 49 | 07221/50569 | Spring retainer | |
| 50 | 07221/50570 | O-ring | |
| 51 | 07221/50571 | Retaining ring | |
| 52 | 04033/25572 | Cap screw | |
| 53 | 07221/50572 | Hexagon nut | |
| 54 | 04901/20357 | O-ring | |
| 55 | 07221/50573 | Guide ring | |
| 56 | 07221/50574 | Ring | |
| 57 | 04033/25682 | Nut | |
| 58 | 07221/50440 | Nut | |
| 59 | 07221/50575 | Headless screw | |
| 61 | 07221/50585 | Preesure relief valve | |
| 62 | 07221/50590 | Closure | |
| 63 | 07221/50595 | Valve | |
| 65 | 07221/50596 | Connection plate | |
| 67 | 02026/12070 | Cap screw | |
| 68 | 04901/20060 | Parallel pin | |
| 69 | 07241/20311 | Plug | |
| 70 | 04033/25727 | Screw plug | |
| 71 | 07221/50428 | Screw plug | |
| 73 | 04033/25573 | Screw plug | |
| 75 | 04902/20105 | Cylindrical roller bearing | |
| 81 | 07221/50598 | Screw plug | |
| 82 | 07221/50434 | Guide | |
| 83 | 07221/50435 | Levelling spindle | |
| 84 | 07221/50436 | Bracket | |
| 85 | 07221/50437 | Compression spring | |
| 86 | 04901/20071 | Compression spring | |
| 87 | 07221/50438 | Heandless screw | |
| 89 | 04033/25684 | O-ring | |
| 90 | 07221/50441 | Back-up ring | |
| 92 | 07221/50602 | Screw plug | |
| 93 | 04033/25684 | O-ring | |
| 105 | 07221/50603 | Screw plug | |
| 106 | 07221/50461 | Bushing | |
| 107 | 07221/50462 | Piston | |
| 108 | 07221/50463 | Piston | |
| 109 | 07221/50464 | Valve piston | |
| 110 | 07221/50605 | Guide | |
| 111 | 07221/50466 | Compression spring | |
| 112 | 07221/50467 | Spring retainer | |
| 113 | 07221/50468 | Adjusting screw | |
| 114 | 07221/50469 | O-ring | |
| 115 | 07221/50440 | Nut | |
| 120 | 07221/50615 | Intermediate flange | |
| 121 | 07221/50611 | Seal ring | |
| 122 | 07221/50612 | Shaft | |
| 123 | 07221/50484 | Cap screw | |
| 124 | 04901/20406 | O-ring | |
| 124 | 04901/20406 | O-ring | |
| 125 | 04901/20099 | O-ring | |
| 127 | 07221/50614 | Wear plate | |
| 128 | 07221/50487 | Parallel pin | |
| 130 | 07221/50652 | Valve housing, cpl. | |
| 131 | 07221/50655 | Magnet | |
| 132 | 08362/01010 | Plug socket | |
| 133 | 08362/01015 | Plug socket | |
| 135 | 07221/50656 | Valve housing | |
| 136 | 07221/50657 | Piston | |
| 137 | 07221/50658 | Spring retainer | |
| 138 | 04033/25758 | Compression spring | |
| 139 | 07210/17378 | Plug | |
| 141 | 07221/50494 | Gasket | |
| 142 | 07241/20311 | Plug | |
| 143 | 07221/50631 | Cap screw | |
| 144 | 07221/50632 | Cap screw | |
| 145 | 07210/17436 | O-ring | |
| 07221/50530 | 07221/50530 | Variable displacement pump |
