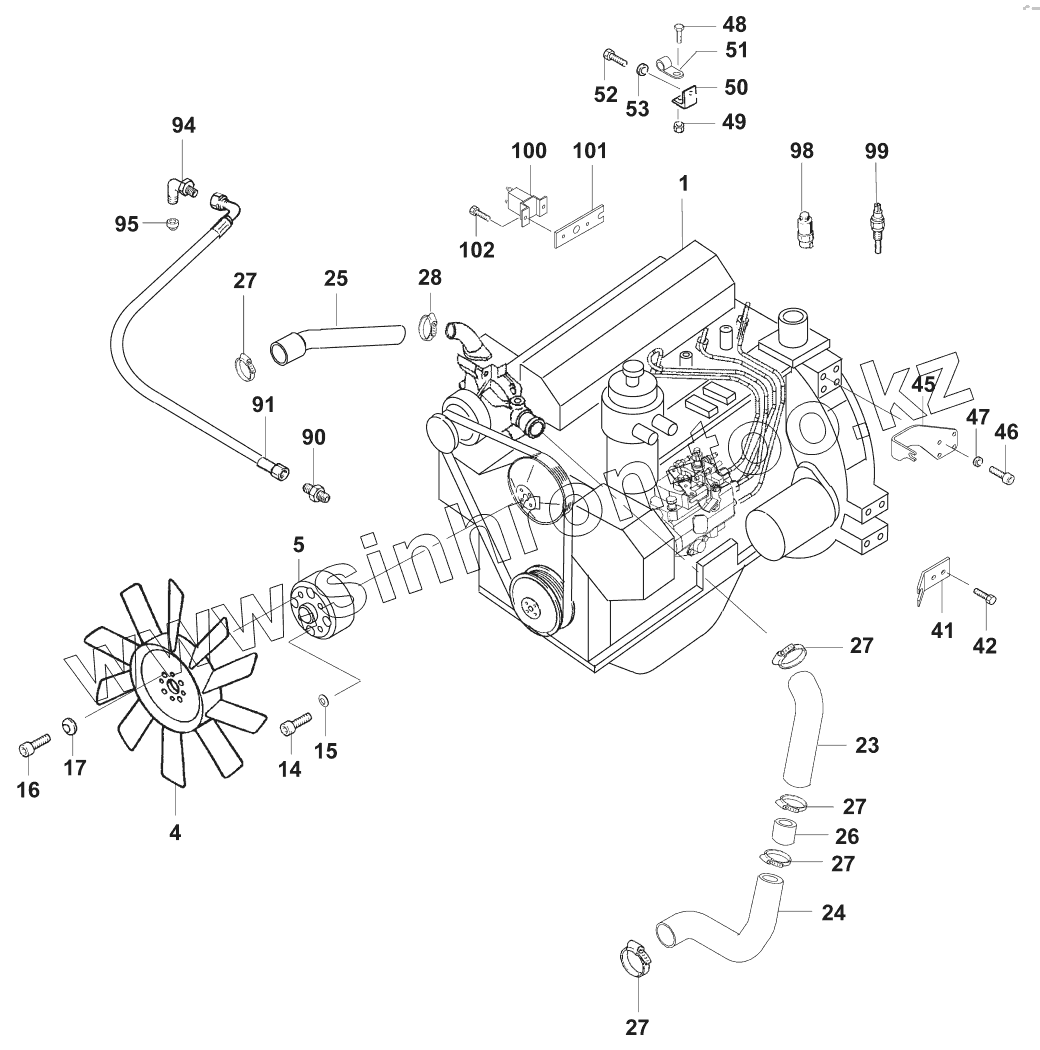

Каталог запасных частей к технике: JCB VM-46D/PD. Установка двигателя/Structure motor
1
4
5
14
15
16
17
23
24
25
26
27
27
27
27
27
28
41
42
45
46
47
48
49
50
51
52
53
90
91
94
95
98
99
100
101
102
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07211/50702 | Diesel engine | |
| 4 | 07221/50765 | Fan wheel | |
| 5 | 07211/50105 | Spacer piece | |
| 14 | 02027/08040 | Cap screw M8x40 DIN912 | |
| 15 | 02209/00009 | Washer | |
| 16 | 02027/08020 | Cap screw M8x20 DIN912 | |
| 17 | 02806/00516 | Disc spring | |
| 23 | 07211/50108 | Hose, lower | |
| 24 | 07211/50109 | Hose, lower | |
| 25 | 07221/53080 | Hose, upper | |
| 26 | 07211/50107 | Pipe | |
| 27 | 02322/00064 | Hose clamp | |
| 28 | 02323/00320 | Hose clamp | |
| 41 | 07222/50041 | Counter bracket | |
| 42 | 02021/08030 | Hexagon screw M8x30 DIN933 | |
| 45 | 07211/50106 | Bracket | |
| 46 | 02027/10025 | Cap screw M10x25 DIN912 | |
| 47 | 02201/00010 | Washer 10,5 DIN125 | |
| 48 | 02021/06020 | Hexagon screw M6x20 DIN933 | |
| 49 | 02118/30600 | Security nut VM6 DIN980 | |
| 50 | 04029/69079 | Fastening angle | |
| 51 | 02503/06113 | Pipe clip | |
| 52 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 53 | 02201/00008 | Washer 8,4 DIN125 | |
| 90 | 02521/10315 | Nipple | |
| 91 | 02883/39349 | Hose 700mm | |
| 94 | 02522/23215 | Nipple | |
| 95 | 02528/00415 | Screw plug | |
| 98 | 08105/00101 | Switch | |
| 99 | 08500/01116 | Transmitter | |
| 100 | 07240/63150 | Switch magnetic | |
| 101 | 07242/63154 | Bracket | |
| 102 | 02021/06016 | Hexagon screw M6x16 DIN933 | |
| 87211/50003 | 87211/50003 | Structure motor, cpl. |
