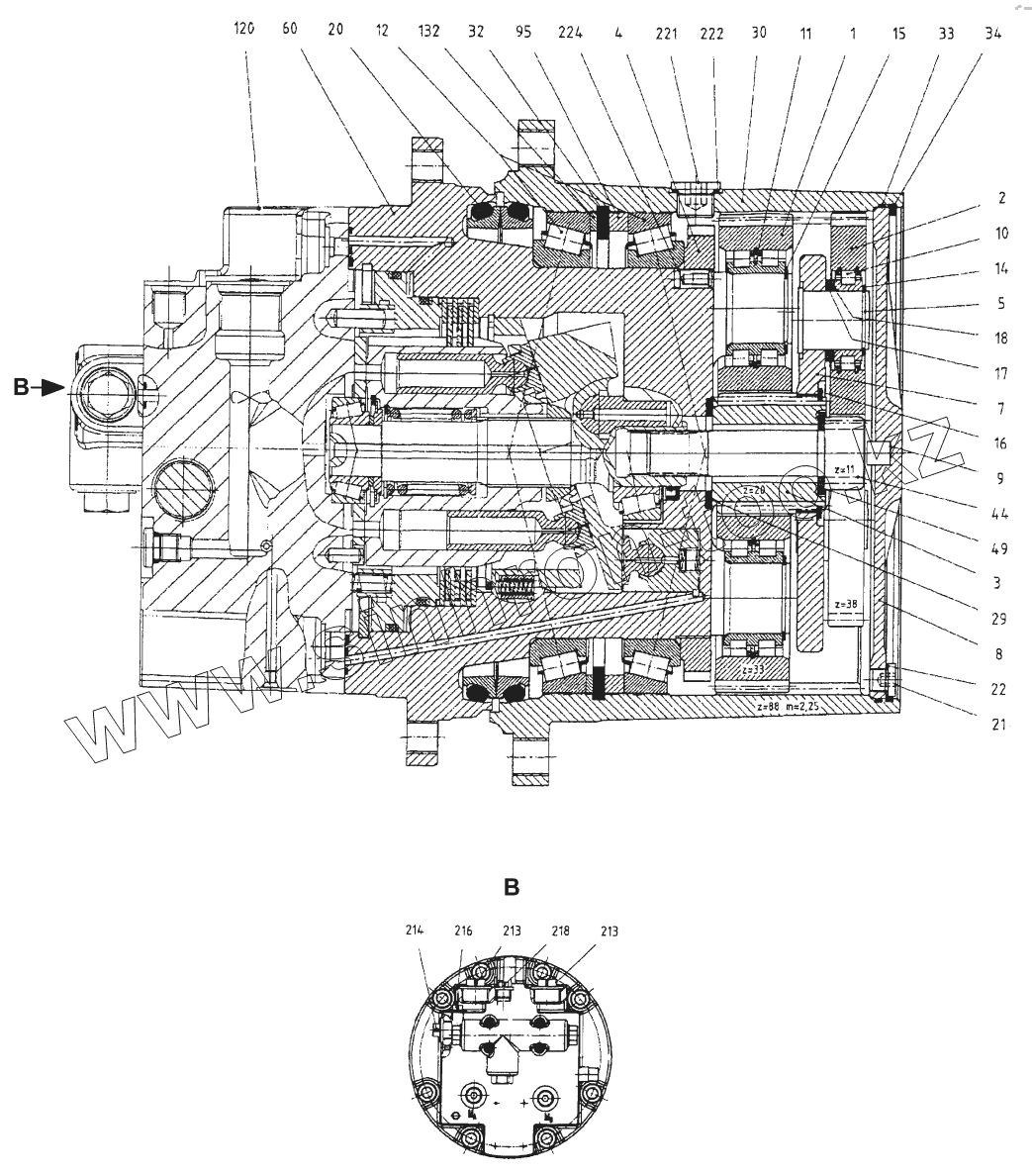

Каталог запасных частей к технике: JCB VM-46D/PD. Редуктор/Gear
1
2
3
4
5
7
8
9
10
11
12
14
15
16
17
18
20
21
22
29
30
32
33
34
44
49
60
95
120
221
222
224
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07211/20720 | Planet gear | |
| 2 | 07211/20721 | Planet gear | |
| 3 | 07211/20722 | Sun gear | |
| 4 | 07211/20723 | Shaft nut | |
| 5 | 07262/20346 | Bolt | |
| 7 | 07211/20724 | Planet carrier | |
| 8 | 07211/20725 | Cover | |
| 9 | 07211/20730 | Cylinder roller | |
| 10 | 07262/20349 | Cylindrical roller bearing | |
| 11 | 07211/20731 | Cylindrical roller bearing | |
| 12 | 07211/20732 | Tapered roller bearing | |
| 14 | 02305/00025 | Retaining ring 25x1,2 DIN471 | |
| 15 | 02305/00030 | Retaining ring 30x1,5 DIN471 | |
| 16 | 07211/20736 | Retaining ring 48x1,75 DIN471 | |
| 17 | 02306/003025 | Support disk 25x35x2 | |
| 18 | 07211/20737 | Shim 25x35x1,5 | |
| 20 | 07211/20738 | Axial face seal | |
| 21 | 02506/01010 | Screw plug M10x1 DIN908 | |
| 22 | 02766/01013 | Seal ring A10x13,5 DIN 7603 | |
| 29 | 07211/207239 | Housing washer | |
| 30 | 07211/20740 | Ring gear | |
| 32 | 07211/20743 | Retaining ring 205x5 DIN472 | |
| 33 | 07211/20744 | O-ring 210x2 | |
| 34 | 07211/20745 | Snap ring | |
| 44 | 07211/20746 | Sun gear shaft | |
| 49 | 07211/20747 | Thrust washer | |
| 60 | 07211/20750 | Spindle | |
| 95 | 07211/20751 | Intermediate ring | |
| 120 | 07211/20755 | Hydro motor | |
| 213 | 07211/20756 | Seal screw | |
| 214 | 07211/20757 | Seal screw | |
| 216 | 07211/20758 | Seal screw | |
| 218 | 07211/20759 | Seal screw | |
| 221 | 02506/01615 | Screw plug M16x1,5 DIN908 | |
| 222 | 02766/01620 | Seal ring 16x20x1,5 DIN7603 | |
| 224 | 07211/20760 | Parallel pin | |
| 07211/20700 | 07211/20700 | Gear |
