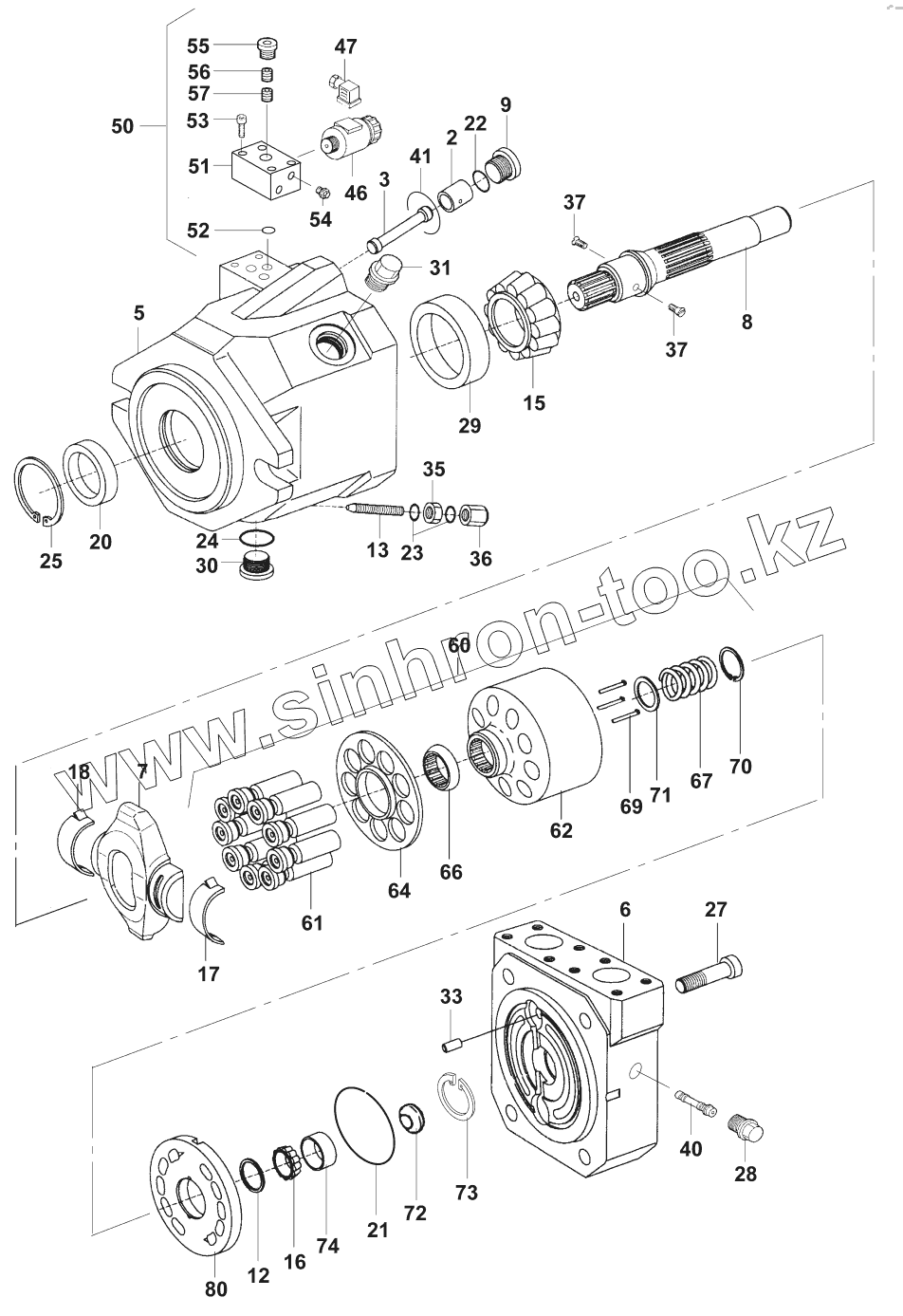

Каталог запасных частей к технике: JCB VM-46D/PD. Гидромотор/Variable displacement motor
2
3
5
6
7
8
9
12
13
15
16
17
18
20
21
22
23
24
25
27
28
29
30
31
33
35
36
37
37
40
41
46
47
50
51
52
53
54
55
56
57
60
61
62
64
66
67
69
70
71
72
73
74
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 07222/30431 | Piston | |
| 3 | 07222/30432 | Piston rod | |
| 5 | 07222/30433 | Housing | |
| 6 | 07222/30434 | Plate | |
| 7 | 07222/30435 | Valve | |
| 8 | 07222/30459 | Shaft | |
| 9 | 07222/30436 | Screw plug | |
| 12 | 07222/30437 | Disc | |
| 13 | 07222/30438 | Screw | |
| 15 | 07222/30439 | Roller bearing | |
| 16 | 07222/30440 | Roller bearing | |
| 17 | 07222/30441 | Bearing shells | |
| 18 | 07222/30442 | Bearing shells | |
| 20 | 07222/30425 | Shaft seal ring | |
| 21 | 07222/30443 | O-ring | |
| 22 | 07222/30444 | O-ring | |
| 23 | 07222/30445 | O-ring | |
| 24 | 07222/30446 | Seal ring | |
| 25 | 07222/30447 | Retaining ring | |
| 27 | 07222/30448 | Cap screw M14x60 DIN912 | |
| 28 | 07222/30449 | Screw plug | |
| 29 | 07222/30450 | Ring | |
| 30 | 07222/30451 | Screw plug | |
| 31 | 07222/30452 | Plug | |
| 33 | 07222/30453 | Parallel pin | |
| 35 | 07222/30454 | Nut | |
| 36 | 07222/30455 | Nut | |
| 37 | 07222/30456 | Countersunk bolt M5x16 DIN7991 | |
| 40 | 07222/30457 | Valve | |
| 41 | 07222/30458 | Ring | |
| 46 | 07222/30410 | Way valve, cpl. | |
| 47 | 08362/01015 | Plug socket | |
| 50 | 07222/30460 | Housing, cpl. | |
| 51 | 07222/30461 | Housing | |
| 52 | 07225/20624 | O-ring | |
| 53 | 07222/30462 | Cap screw M6x40 DIN912 | |
| 54 | 07222/30463 | Plug | |
| 55 | 07222/30449 | Screw plug | |
| 56 | 07241/20297 | Screw | |
| 57 | 07241/20298 | Screw | |
| 60 | 07222/30485 | Driving gear | |
| 61 | 07222/30470 | Piston, kpl. | |
| 62 | 07222/30471 | Cylinder | |
| 64 | 07222/30472 | Plate | |
| 66 | 07222/30473 | Ball | |
| 67 | 07222/30474 | Compression spring | |
| 69 | 07222/30475 | Pin | |
| 70 | 07222/30476 | Retaining ring | |
| 71 | 07222/30477 | Supporting ring | |
| 72 | 07222/30478 | Disc spring | |
| 73 | 07222/30479 | Retaining ring | |
| 74 | 07222/30480 | Adjusting device | |
| 80 | 07222/30486 | Connection plate | |
| 07222/30400 | 07222/30400 | Variable displacement motor, cpl. | |
| 07222/30401 | 07222/30401 | Sealing kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
