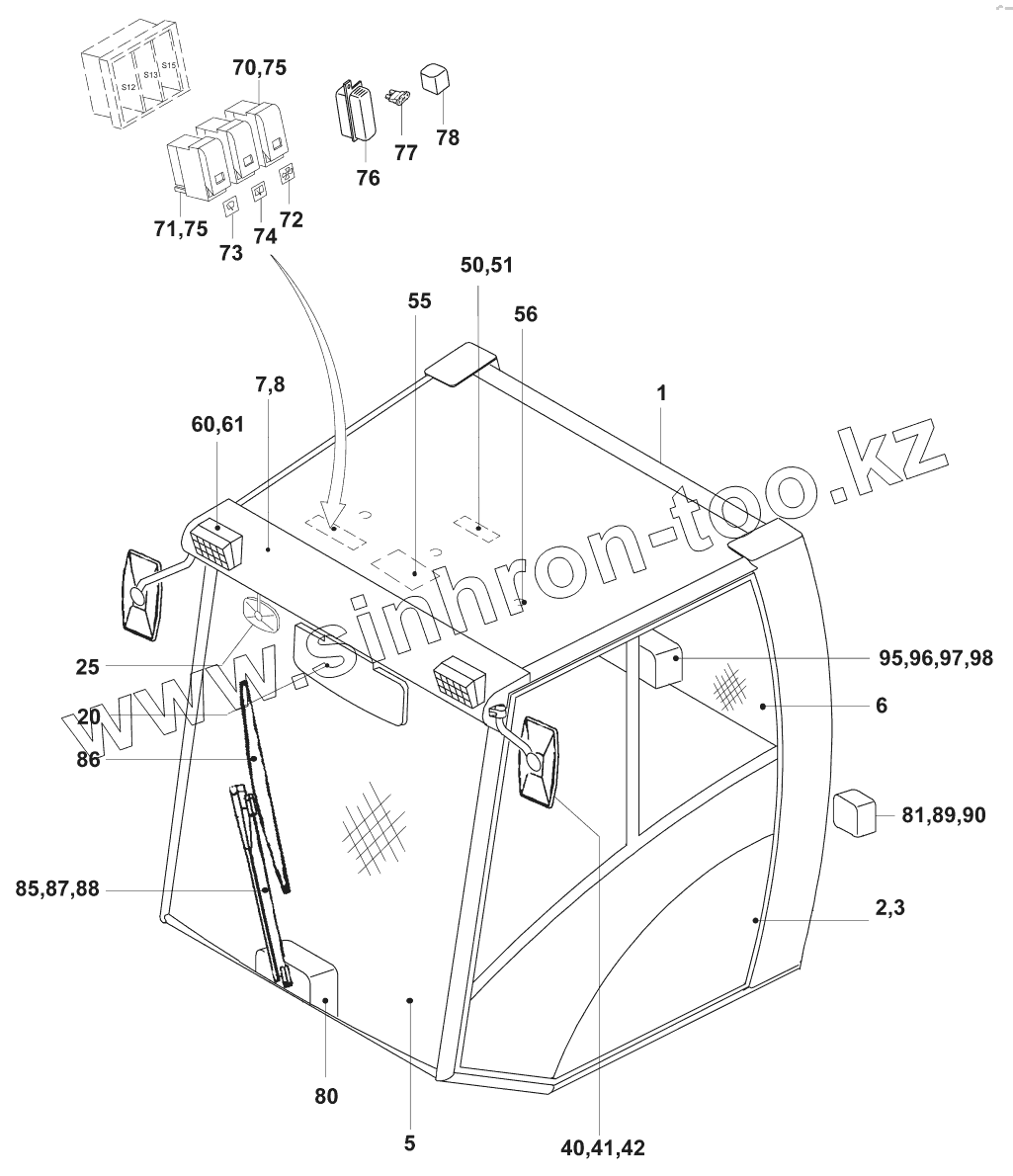

Каталог запасных частей к технике: JCB VM-200D/PD. Кабина
1
2
3
5
6
7
8
20
25
40
41
42
50
51
55
56
60
61
70
71
72
73
74
75
75
76
77
78
80
81
85
86
87
88
89
90
95
96
97
98
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07242/96100 | Cab | |
| 2 | 07242/96160 | Door left, cpl. | |
| 3 | 07242/96161 | Door right, cpl. | |
| 5 | 07242/96101 | Glass, cab | |
| 6 | 07242/96105 | Glass | |
| 7 | 07242/96135 | Cover | |
| 8 | 07242/96131 | Cartridge | |
| 20 | 07242/96147 | Sun visor | |
| 25 | 07242/96125 | Mirror | |
| 40 | 07242/96126 | Mirror | |
| 41 | 07242/96127 | Rod | |
| 42 | 07242/96128 | Hose 0,05m | |
| 50 | 07242/96108 | Internal lamp | |
| 51 | 08420/03008 | Bulb | |
| 55 | 07242/96130 | Fan 12V | |
| 56 | 07242/96133 | Nozzle | |
| 60 | 07242/96106 | Headlamp | |
| 61 | 08420/03025 | Bulb | |
| 70 | 07242/96167 | Switch | |
| 71 | 07242/96168 | Switch | |
| 72 | 07242/96169 | Decal - Fan | |
| 73 | 07242/96170 | Decal - Windscreen wiper | |
| 74 | 07242/96171 | Decal - Windscreen wiper | |
| 75 | 08102/02547 | Bulb | |
| 76 | 08412/05008 | Fuse box | |
| 77 | 08412/05050 | Insert 5A | |
| 78 | 08121/01033 | Relay | |
| 80 | 07242/96140 | Windscreen wiper system, front 12V | |
| 81 | 07242/96146 | Water tank and Pump | |
| 85 | 07242/96103 | Windscreen wiper arm, front 700mm | |
| 86 | 07242/96104 | Windscreen wiper blade, front 700mm | |
| 87 | 07242/96142 | Nozzle | |
| 88 | 07242/96141 | Nipple | |
| 89 | 07242/96144 | Check valve | |
| 90 | 07242/96145 | Hose 5m | |
| 95 | 07242/96210 | Windscreen wiper motor, rear 12V | |
| 96 | 07242/96211 | Windscreen wiper arm, rear 300-400mm | |
| 97 | 07242/96212 | Windscreen wiper blade, rear 350mm | |
| 98 | 07242/96213 | Hose 0,5m | |
| 07242/96001 | 07242/96001 | ROPS-Cab, cpl. | |
| 07242/96122 | 07242/96122 | Sealing tape 5,5m | |
| 07242/96195 | 07242/96195 | Bottem mat | |
| 07242/96196 | 07242/96196 | Bottem mat |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
