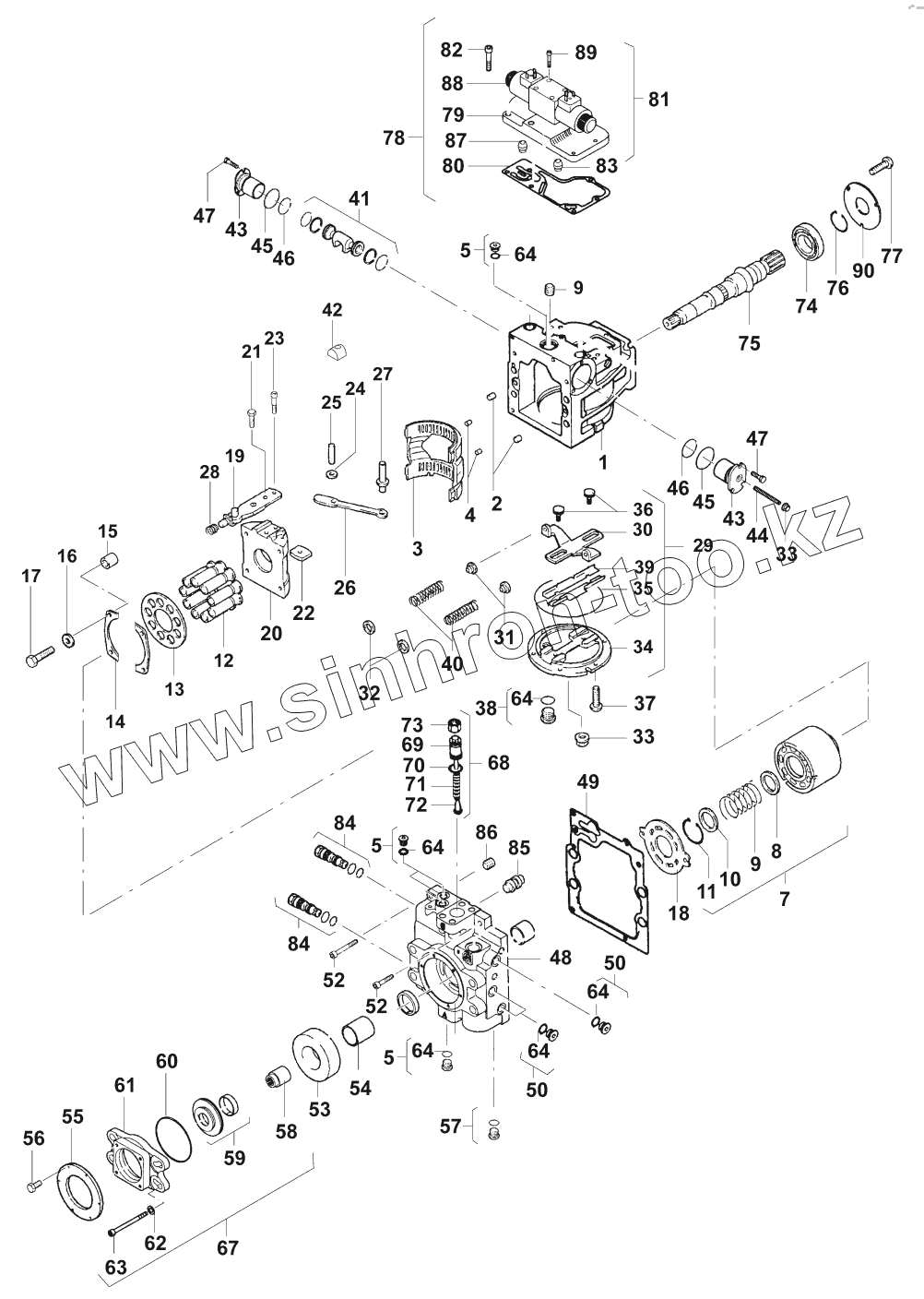

Каталог запасных частей к технике: JCB VM-200D/PD. Гидронасос
1
2
3
4
5
5
5
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
43
44
45
45
46
46
47
47
48
49
50
50
52
52
53
54
55
56
57
58
59
60
61
62
63
64
64
64
64
64
64
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
83
84
84
85
86
88
89
90
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07260/60801 | Housing | |
| 2 | 04030/67142 | Pin | |
| 3 | 07240/60603 | Bearing | |
| 4 | 04029/16311 | Parallel pin | |
| 5 | 04030/67226 | Screw plug, cpl. | |
| 6 | 04030/67145 | Filter | |
| 7 | 07240/60604 | Cylinder block | |
| 8 | 07260/10205 | Washer | |
| 9 | 07260/10206 | Compression spring | |
| 10 | 07260/10207 | Spring retainer | |
| 11 | 07260/10208 | Retaining ring | |
| 12 | 07240/60609 | Piston, cpl. | |
| 13 | 07240/60610 | Bracket | |
| 14 | 07240/60611 | Guide | |
| 15 | 07260/60802 | Sleeve | |
| 16 | 04030/67155 | Washer | |
| 17 | 07250/60513 | Hexagon screw | |
| 18 | 07260/60804 | Valve plate | |
| 19 | 07260/60805 | Control lever | |
| 20 | 07260/60806 | Cradie | |
| 21 | 04034/17714 | Hexagon screw | |
| 22 | 04034/17715 | Guide | |
| 23 | 04034/17716 | Cap screw | |
| 24 | 04034/17717 | Disc | |
| 25 | 04034/17718 | Spring type straight pin | |
| 26 | 04034/17719 | Bow | |
| 27 | 04034/17720 | Bolt | |
| 28 | 04034/17721 | Compression spring | |
| 29 | 07260/60807 | Cover, cpl. | |
| 30 | 07260/60808 | Lever | |
| 31 | 07260/60809 | Spring retainer | |
| 32 | 04034/17725 | Washer | |
| 33 | 04030/67135 | Nut | |
| 34 | 07260/60810 | Cover | |
| 35 | 07260/60811 | O-ring | |
| 36 | 07250/60527 | Screw | |
| 37 | 07260/60812 | Hexagon screw | |
| 38 | 04030/67193 | Screw plug | |
| 39 | 07260/60813 | Plate | |
| 40 | 07260/60814 | Compression spring | |
| 41 | 07260/60815 | Piston | |
| 42 | 04034/17736 | Sliding piece | |
| 43 | 07260/60816 | Cylinder | |
| 44 | 04030/67180 | Pin | |
| 45 | 07260/60817 | O-ring | |
| 46 | 07250/60552 | Hexagon screw | |
| 47 | 07260/60819 | Hexagon screw | |
| 48 | 07260/60840 | Housing, cpl. | |
| 49 | 07260/60820 | Gasket | |
| 50 | 04030/67219 | Screw plug | |
| 52 | 07250/60555 | Cap screw | |
| 53 | 07260/60822 | Spacer ring | |
| 54 | 07250/60559 | Shaft | |
| 55 | 04030/67192 | Holder ring | |
| 56 | 04030/67183 | Hexagon screw | |
| 57 | 04034/17756 | Screw plug | |
| 58 | 07260/60824 | Coupling sleeve | |
| 59 | 07240/60670 | Cover, cpl. | |
| 60 | 02772/90111 | O-ring | |
| 61 | 07250/50807 | Adaptor | |
| 62 | 07250/60562 | Washer | |
| 63 | 07260/60827 | Cap screw | |
| 64 | 02772/90024 | O-ring | |
| 67 | 07260/60828 | Cylnder-mounting set | |
| 68 | 04034/17767 | Valve, cpl. | |
| 69 | 04034/17768 | Adjusting screw, cpl. | |
| 70 | 04200/19216 | O-ring | |
| 71 | 04901/10371 | Compression spring | |
| 72 | 04901/10372 | Poppet, valve | |
| 73 | 07240/13345 | Nut | |
| 74 | 07260/60829 | Cylindrical roller bearing | |
| 75 | 07260/60830 | Shaft | |
| 76 | 07240/60685 | Retaining ring | |
| 77 | 04029/16332 | Cap screw | |
| 78 | 07260/60831 | Valve | |
| 79 | 07260/60832 | Connection plate | |
| 80 | 07250/60571 | Gasket | |
| 81 | 07260/60834 | Adjusting device | |
| 82 | 04901/10384 | Cap screw | |
| 83 | 07260/60835 | Nozzle | |
| 84 | 04901/10387 | Valve | |
| 85 | 04901/10388 | Check valve | |
| 86 | 04901/10389 | Plug | |
| 88 | 07250/50813 | Valve | |
| 89 | 04033/28600 | Cap screw | |
| 90 | 07260/10232 | Thrust washer | |
| 07240/60601 | 07240/60601 | Kit, gasket | |
| 07260/60800 | 07260/60800 | Vibration pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
