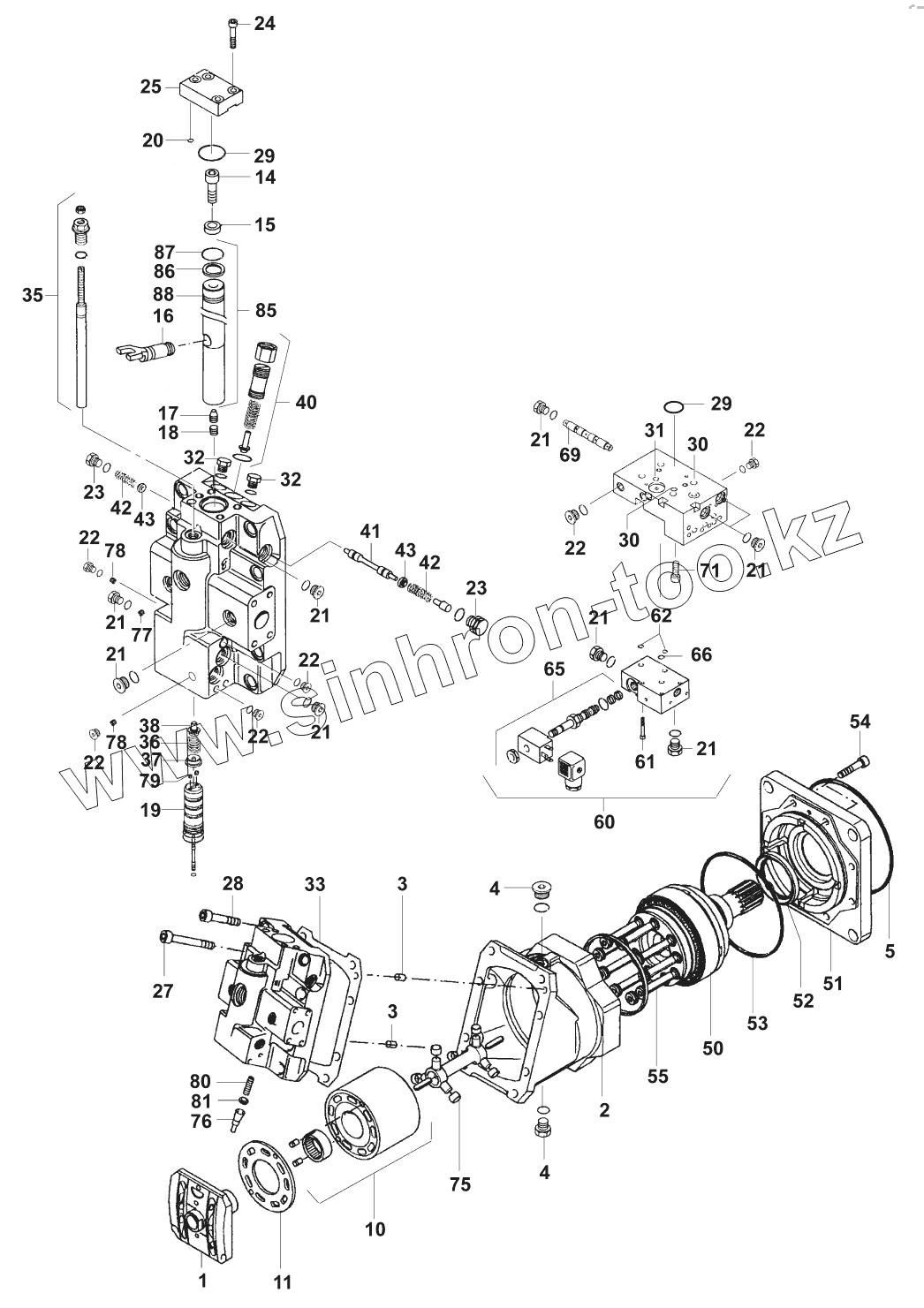

Каталог запасных частей к технике: JCB VM-200D/PD. Гидромотор
1
2
3
3
4
4
5
10
11
14
15
16
17
18
19
20
21
21
21
21
21
21
21
21
22
22
22
22
22
22
23
23
24
25
27
28
29
29
30
30
31
32
32
33
35
36
37
38
40
41
42
42
43
43
50
51
52
53
54
55
60
61
62
65
66
69
71
75
76
77
78
78
79
80
81
85
86
87
88
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07261/30305 | Valve | |
| 2 | 07261/30306 | Housing | |
| 3 | 04029/16311 | Parallel pin | |
| 4 | 04034/17756 | Screw plug | |
| 5 | 04032/15253 | O-ring | |
| 10 | 07261/30307 | Cylinder block | |
| 11 | 07261/30308 | Bracket | |
| 14 | 04029/67343 | Cap screw | |
| 15 | 07261/30310 | Ring | |
| 16 | 07261/30311 | Driver | |
| 17 | 07240/13311 | Headless screw | |
| 18 | 07240/13312 | Headless screw | |
| 19 | 07240/13314 | Valve, compl. | |
| 20 | 07240/13325 | Plain compression ring | |
| 21 | 04030/67226 | Screw plug, cpl. | |
| 22 | 07240/13320 | Screw plug, cpl. | |
| 23 | 07250/10223 | Screw plug, cpl. | |
| 24 | 07240/13318 | Cap screw | |
| 25 | 07261/30315 | Cover, cpl. | |
| 27 | 07261/30316 | Cap screw | |
| 28 | 04032/15261 | Cap screw | |
| 29 | 07261/30317 | O-ring | |
| 30 | 07240/13325 | Plain compression ring | |
| 31 | 07240/13326 | Plain compression ring | |
| 32 | 07240/13327 | Screw plug, cpl. | |
| 33 | 07261/30318 | Gasket | |
| 35 | 07261/30320 | Adjusting screw | |
| 36 | 07261/30321 | Compression spring | |
| 37 | 07240/13332 | Spring retainer | |
| 38 | 07261/30322 | Spring retainer | |
| 40 | 07261/30323 | Valve | |
| 41 | 07261/30324 | Piston | |
| 42 | 07261/30325 | Compression spring | |
| 43 | 07260/10225 | Spring retainer | |
| 50 | 07261/30327 | Shaft, cpl. | |
| 51 | 07261/30328 | Flange | |
| 52 | 04032/15266 | Shaft seal ring | |
| 53 | 07261/30329 | O-ring | |
| 54 | 07261/30330 | Cap screw | |
| 55 | 07261/30335 | Piston, cpl. | |
| 60 | 07240/13350 | Adjusting device, cpl. | |
| 61 | 07240/13351 | Cap screw | |
| 62 | 07240/13352 | O-ring | |
| 65 | 07240/13353 | Way valve, cpl. | |
| 66 | 07240/13354 | O-ring | |
| 69 | 07240/13356 | Slider | |
| 71 | 07261/30336 | Cap screw | |
| 75 | 07261/30337 | Joint, cpl. | |
| 76 | 07240/13372 | Protective cap | |
| 77 | 07240/13355 | Nozzle | |
| 78 | 07240/13362 | Nozzle | |
| 79 | 07240/13366 | Nozzle | |
| 80 | 07261/30338 | Headless screw | |
| 81 | 04032/15271 | Nut | |
| 85 | 07261/30339 | Piston, cpl. | |
| 86 | 07261/30340 | Ring | |
| 87 | 07261/30341 | O-ring | |
| 88 | 07261/30342 | Piston | |
| 07261/30300 | 07261/30300 | Variable displacement motor | |
| 07261/30301 | 07261/30301 | Sealing kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
