Каталог запасных частей к технике: JCB VM-1500-1601100. Верхняя часть
1
3
4
5
5
25
30
35
36
37
38
38
38
39
39
39
40
41
42
42
43
43
44
45
46
51
55
69
70
77
78
79
80
81
82

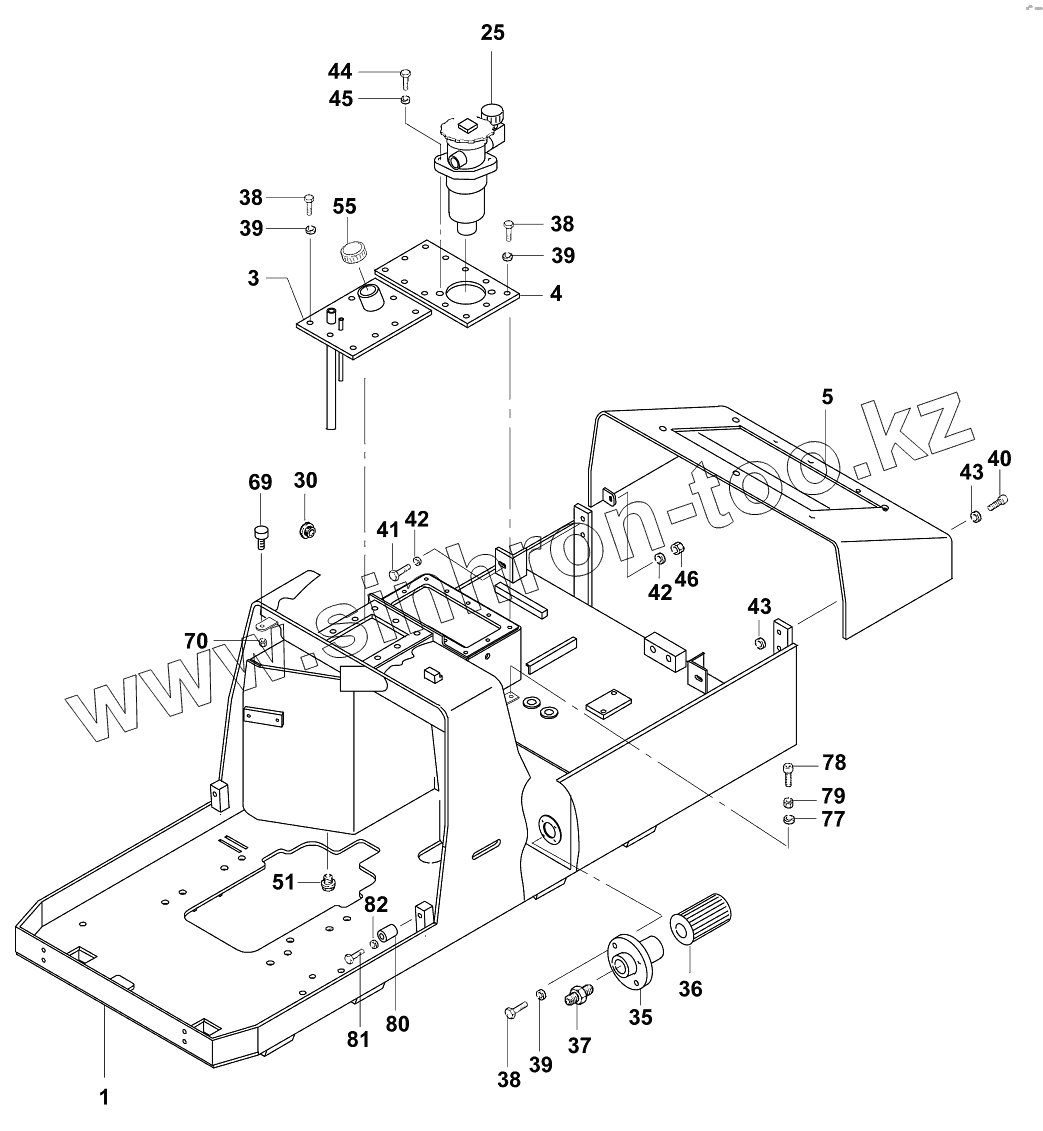

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 05731/20150 | Base plate, cpl. | |
| 3 | 05731/20240 | Cover lid, cpl. | |
| 4 | 05731/20261 | Cover lid | |
| 5 | 05731/20280 | Cover, cpl. | |
| 5 | 05731/20290 | Cover, cpl. | |
| 25 | 02611/00260 | Return flow filter | |
| 30 | 02612/00009 | Oil level indicator | |
| 35 | 05731/22150 | Nipple | |
| 36 | 02611/00230 | Filter | |
| 37 | 02521/01228 | Nipple | |
| 38 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 39 | 02208/00108 | Washer 8 DIN6796 | |
| 40 | 02025/10025 | Cap screw M10x25 DIN7984 | |
| 41 | 02021/08035 | Hexagon screw M8x35 DIN933 | |
| 42 | 02208/00108 | Washer 8 DIN6796 | |
| 43 | 02200/00010 | Washer 10,5 DIN7349 | |
| 44 | 02021/10040 | Hexagon screw M10x40 DIN933 | |
| 45 | 02208/00110 | Washer 10 DIN6796 | |
| 46 | 02118/40800 | Security nut NM 8 DIN980 | |
| 51 | 02506/22215 | Screw plug | |
| 55 | 04021/16021 | Closure | |
| 69 | 02622/05025 | Rubber pad | |
| 70 | 02118/40800 | Security nut NM 8 DIN980 | |
| 77 | 02208/00106 | Washer 6 DIN6796 | |
| 78 | 02027/16040 | Cap screw M16x40 DIN912 | |
| 79 | 02110/00016 | Hexagon nut M16 DIN934 | |
| 80 | 05731/20545 | Rubber | |
| 81 | 02020/10060 | Hexagon screw M10x60 DIN931 | |
| 82 | 02201/00010 | Washer 10,5 DIN125 | |
| 85731/20010 | 85731/20010 | Upper section | |
| 85731/20550 | 85731/20550 | Engine hood, cpl. | |
| 85731/20600 | 85731/20600 | Cover, cpl. | |
| 85731/20700 | 85731/20700 | Switching device | |
| 85731/20710 | 85731/20710 | Control system, cpl. | |
| 85731/20755 | 85731/20755 | Control system, cpl. | |
| 85731/21001 | 85731/21001 | Structure motor, cpl. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
