Каталог запасных частей к технике: JCB VM-1500-1601100. Электрооборудование
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
18
19
20
21
21
22
23
24
25
26
27
28
30
35
40
45
46
50
51
55
56
60
61
61
62
62
65
66
67
70
71
72
73

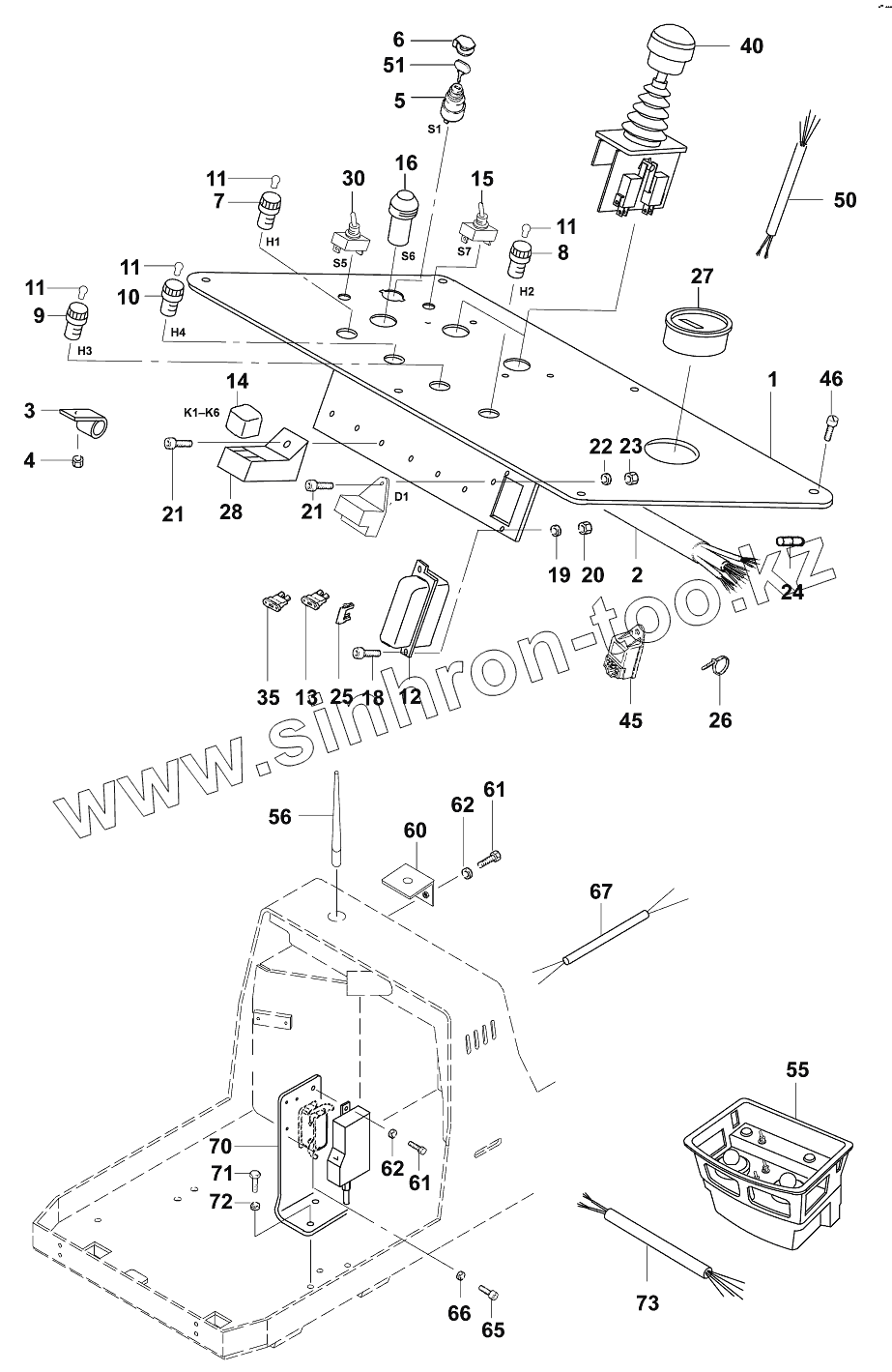

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 05731/82170 | Instrument panel, cpl. | |
| 2 | 05731/82105 | Cable harness | |
| 3 | 02503/06119 | Pipe clip | |
| 4 | 02118/40800 | Security nut NM 8 DIN980 | |
| 5 | 08102/02015 | Switch lock | |
| 6 | 08102/01992 | Cover | |
| 7 | 08422/06065 | Lamp | |
| 8 | 08422/06067 | Lamp | |
| 9 | 08422/06068 | Lamp | |
| 10 | 08422/06073 | Lamp | |
| 11 | 08420/03003 | Bulb | |
| 12 | 08412/05008 | Fuse box | |
| 13 | 08412/05150 | Insert 15A | |
| 14 | 08121/01025 | Relay | |
| 15 | 08102/02163 | Switch | |
| 16 | 08102/02237 | Pressure switch | |
| 18 | 02025/04012 | Cap screw M4x12 DIN7984 | |
| 19 | 02201/00004 | Washer 4,3 DIN125 | |
| 20 | 02110/00004 | Hexagon nut M4 DIN934 | |
| 21 | 02025/05016 | Cap screw M5x16 DIN7984 | |
| 22 | 02201/00005 | Washer 5,3 DIN125 | |
| 23 | 02110/00005 | Hexagon nut M5 DIN934 | |
| 24 | 08230/01132 | Diode, cpl. | |
| 25 | 08412/05001 | Bridge | |
| 26 | 02322/00021 | Hose clip | |
| 27 | 08500/01011 | Indicator | |
| 28 | 08121/01026 | Mounting base | |
| 30 | 08102/02164 | Switch | |
| 35 | 08412/05100 | Insert 10A | |
| 40 | 08107/01360 | Joystick | |
| 45 | 07001/33440 | Relay | |
| 46 | 02099/06014 | Screw | |
| 50 | 05731/82175 | Cable harness | |
| 51 | 08102/01998 | Key | |
| 55 | 05731/80221 | Control system | |
| 56 | 05731/80218 | Antenna | |
| 60 | 05731/82114 | Angle | |
| 61 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 62 | 02208/00108 | Washer 8 DIN6796 | |
| 65 | 02023/04016 | Cap screw M4x16 DIN84 | |
| 66 | 02201/00004 | Washer 4,3 DIN125 | |
| 67 | 05731/82211 | Cable harness | |
| 70 | 05731/80203 | Bracket | |
| 71 | 02021/10030 | Hexagon screw M10x30 DIN933 | |
| 72 | 02208/00110 | Washer 10 DIN6796 | |
| 73 | 05731/82506 | Cable harness | |
| 551 | 05731/80225 | Seat belt | |
| 552 | 05731/80226 | Seat belt | |
| 05731/80210 | 05731/80210 | Supercharger 220V | |
| 05731/80211 | 05731/80211 | Supercharger 115V | |
| 05731/80212 | 05731/80212 | Supercharger 12-24V | |
| 05731/80213 | 05731/80213 | Accumulator 7,2V | |
| 05731/82150 | 05731/82150 | Elektric Instrument panel F |
