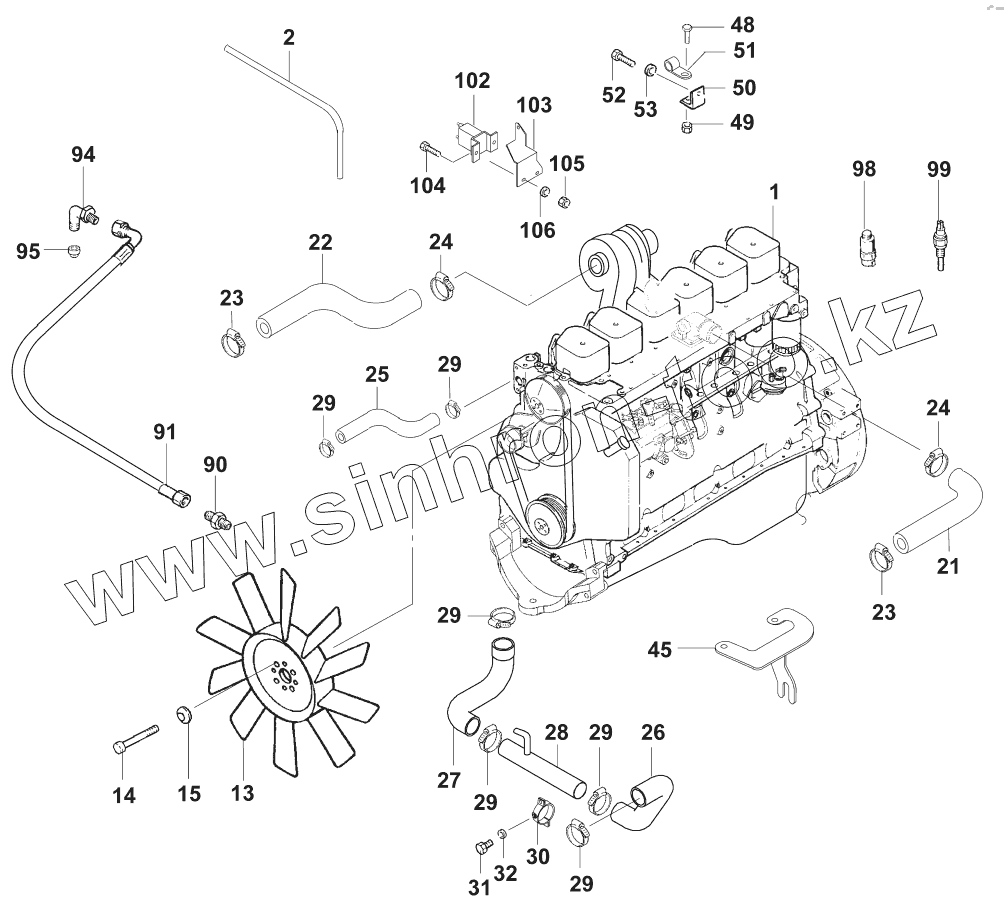

Каталог запасных частей к технике: JCB VM-146D/PD. Установка двигателя
1
2
13
14
15
21
22
23
23
24
24
25
26
27
28
29
29
29
29
29
29
30
31
32
45
48
49
50
51
52
53
90
91
94
95
98
99
102
103
104
105
106
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07262/50800 | Engine, Cummins | |
| 2 | 02880/19190 | Hose | |
| 13 | 07242/50190 | Fan wheel | |
| 14 | 02027/10100 | Cap screw M10x100 DIN912 | |
| 15 | 02806/00520 | Disc spring | |
| 21 | 07242/50140 | Hose | |
| 22 | 07242/50141 | Hose | |
| 23 | 02322/00080 | Hose clamp | |
| 24 | 02322/00090 | Hose clamp | |
| 25 | 07242/50144 | Hose, upper | |
| 26 | 07242/50145 | Hose, lower | |
| 27 | 07242/50146 | Hose, lower | |
| 28 | 07242/50148 | Pipe | |
| 29 | 02322/00064 | Hose clamp | |
| 30 | 02503/10550 | Pipe clip | |
| 31 | 02021/10012 | Hexagon screw M10x12 DIN933 | |
| 32 | 02200/00510 | Washer B10,5 DIN9021 | |
| 45 | 07241/50035 | Bracket | |
| 48 | 02021/06020 | Hexagon screw M6x20 DIN933 | |
| 49 | 02118/30600 | Security nut VM6 DIN980 | |
| 50 | 04029/69079 | Fastening angle | |
| 51 | 02503/06113 | Pipe clip | |
| 52 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 53 | 02201/00008 | Washer 8,4 DIN125 | |
| 90 | 02521/10315 | Nipple | |
| 91 | 02883/40278 | Hose 560mm | |
| 94 | 02522/23215 | Nipple | |
| 95 | 02528/00415 | Screw plug | |
| 98 | 08105/00101 | Switch | |
| 99 | 08500/01116 | Transmitter | |
| 102 | 07240/63150 | Switch magnetic | |
| 103 | 07242/63154 | Bracket | |
| 104 | 02021/06016 | Hexagon screw M6x16 DIN933 | |
| 105 | 02118/30600 | Security nut VM6 DIN980 | |
| 106 | 02200/00006 | Washer 6,4 DIN7349 | |
| 87252/50003 | 87252/50003 | Structure motor, cpl. |
