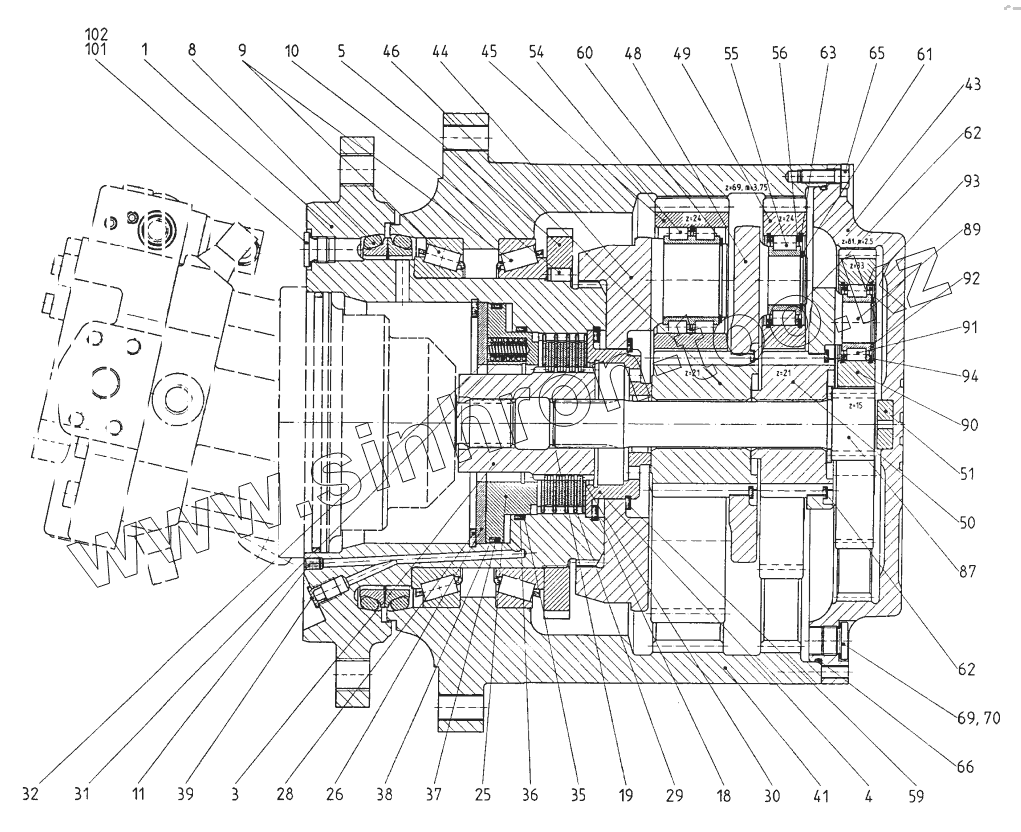

Каталог запасных частей к технике: JCB VM-146D/PD. Редуктор
1
3
4
5
8
9
10
11
18
19
25
26
28
29
30
31
32
35
36
37
38
39
41
43
44
45
46
48
49
50
51
54
55
56
59
60
61
62
62
63
65
66
69
70
87
89
90
91
92
93
94
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07260/10351 | Spindle | |
| 3 | 07260/10352 | Driver | |
| 4 | 07260/10322 | Bearing ring | |
| 5 | 07260/10310 | Shaft nut | |
| 8 | 07260/10311 | Axial face seal | |
| 9 | 07260/10323 | Roller bearing | |
| 10 | 07260/10316 | Parallel pin | |
| 11 | 07260/10324 | Expander | |
| 18 | 02304/00115 | Retaining ring 115x4 DIN472 | |
| 19 | 02304/00026 | Retaining ring 26x1,2 DIN472 | |
| 25 | 07260/10325 | Piston | |
| 26 | 07260/10326 | Disc | |
| 28 | 02304/00148 | Retaining ring 148x4 DIN472 | |
| 29 | 07260/10320 | External lamella | |
| 30 | 07260/10321 | Internal lamella | |
| 31 | 07260/10327 | Compression spring | |
| 32 | 07260/10328 | Compression spring | |
| 35 | 07260/10312 | Back-up ring | |
| 36 | 07260/10313 | Quad ring | |
| 37 | 07260/10314 | Quad ring | |
| 38 | 07260/10315 | Back-up ring | |
| 39 | 07260/10329 | Plug | |
| 41 | 07260/10330 | Ring gear | |
| 43 | 07260/10331 | Cover | |
| 44 | 07260/10332 | Planet carrier | |
| 45 | 07260/10333 | Planet gear | |
| 46 | 07260/10334 | Sun gear | |
| 48 | 07260/10335 | Planet carrier | |
| 49 | 07260/10336 | Planet gear | |
| 50 | 07260/10337 | Sun gear | |
| 51 | 07260/10338 | Housing washer | |
| 54 | 07260/10339 | Cylindrical roller bearing | |
| 55 | 07260/10340 | Cylindrical roller bearing | |
| 56 | 07260/10341 | Locating ring | |
| 59 | 07260/10342 | Retaining ring 92x3 DIN471 | |
| 60 | 02305/00045 | Retaining ring 45x1,75 DIN471 | |
| 61 | 02305/00030 | Retaining ring 30x1,5 DIN471 | |
| 62 | 02305/00080 | Retaining ring 80x2,5 DIN471 | |
| 63 | 02304/00055 | Retaining ring 55x2 DIN472 | |
| 65 | 02021/08025 | Hexagon screw M8x25 DIN933 | |
| 66 | 02772/28030 | O-ring 280x3 | |
| 69 | 02506/01815 | Screw plug M18x1,5 DIN908 | |
| 70 | 02766/01823 | Seal ring 18x22x1,5 DIN7603 | |
| 87 | 07260/10344 | Sun gear shaft | |
| 89 | 07260/10345 | Planet carrier | |
| 90 | 07260/10346 | Planet gear | |
| 91 | 07260/10347 | Cylindrical roller bearing | |
| 92 | 02305/00025 | Retaining ring 25x1,2 DIN471 | |
| 93 | 02304/00047 | Retaining ring 47x1,75 DIN472 | |
| 94 | 07260/10349 | Locating ring | |
| 95 | 07260/10350 | Thrust washer | |
| 07260/10305 | 07260/10305 | Gear |
