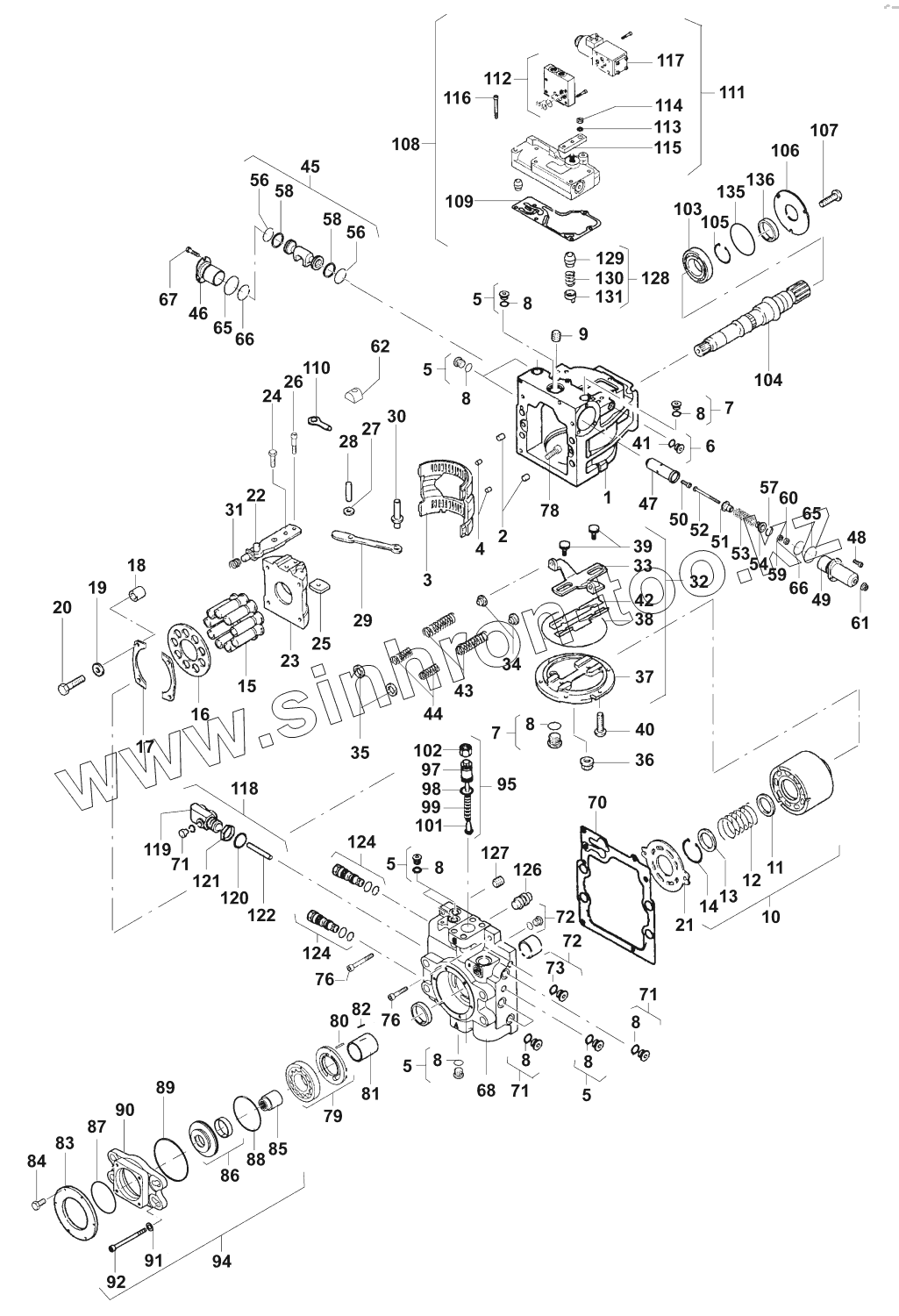

Каталог запасных частей к технике: JCB VM-146D/PD. Гидронасос
1
2
3
4
5
5
5
5
5
6
7
7
8
8
8
8
8
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
56
56
57
58
58
59
60
61
62
65
65
66
66
67
68
70
71
71
71
72
72
73
76
76
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
94
95
97
98
99
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
124
124
126
127
128
129
130
131
135
136
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07250/60502 | Housing | |
| 2 | 04030/67142 | Pin | |
| 3 | 07250/60503 | Bearing | |
| 4 | 04034/17704 | Parallel pin | |
| 5 | 04030/67226 | Screw plug, cpl. | |
| 6 | 07240/60661 | Screw plug | |
| 7 | 04030/67193 | Screw plug | |
| 8 | 02772/90024 | O-ring | |
| 9 | 04030/67145 | Filter | |
| 10 | 07250/60504 | Cyilinder, mounting set | |
| 11 | 07250/60505 | Washer | |
| 12 | 07250/60506 | Compression spring | |
| 13 | 07250/60507 | Spring retainer | |
| 14 | 07250/60508 | Retaining ring | |
| 15 | 07250/60509 | Piston, cpl. | |
| 16 | 07250/60510 | Bracket | |
| 17 | 07250/60511 | Guide | |
| 18 | 07250/60512 | Sleeve | |
| 19 | 04030/67155 | Washer | |
| 20 | 07250/60513 | Hexagon screw | |
| 21 | 07250/60514 | Valve plate | |
| 22 | 07250/60515 | Control lever | |
| 23 | 07250/60516 | Cradle | |
| 24 | 07250/60517 | Hexagon screw | |
| 25 | 04034/17715 | Guide | |
| 26 | 07250/60518 | Cap screw | |
| 27 | 04034/17717 | Disc | |
| 28 | 04034/17718 | Spring type straight pin | |
| 29 | 07250/60519 | Bow | |
| 30 | 04034/17720 | Bolt | |
| 31 | 07250/60520 | Compression spring | |
| 32 | 07250/60521 | Cover | |
| 33 | 07250/60522 | Lever | |
| 34 | 07250/60523 | Guide | |
| 35 | 07250/60524 | Washer | |
| 36 | 04030/67135 | Nut | |
| 37 | 07250/60525 | Cover | |
| 38 | 07250/60526 | O-ring | |
| 39 | 07250/60527 | Screw | |
| 40 | 07250/50814 | Hexagon screw | |
| 41 | 04029/16307 | O-ring | |
| 42 | 07250/60529 | Lever | |
| 43 | 07250/60530 | Compression spring | |
| 44 | 07250/60531 | Compression spring | |
| 45 | 07250/60532 | Piston | |
| 46 | 07250/60533 | Cylinder | |
| 47 | 07250/60534 | Sleeve | |
| 48 | 07250/60535 | Cap screw | |
| 49 | 07250/60536 | Cylinder | |
| 50 | 07250/60537 | Cap screw | |
| 51 | 07250/60538 | Guide | |
| 52 | 07250/60539 | Screw | |
| 53 | 07250/60540 | Compression spring | |
| 54 | 07250/60541 | Guide | |
| 56 | 07130/07712 | O-ring | |
| 57 | 02304/00042 | Retaining ring 42x1,75 DIN472 | |
| 58 | 07250/60543 | Seal ring | |
| 59 | 07250/60544 | Nut | |
| 60 | 07250/60545 | Hexagon nut | |
| 61 | 07250/60546 | Nut | |
| 62 | 07250/60547 | Sliding piece | |
| 65 | 07250/60550 | O-ring | |
| 66 | 07250/60551 | O-ring | |
| 67 | 07250/60552 | Hexagon screw | |
| 68 | 07250/60553 | Housing, cpl. | |
| 70 | 07250/60554 | Gasket | |
| 71 | 04030/67219 | Screw plug | |
| 72 | 07240/60661 | Screw plug | |
| 73 | 07240/60662 | O-ring | |
| 76 | 07250/60555 | Cap screw | |
| 78 | 07250/60556 | Cap screw | |
| 79 | 07250/60557 | Fillerpump-mounting set | |
| 80 | 07250/60558 | Bolt | |
| 81 | 07250/60559 | Shaft | |
| 82 | 07240/60667 | Woodruff key | |
| 83 | 04030/67192 | Holder ring | |
| 84 | 04030/67183 | Hexagon screw | |
| 85 | 07250/60560 | Coupling sleeve | |
| 86 | 07240/60670 | Cover, cpl. | |
| 87 | 07250/60564 | O-ring | |
| 88 | 02772/90110 | O-ring | |
| 89 | 02772/90111 | O-ring | |
| 90 | 07250/60561 | Adaptor | |
| 91 | 07250/60562 | Washer | |
| 92 | 07250/60563 | Cap screw | |
| 94 | 07250/60565 | Adaptor, cpl. | |
| 95 | 04034/17767 | Valve, cpl. | |
| 97 | 04034/17768 | Adjusting screw, cpl. | |
| 98 | 04200/19216 | O-ring | |
| 99 | 04901/10371 | Compression spring | |
| 101 | 04901/10372 | Poppet, valve | |
| 102 | 07240/13345 | Nut | |
| 103 | 07250/60567 | Cylindrical roller bearing | |
| 104 | 07250/60568 | Shaft | |
| 105 | 07250/60569 | Retaining ring | |
| 106 | 07250/60570 | Thrust washer | |
| 107 | 04029/16332 | Cap screw | |
| 108 | 07240/60693 | Valve, cpl. | |
| 109 | 07250/60571 | Gasket | |
| 110 | 07250/60572 | Srap | |
| 111 | 07250/60573 | Valve, cpl. | |
| 112 | 07250/60574 | Connection plate | |
| 113 | 07130/07664 | Washer | |
| 114 | 04034/17781 | Hexagon nut | |
| 115 | 04029/17517 | Lever | |
| 116 | 04034/17783 | Cap screw | |
| 117 | 07240/60702 | Way valve | |
| 118 | 07250/60575 | Filter conection | |
| 119 | 07250/60576 | Filter conection | |
| 120 | 07250/60577 | O-ring | |
| 121 | 07250/60578 | Hexagon nut | |
| 122 | 07250/60579 | Pipe | |
| 124 | 04901/10387 | Valve | |
| 126 | 04901/10388 | Check valve | |
| 127 | 04901/10389 | Plug | |
| 128 | 04901/10391 | Nozzle, cpl. | |
| 129 | 04901/10392 | Nozzle 1,02 | |
| 130 | 04901/10393 | Compression spring | |
| 131 | 04901/10394 | Sleeve | |
| 135 | 07250/60548 | O-ring | |
| 136 | 07240/13348 | Shaft seal ring | |
| 07250/60500 | 07250/60500 | Drive pump | |
| 07250/60501 | 07250/60501 | Kit, gasket |
