Каталог запасных частей к технике: JCB VM-146D/PD. Двери кабины
1
2
3
4
5
8
9
10
11
11
12
13
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
42
42
43
44
44
45
45
46
47
48
49
50
51
52
54
54
55
55
56
60
61

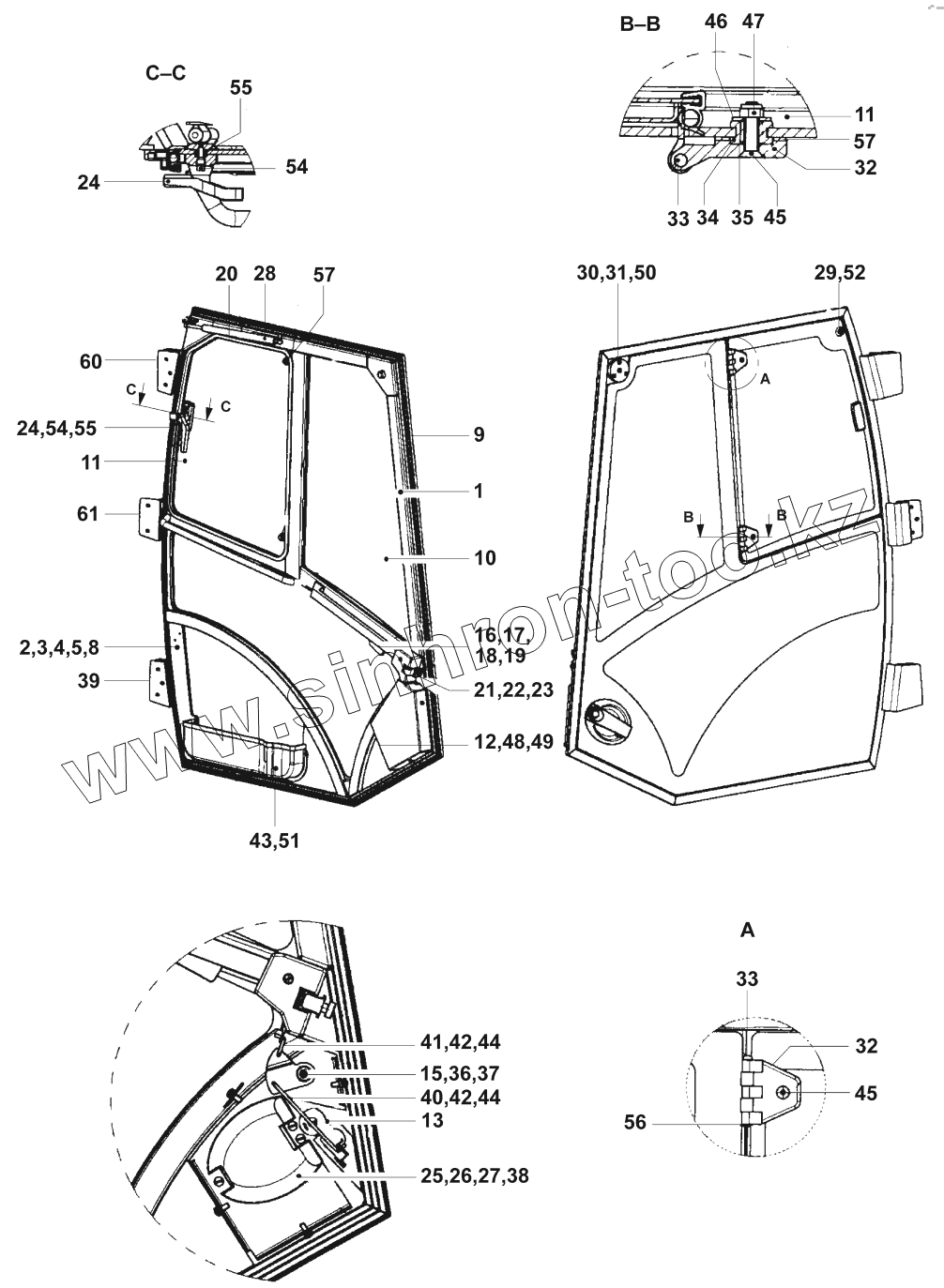

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07242/96150 | Door, left | |
| 2 | 07242/96225 | Mounting band | |
| 3 | 07242/96152 | Jack, right | |
| 4 | 07242/96153 | Jack, left | |
| 5 | 07242/96221 | Screw | |
| 8 | 07242/96220 | Sleeve | |
| 9 | 07242/96119 | Seal 4500mm | |
| 10 | 07242/96230 | Glass, left | |
| 11 | 07242/96231 | Glass, left | |
| 12 | 07242/96232 | Covering | |
| 13 | 07242/96233 | Plate | |
| 15 | 07242/96234 | Washer | |
| 16 | 07242/96115 | Handle | |
| 17 | 02028/06030 | Countersunk bolt M6x30 DIN7991 | |
| 18 | 07242/96236 | Countersunk bolt | |
| 19 | 07242/96237 | Countersunk bolt | |
| 20 | 07242/96113 | Seal 2750mm | |
| 21 | 07242/96203 | Bolt | |
| 22 | 07242/96204 | Bow | |
| 23 | 07242/96205 | Plate | |
| 24 | 07242/96114 | Handle, right | |
| 25 | 07242/96116 | Door handle | |
| 26 | 07242/96117 | Lock | |
| 27 | 07242/96118 | Key | |
| 28 | 07242/96112 | Gas spring | |
| 29 | 07242/96200 | Bolt | |
| 30 | 07242/96201 | Base | |
| 31 | 07242/96158 | Locking | |
| 32 | 07242/96240 | Hunge | |
| 33 | 07242/96241 | Pin | |
| 34 | 07242/96242 | Grommet | |
| 35 | 07242/96243 | Sleeve | |
| 36 | 02200/00506 | Washer 6,4 DIN9021 | |
| 37 | 02118/40800 | Security nut NM 8 DIN980 | |
| 38 | 07242/96244 | Screw | |
| 39 | 07242/96206 | Plate, left lower | |
| 40 | 07242/96138 | Wire, long | |
| 41 | 07242/96139 | Wire, short | |
| 42 | 07242/96137 | Clip | |
| 43 | 07242/96148 | Cover-door | |
| 44 | 07242/96250 | Fastening | |
| 45 | 02028/08035 | Countersunk bolt M8x35 DIN7991 | |
| 46 | 02200/00508 | Disc 8,4 DIN9021 | |
| 47 | 07242/96252 | Hexagon nut | |
| 48 | 07242/96253 | Screw | |
| 49 | 07242/96254 | Nut | |
| 50 | 07242/96255 | Screw | |
| 51 | 07242/96256 | Screw | |
| 52 | 07242/96202 | Washer | |
| 54 | 02027/06016 | Cap screw M6x16 DIN912 | |
| 55 | 07242/96260 | Water hose 20mm | |
| 56 | 07242/96261 | Lock washer | |
| 60 | 07242/96215 | Plate, left upper | |
| 61 | 07242/96216 | Plate, left middle | |
| 76 | 07242/96262 | Base | |
| 07242/96160 | 07242/96160 | Door left, cpl. |
