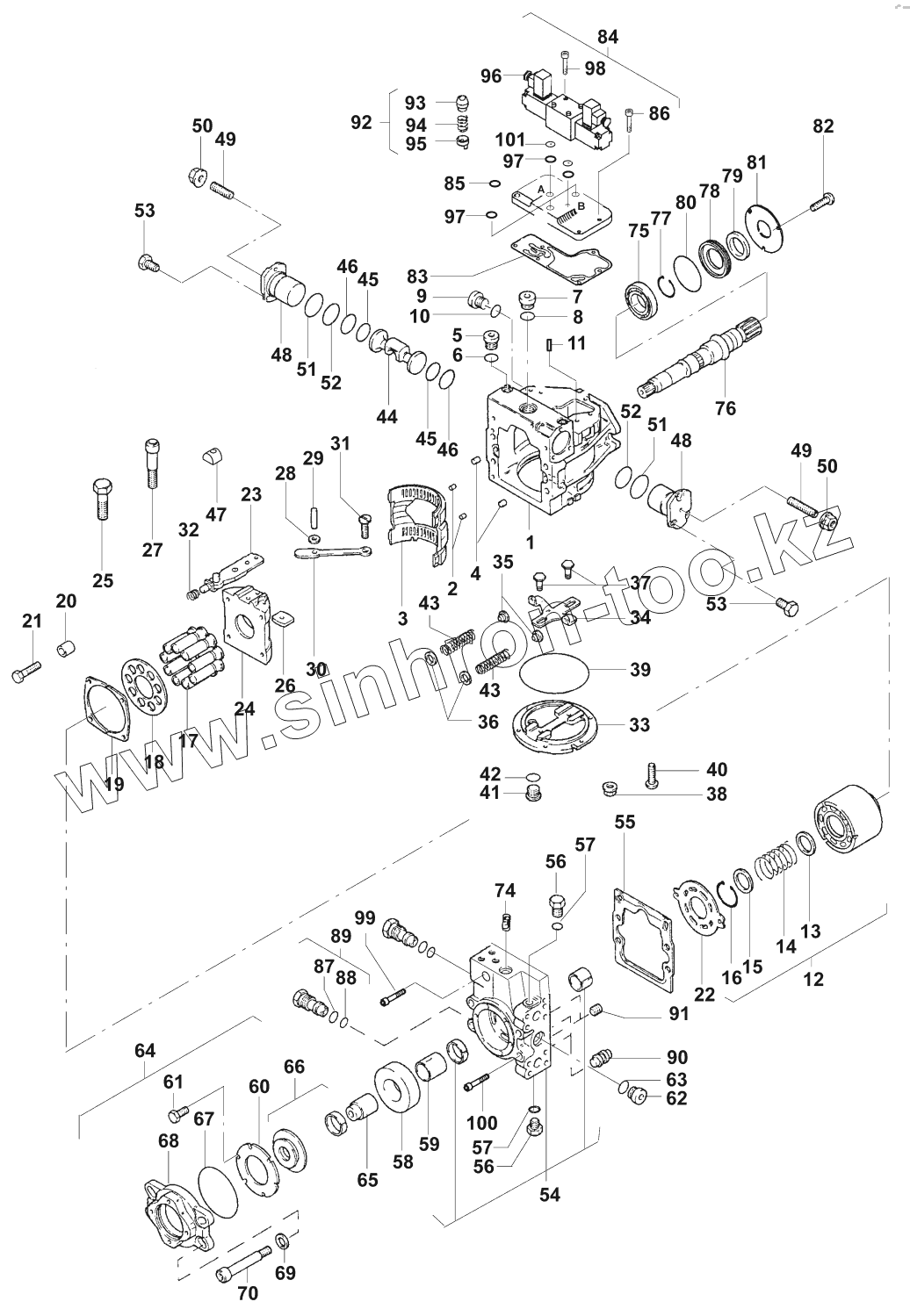

Каталог запасных частей к технике: JCB VM-132D/PD. Вибрационный насос/Vibration pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
45
45
46
46
47
48
48
49
49
50
50
51
51
52
52
53
53
54
55
56
56
57
57
58
59
60
61
62
63
64
65
66
67
68
69
70
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
97
98
99
100
101
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07240/60402 | Housing | |
| 2 | 04030/67142 | Pin | |
| 3 | 04030/67143 | Bearing | |
| 4 | 04029/16311 | Parallel pin | |
| 5 | 04030/67226 | Screw plug, cpl. | |
| 6 | 02772/90024 | O-ring | |
| 7 | 04030/67144 | Screw plug | |
| 8 | 04200/19216 | O-ring | |
| 9 | 04030/67226 | Screw plug, cpl. | |
| 10 | 02772/90024 | O-ring | |
| 11 | 04030/67145 | Filter | |
| 12 | 07240/60403 | Cylinder block | |
| 13 | 04030/67147 | Spring retainer | |
| 14 | 07240/60404 | Compression spring | |
| 15 | 04030/67149 | Spring retainer | |
| 16 | 04030/67150 | Retaining ring | |
| 17 | 04030/67151 | Piston, cpl. | |
| 18 | 07240/60406 | Bracket | |
| 19 | 04030/67153 | Guide | |
| 20 | 04030/67154 | Sleeve | |
| 21 | 07240/60408 | Hexagon screw | |
| 22 | 07240/60409 | Valve plate | |
| 23 | 04030/67158 | Control lever | |
| 24 | 07240/60410 | Swash plate | |
| 25 | 04030/67160 | Hexagon screw | |
| 26 | 04030/67161 | Guide | |
| 27 | 04030/67162 | Cap screw | |
| 28 | 04030/67163 | Washer | |
| 29 | 04030/67164 | Spring type straight pin | |
| 30 | 04030/67165 | Bow | |
| 31 | 04030/67166 | Countersunk bolt | |
| 32 | 04030/67167 | Compression spring | |
| 33 | 07240/60411 | Cover | |
| 34 | 07240/60412 | Lever | |
| 35 | 07240/60413 | Guide | |
| 36 | 04030/67171 | Washer | |
| 37 | 04030/67172 | Screw | |
| 38 | 04033/28590 | Nut | |
| 39 | 07240/60414 | O-ring | |
| 40 | 07240/60408 | Hexagon screw | |
| 41 | 04030/67144 | Screw plug | |
| 42 | 04200/19216 | O-ring | |
| 43 | 04030/67176 | Compression spring | |
| 44 | 07240/60416 | Piston | |
| 45 | 04030/67177 | O-ring | |
| 46 | 04030/67178 | Ring | |
| 47 | 04030/67179 | Sliding piece | |
| 48 | 07240/60417 | Cylinder | |
| 49 | 04030/67180 | Pin | |
| 50 | 04030/67135 | Nut | |
| 51 | 04030/67181 | O-ring | |
| 52 | 04030/67182 | O-ring | |
| 53 | 04030/67183 | Hexagon screw | |
| 54 | 07240/60420 | Housing, cpl. | |
| 55 | 07240/60421 | Gasket | |
| 56 | 04030/67219 | Screw plug | |
| 57 | 02772/90024 | O-ring | |
| 58 | 04030/67190 | Spacer ring | |
| 59 | 07240/60422 | Shaft | |
| 60 | 04030/67192 | Holder ring | |
| 61 | 04030/67183 | Hexagon screw | |
| 62 | 04030/67193 | Screw plug | |
| 63 | 02772/90007 | O-ring | |
| 64 | 07240/60423 | Adaptor, cpl. | |
| 65 | 07240/60424 | Coupling sleeve | |
| 66 | 07240/60670 | Cover, cpl. | |
| 67 | 02772/90111 | O-ring | |
| 68 | 04030/67197 | Adaptor | |
| 69 | 02201/00010 | Washer 10,5 DIN125 | |
| 70 | 04030/67198 | Cap screw | |
| 74 | 07240/60426 | Compression spring | |
| 75 | 07240/60427 | Cylindrical roller bearing | |
| 76 | 07240/60428 | Shaft | |
| 77 | 04034/17772 | Retaining ring | |
| 78 | 07240/60429 | Gasket | |
| 79 | 07240/60430 | Shaft seal ring | |
| 80 | 07240/60431 | O-ring | |
| 81 | 07240/60432 | Thrust washer | |
| 82 | 07240/60433 | Cap screw | |
| 83 | 04901/10382 | Gasket | |
| 84 | 04901/10383 | Valve | |
| 85 | 04029/67264 | Seal ring | |
| 86 | 04901/10384 | Cap screw | |
| 87 | 04025/22122 | O-ring | |
| 88 | 02772/90114 | O-ring | |
| 89 | 04901/10387 | Valve | |
| 90 | 04901/10388 | Check valve | |
| 91 | 04901/10389 | Plug | |
| 92 | 04901/10391 | Nozzle, cpl. | |
| 93 | 04901/10392 | Nozzle 1,02 | |
| 94 | 04901/10393 | Compression spring | |
| 95 | 04901/10394 | Sleeve | |
| 96 | 04034/17894 | Way valve | |
| 97 | 02772/01015 | O-ring | |
| 98 | 07240/60436 | Cap screw | |
| 99 | 07240/60437 | Cap screw | |
| 100 | 07240/60438 | Cap screw | |
| 101 | 04029/72457 | Nozzle | |
| 04901/10395 | 04901/10395 | Kit, gasket | |
| 07240/60400 | 07240/60400 | Vibration pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
