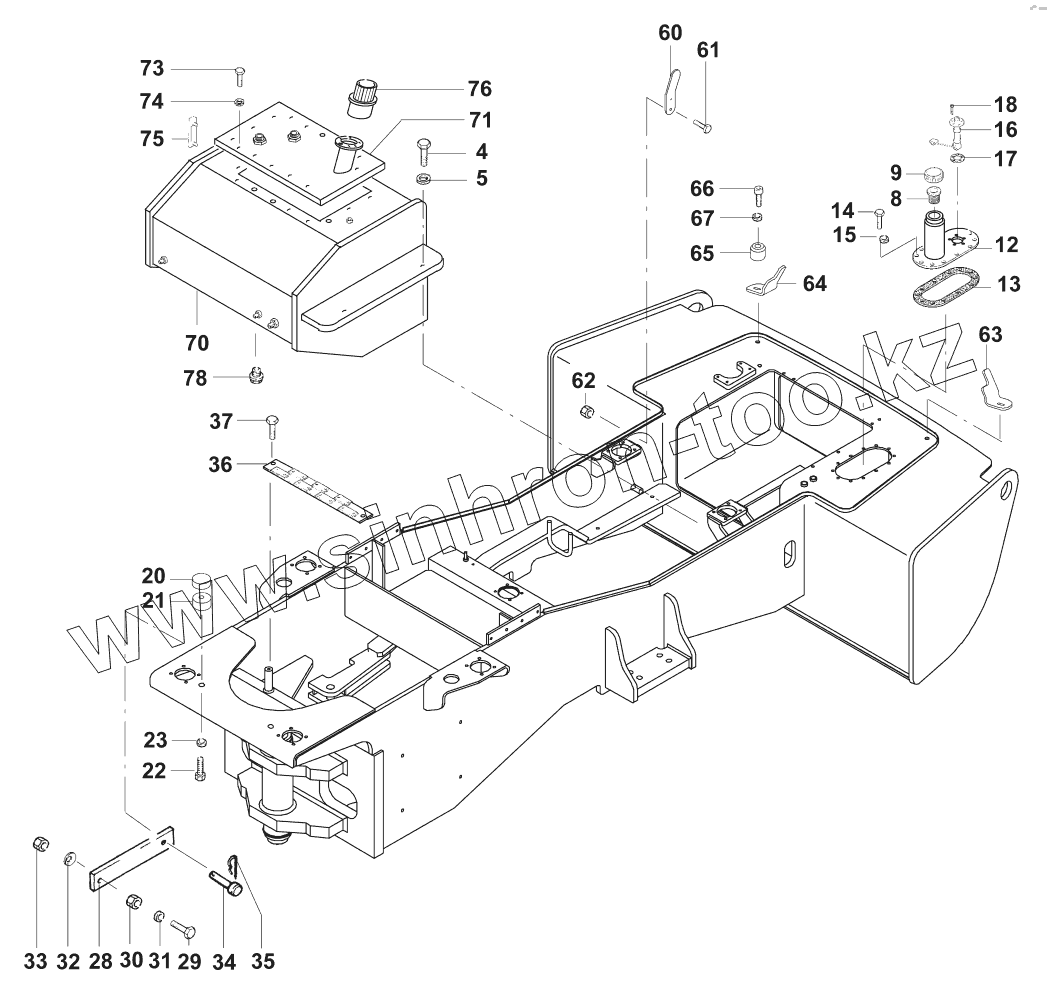

Каталог запасных частей к технике: JCB VM-132D/PD. Рама/Frame
4
5
8
9
12
13
14
15
16
17
18
20
21
22
23
28
29
30
31
32
33
34
35
36
37
60
61
62
63
64
65
66
67
70
71
73
74
75
76
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07242/12100 | Frame | |
| 4 | 02021/12035 | Hexagon screw M12x35 DIN933 | |
| 5 | 02201/00012 | Washer 13 DIN125 | |
| 8 | 04029/15040 | Screen | |
| 9 | 06730/08351 | Cover lid, cpl. | |
| 12 | 07222/11181 | Cover lid | |
| 13 | 04033/21255 | Gasket | |
| 14 | 02021/08025 | Hexagon screw M8x25 DIN933 | |
| 15 | 02113/00708 | Screw retaining device | |
| 16 | 08427/00010 | Transmitter | |
| 17 | 08427/00011 | Gasket | |
| 18 | 02025/05016 | Cap screw M5x16 DIN7984 | |
| 20 | 02622/07525 | Stop buffer | |
| 21 | 07242/41204 | Spacer washer | |
| 22 | 02020/12055 | Hexagon screw M20x55 DIN931 | |
| 23 | 02200/00013 | Washer 13 DIN7349 | |
| 28 | 04029/15061 | Strap | |
| 29 | 02021/24100 | Hexagon screw M24x100 DIN933 | |
| 30 | 02110/00024 | Hexagon nut M24 DIN934 | |
| 31 | 02201/00024 | Washer 25 DIN125 | |
| 32 | 02806/00550 | Disc spring | |
| 33 | 02118/32400 | Security nut VM24 DIN980 | |
| 34 | 02445/24720 | Bolt | |
| 35 | 06426/00018 | Locking wire | |
| 36 | 04029/15370 | Fixing bar | |
| 37 | 02021/12035 | Hexagon screw M12x35 DIN933 | |
| 60 | 07222/53235 | Guide | |
| 61 | 02021/10025 | Hexagon screw M10x25 DIN933 | |
| 62 | 02118/30600 | Security nut VM6 DIN980 | |
| 63 | 07242/53521 | Guide, left | |
| 64 | 07242/53522 | Guide, right | |
| 65 | 07242/53516 | Stop buffer | |
| 66 | 02027/10045 | Cap screw M10x45 DIN912 | |
| 67 | 02201/00010 | Washer 10,5 DIN125 | |
| 70 | 07221/10310 | Hydraulic oil tank | |
| 71 | 07221/10320 | Cover lid | |
| 73 | 02021/08025 | Hexagon screw M8x25 DIN933 | |
| 74 | 02113/00708 | Screw retaining device | |
| 75 | 02612/00032 | Oil level indicator | |
| 76 | 02611/00160 | Filter | |
| 78 | 02506/20112 | Union | |
| 87242/10002 | 87242/10002 | Frame, cpl. |
