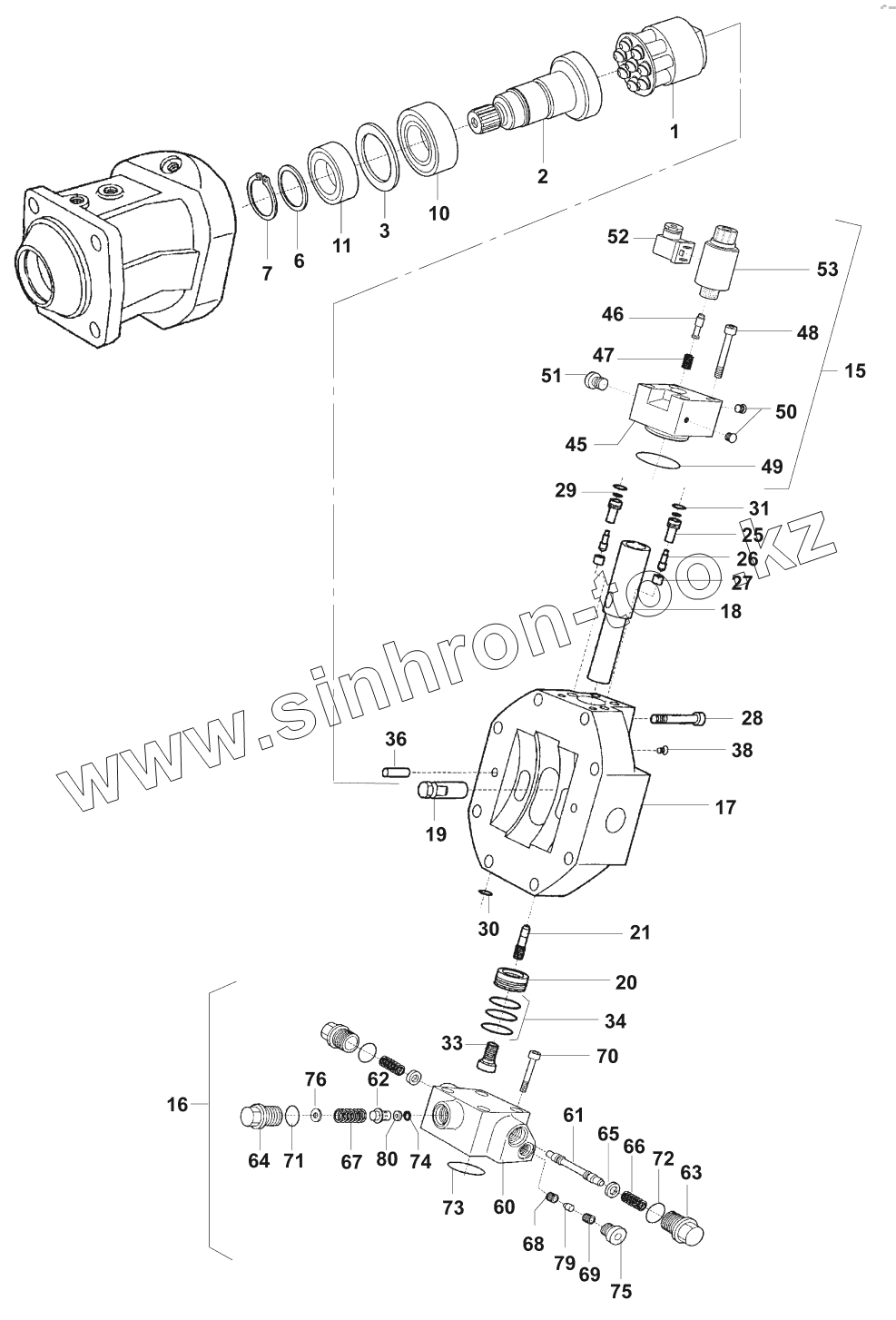

Каталог запасных частей к технике: JCB VM-132D/PD. Гидромотор/Variable displacement motor
1
2
3
6
7
10
11
15
16
17
18
19
20
21
25
26
27
28
29
30
31
33
34
36
38
45
46
47
48
49
50
51
52
53
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
76
79
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07242/30315 | Driving gear, hydraulically | |
| 2 | 07242/30316 | Shaft | |
| 3 | 07242/30317 | Shim ring | |
| 6 | 07242/30318 | Supporting ring | |
| 7 | 02305/00075 | Retaining ring | |
| 10 | 07242/30330 | Roller bearing | |
| 11 | 07242/30331 | Roller bearing | |
| 15 | 07242/30365 | Control system | |
| 16 | 07242/30375 | Pressure valve | |
| 17 | 07242/30380 | Plate | |
| 18 | 07242/30381 | Piston | |
| 19 | 07242/30382 | Stund | |
| 20 | 07242/30383 | Piston | |
| 21 | 07242/30384 | Heandless screw | |
| 25 | 07242/30385 | Guide | |
| 26 | 07242/30386 | Bolt | |
| 27 | 07242/30387 | Bushing | |
| 28 | 02027/16045 | Cap screw | |
| 29 | 07242/30388 | O-ring | |
| 30 | 07242/30389 | O-ring | |
| 31 | 07241/20312 | O-ring | |
| 33 | 07242/30391 | Cap screw | |
| 34 | 07242/30392 | Plain compression ring | |
| 36 | 07242/30393 | Parallel pin | |
| 38 | 07241/20311 | Plug | |
| 45 | 07242/30366 | Housing | |
| 46 | 07242/30367 | Piston | |
| 47 | 07242/30368 | Compression spring | |
| 48 | 02027/08035 | Cap screw | |
| 49 | 07242/30369 | O-ring | |
| 50 | 07222/50629 | Plug | |
| 51 | 07241/20307 | Screw plug | |
| 52 | 08361/01005 | Plug | |
| 53 | 07242/30371 | Magnet | |
| 60 | 07242/30401 | Housing | |
| 61 | 07242/30402 | Piston | |
| 62 | 07242/30403 | Piston | |
| 63 | 07242/30404 | Screw plug | |
| 64 | 07242/30405 | Screw plug | |
| 65 | 07242/30406 | Disc | |
| 66 | 07242/30410 | Compression spring | |
| 67 | 07222/20635 | Compression spring | |
| 68 | 07241/20297 | Screw | |
| 69 | 07241/20298 | Screw | |
| 70 | 02027/12050 | Cap screw M12x50 DIN912 | |
| 71 | 07242/30411 | O-ring | |
| 72 | 07241/20310 | O-ring | |
| 73 | 07242/30412 | O-ring | |
| 74 | 07242/30413 | Retaining ring | |
| 75 | 07241/20307 | Screw plug | |
| 76 | 07242/30414 | Shim ring | |
| 76 | 07242/30415 | Shim ring | |
| 77 | 07242/30416 | Shim ring | |
| 79 | 07241/20301 | Pin | |
| 80 | 07242/30417 | Visor | |
| 07242/30300 | 07242/30300 | Variable displacement motor, cpl. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
