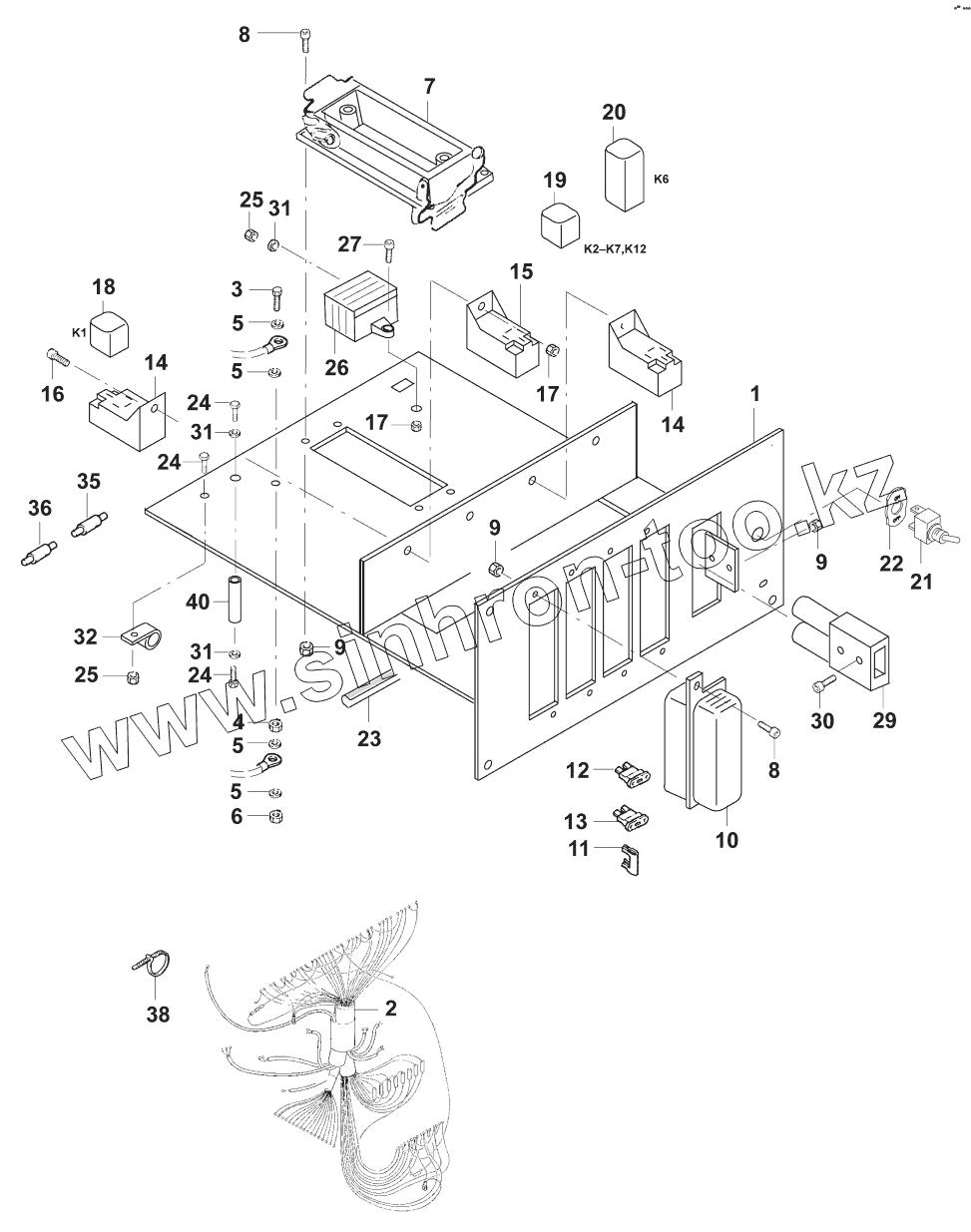

Каталог запасных частей к технике: JCB VM-132D/PD. Электрооборудование/Plate
1
2
3
4
5
5
5
5
6
7
8
8
9
9
9
10
11
12
13
14
14
15
16
17
17
18
19
20
21
22
23
24
24
24
25
25
26
27
29
30
31
31
31
32
35
36
38
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07242/80416 | Plate | |
| 2 | 07242/80415 | Cable harness | |
| 3 | 02021/06030 | Hexagon screw M6x30 DIN933 | |
| 4 | 02110/00006 | Hexagon nut M6 DIN934 | |
| 5 | 02201/00006 | Washer 6,4 DIN125 | |
| 6 | 02118/30600 | Security nut VM6 DIN980 | |
| 7 | 08364/05039 | Plug housing | |
| 8 | 02023/04016 | Cap screw M4x16 DIN84 | |
| 9 | 02118/40400 | Security nut NM4 DIN985 | |
| 10 | 08412/05010 | Fuse box | |
| 11 | 08412/05001 | Bridge | |
| 12 | 08412/05100 | Insert 10A | |
| 13 | 08412/05150 | Insert 15A | |
| 14 | 08121/01029 | Mounting base | |
| 15 | 08121/01026 | Mounting base | |
| 16 | 02023/05012 | Cap screw M5x12 DIN84 | |
| 17 | 02118/40500 | Security nut NM5 DIN985 | |
| 18 | 08121/01060 | Relay | |
| 19 | 08121/01033 | Relay | |
| 20 | 08121/01048 | Relay | |
| 21 | 08102/02158 | Switch | |
| 22 | 08102/02159 | Decal | |
| 23 | 02782/01010 | Sectional sealing material 600mm | |
| 24 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 25 | 02118/40800 | Security nut NM 8 DIN980 | |
| 26 | 08364/05255 | Distributor | |
| 27 | 02025/05016 | Cap screw M5x16 DIN7984 | |
| 29 | 08412/04950 | Fuse holder | |
| 30 | 02023/04030 | Cap screw M4x30 DIN84 | |
| 31 | 02201/00008 | Washer 8,4 DIN125 | |
| 32 | 02503/06130 | Pipe clip | |
| 35 | 08230/01132 | Diode, cpl. | |
| 36 | 08230/01160 | Diode, cpl. | |
| 38 | 02322/00021 | Hose clip | |
| 40 | 07242/80421 | Bolt | |
| 07242/80410 | 07242/80410 | Plate, cpl. |
