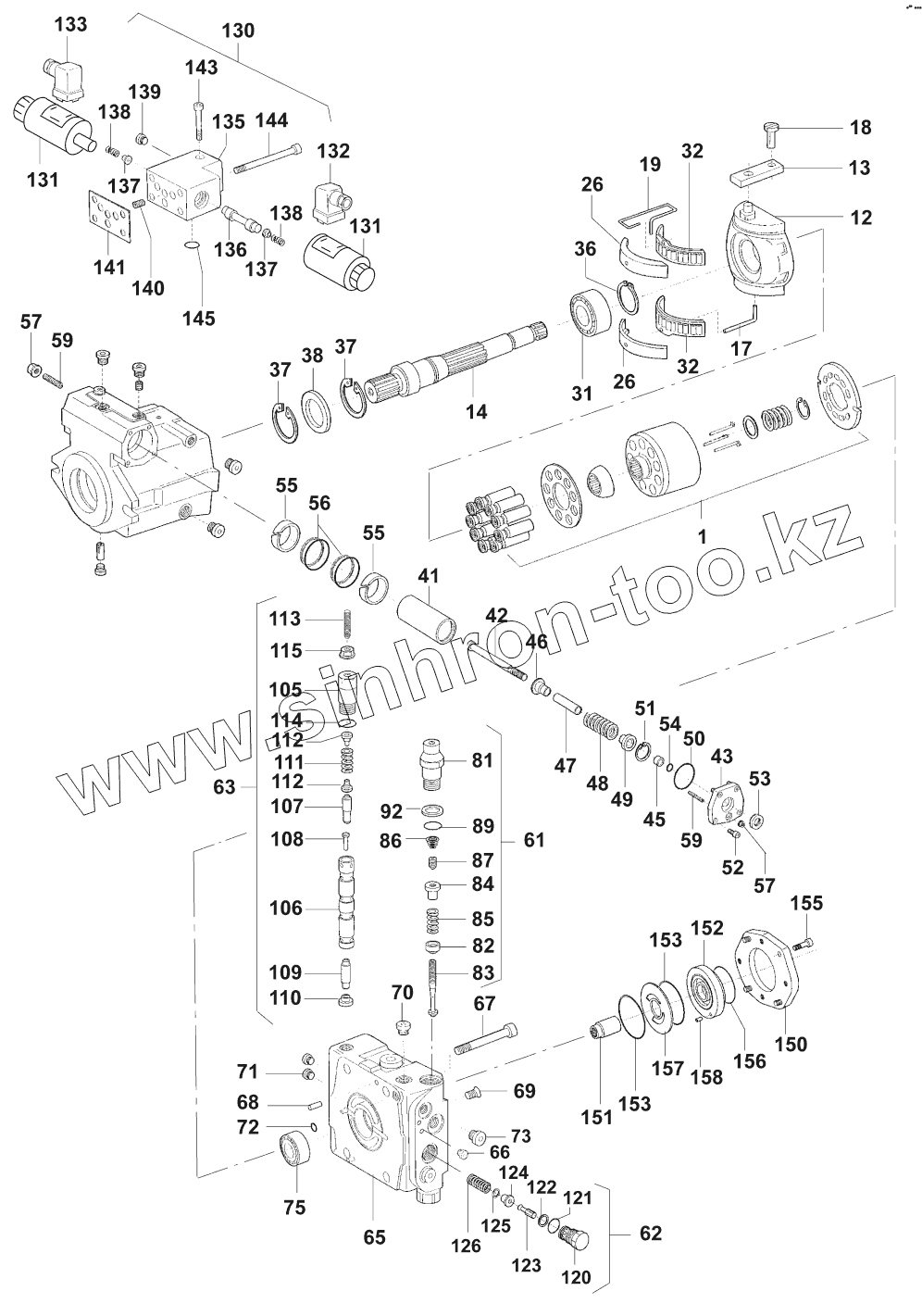

Каталог запасных частей к технике: JCB VM-115 D/PD. Вибрационный насос/Vibration pump
1
12
13
14
17
18
19
26
26
31
32
32
36
37
37
38
41
42
43
45
46
47
48
49
50
51
52
53
54
55
55
56
57
57
59
59
61
62
63
65
66
67
68
69
70
71
72
73
75
81
82
83
84
85
86
87
89
92
105
106
107
108
109
110
111
112
112
113
114
115
120
121
122
123
124
125
125
125
126
130
131
131
132
133
135
136
137
137
138
138
139
140
141
143
144
145
150
151
152
153
153
155
156
157
158
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07210/17315 | Driving gear, hydraulically | |
| 12 | 07210/17316 | Bearing | |
| 13 | 07210/17317 | Sliding | |
| 14 | 07232/50381 | Shaft | |
| 17 | 04050/69135 | Wire | |
| 18 | 07221/50384 | Pin | |
| 19 | 07210/17319 | Wire | |
| 26 | 07232/50382 | Pair of bearing shells | |
| 31 | 07232/50383 | Cylindrical roller bearing | |
| 32 | 07210717321 | Pair of cage | |
| 36 | 07210/17322 | Retaining ring | |
| 37 | 07210/17323 | Retaining ring | |
| 38 | 07210/17324 | Shaft seal ring | |
| 41 | 07210/17331 | Piston | |
| 42 | 07210/17332 | Rod | |
| 43 | 07210/17448 | Cover | |
| 45 | 07221/50564 | Ring | |
| 46 | 07210/17334 | Spring retainer | |
| 47 | 07232/50384 | Spacer bushing | |
| 48 | 07210/17336 | Compression spring | |
| 49 | 07210/17337 | Spring retainer | |
| 50 | 07210/17338 | O-ring | |
| 51 | 07210/17339 | Retaining ring | |
| 52 | 02027/06012 | Cap screw M6x12 DIN912 | |
| 53 | 07221/50572 | Hexagon nut | |
| 54 | 04033/23163 | O-ring | |
| 55 | 07210/17340 | Guide ring | |
| 56 | 07210/17341 | Ring | |
| 57 | 07221/50440 | Nut | |
| 59 | 04050/69263 | Headless screw | |
| 61 | 07221/50585 | Preesure relief valve | |
| 62 | 07210/17430 | Closure | |
| 63 | 07221/50595 | Valve | |
| 65 | 07232/50385 | Connection plate | |
| 66 | 07241/20311 | Plug | |
| 67 | 07210/17352 | Cap screw | |
| 68 | 04050/69268 | Parallel pin | |
| 69 | 07221/50421 | Plug | |
| 70 | 04050/69201 | Screw plug | |
| 71 | 07210/17353 | Screw plug | |
| 72 | 07221/50412 | O-ring | |
| 73 | 04050/69181 | Screw plug | |
| 75 | 07210/17354 | Cylindrical roller bearing | |
| 81 | 07221/50598 | Screw plug | |
| 82 | 07221/50434 | Guide | |
| 83 | 07221/50435 | Levelling spindle | |
| 84 | 07221/50436 | Bracket | |
| 85 | 07221/50437 | Compression spring | |
| 86 | 04050/69186 | Compression spring | |
| 87 | 07221/50438 | Heandless screw | |
| 89 | 04050/69187 | O-ring | |
| 92 | 07221/50441 | Back-up ring | |
| 105 | 07221/50603 | Screw plug | |
| 106 | 07221/50461 | Bushing | |
| 107 | 07221/50462 | Piston | |
| 108 | 07221/50463 | Piston | |
| 109 | 07221/50464 | Valve piston | |
| 110 | 07221/50605 | Guide | |
| 111 | 04050/69196 | Compression spring | |
| 112 | 07221/50467 | Spring retainer | |
| 113 | 07221/50468 | Adjusting screw | |
| 114 | 07221/50469 | O-ring | |
| 115 | 07221/50440 | Nut | |
| 120 | 07210/17425 | Screw plug | |
| 121 | 07210/17427 | O-ring | |
| 122 | 04050/69191 | Seal ring | |
| 123 | 07221/50452 | Valve piston | |
| 124 | 04050/69190 | Spring retainer | |
| 125 | 04050/69129 | Shim ring 1mm | |
| 125 | 04050/69193 | Shim ring 0,3mm | |
| 125 | 07232/50386 | Shim ring 0,5mm | |
| 126 | 07221/50454 | Compression spring | |
| 130 | 04050/69272 | Valve housing, cpl. | |
| 131 | 07221/50655 | Magnet | |
| 132 | 08362/01010 | Plug socket | |
| 133 | 08362/01015 | Plug socket | |
| 135 | 07221/50656 | Valve housing | |
| 136 | 04050/69273 | Piston | |
| 137 | 07221/50458 | Spring retainer | |
| 138 | 04050/69274 | Compression spring | |
| 139 | 07210/17378 | Plug | |
| 140 | 07241/20311 | Plug | |
| 141 | 04050/69211 | Gasket | |
| 143 | 07221/50631 | Cap screw | |
| 144 | 07221/50632 | Cap screw | |
| 145 | 07210/17436 | O-ring | |
| 150 | 07232/50387 | Intermediate flange | |
| 151 | 07210/17420 | Shaft | |
| 152 | 07232/50388 | Seal ring | |
| 153 | 04901/20406 | O-ring | |
| 155 | 07221/50484 | Cap screw | |
| 156 | 07232/50389 | O-ring | |
| 157 | 07221/50614 | Wear plate | |
| 158 | 07221/50487 | Parallel pin | |
| 07232/50370 | 07232/50370 | Vibration pump |
