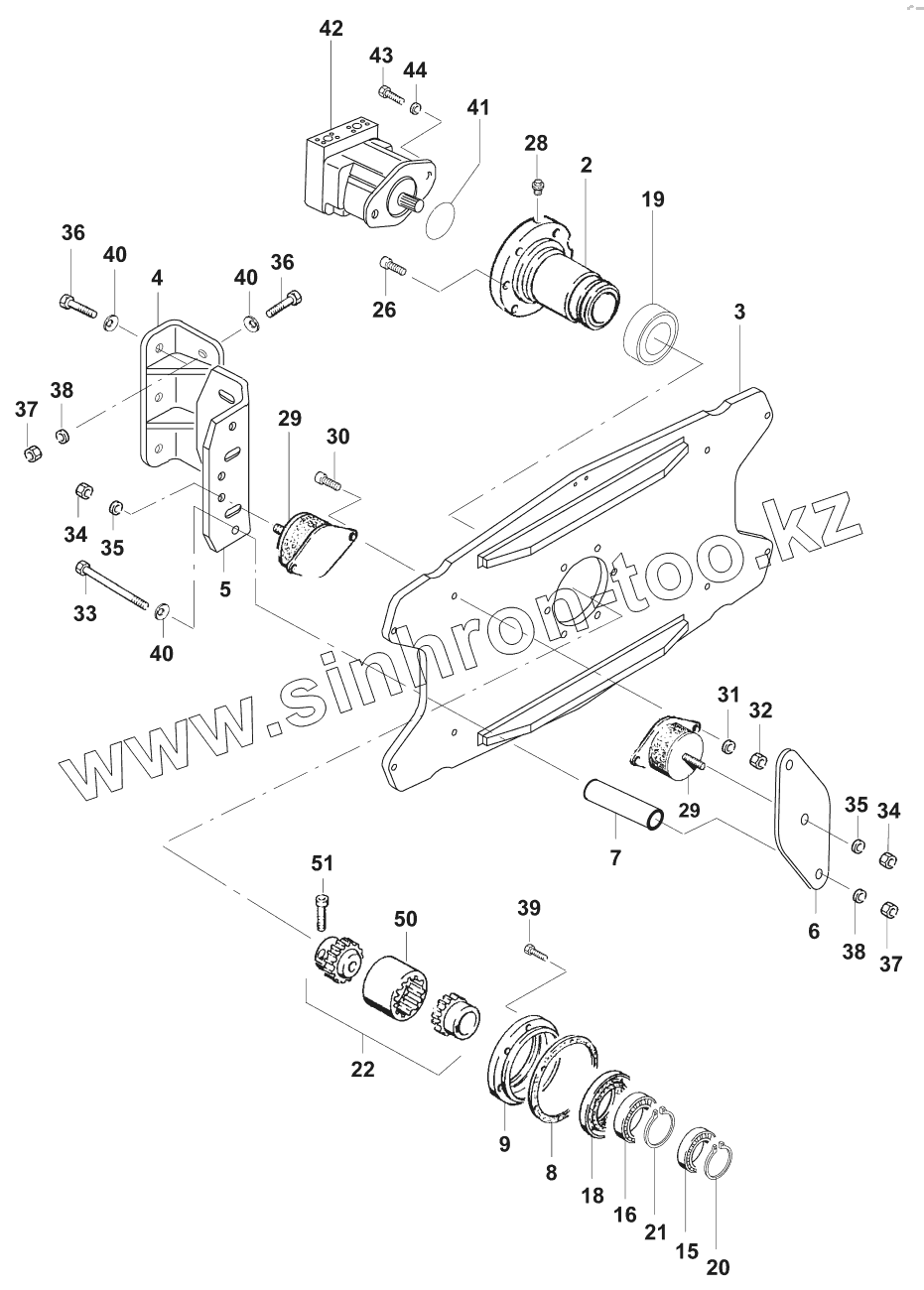

Каталог запасных частей к технике: JCB VM-115 D/PD. Подвеска правая/Suspension, rigth
2
3
4
5
6
7
8
9
15
16
18
19
20
21
22
26
28
29
29
30
31
32
33
34
34
35
35
36
36
37
37
38
38
39
40
40
40
41
42
43
44
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 04033/11222 | Bearing flange | |
| 3 | 07232/20110 | Bracket, cpl. | |
| 4 | 07232/20130 | Buffer bracket | |
| 5 | 07232/20127 | Buffer bracket | |
| 6 | 07240/10003 | Tensioning plate | |
| 7 | 07240/10018 | Spacer pipe | |
| 8 | 04033/11066 | Seal ring | |
| 9 | 04033/11065 | Cover | |
| 15 | 02700/01240 | Deep grove ball bearing | |
| 16 | 02700/01260 | Deep grove ball bearing | |
| 18 | 02775/45175 | Shaft seal ring | |
| 19 | 02718/23020 | Inner ring | |
| 20 | 02306/06120 | Snap ring | |
| 21 | 02305/00130 | Retaining ring 130x4 DIN471 | |
| 22 | 04010/46860 | Clutch, compl. | |
| 26 | 02025/16040 | Cap screw M16x40 DIN7984 | |
| 28 | 06180/01034 | Screw | |
| 29 | 04010/22019 | Rubber pad | |
| 30 | 02027/12050 | Cap screw M12x50 DIN912 | |
| 31 | 02201/00012 | Washer 13 DIN125 | |
| 32 | 02118/31200 | Security nut VM12 DIN980 | |
| 33 | 02020/20220 | Hexagon screw M20x220 DIN931 | |
| 34 | 02118/41600 | Security nut NM16 DIN985 | |
| 35 | 02201/00016 | Washer 17 DIN125 | |
| 36 | 02020/20085 | Hexagon screw M20x85 DIN931 | |
| 37 | 02118/32000 | Security nut VM20 DIN980 | |
| 38 | 02208/00120 | Washer 20 DIN6796 | |
| 39 | 02021/10016 | Hexagon screw M10x16 DIN933 | |
| 40 | 02806/00540 | Disc spring | |
| 41 | 02772/09620 | O-ring | |
| 42 | 07232/20150 | Vibrtion motor | |
| 43 | 02022/12035 | Hexagon screw M12x35 DIN933 | |
| 44 | 02209/00013 | Washer | |
| 50 | 04033/11292 | Coupling sleeve | |
| 51 | 02027/08020 | Cap screw M8x20 DIN912 | |
| 87232/20107 | 87232/20107 | Suspension, rigth |
