Каталог запасных частей к технике: JCB VM-115 D/PD. Гидронасос/Drive pump
1
12
13
14
15
16
17
19
19
20
21
21
22
23
23
24
25
41
42
43
45
46
47
48
49
50
51
52
53
54
54
55
55
56
61
62
63
65
67
68
69
70
71
73
75
76
76
81
82
83
84
85
86
87
88
89
90
90
91
91
92
94
95
96
97
98
99
100
105
106
107
108
109
110
111
112
113
114
115
115
116
117
118
120
121
122
123
124
125
127
128
128
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
146
147
148
149
150
151
152

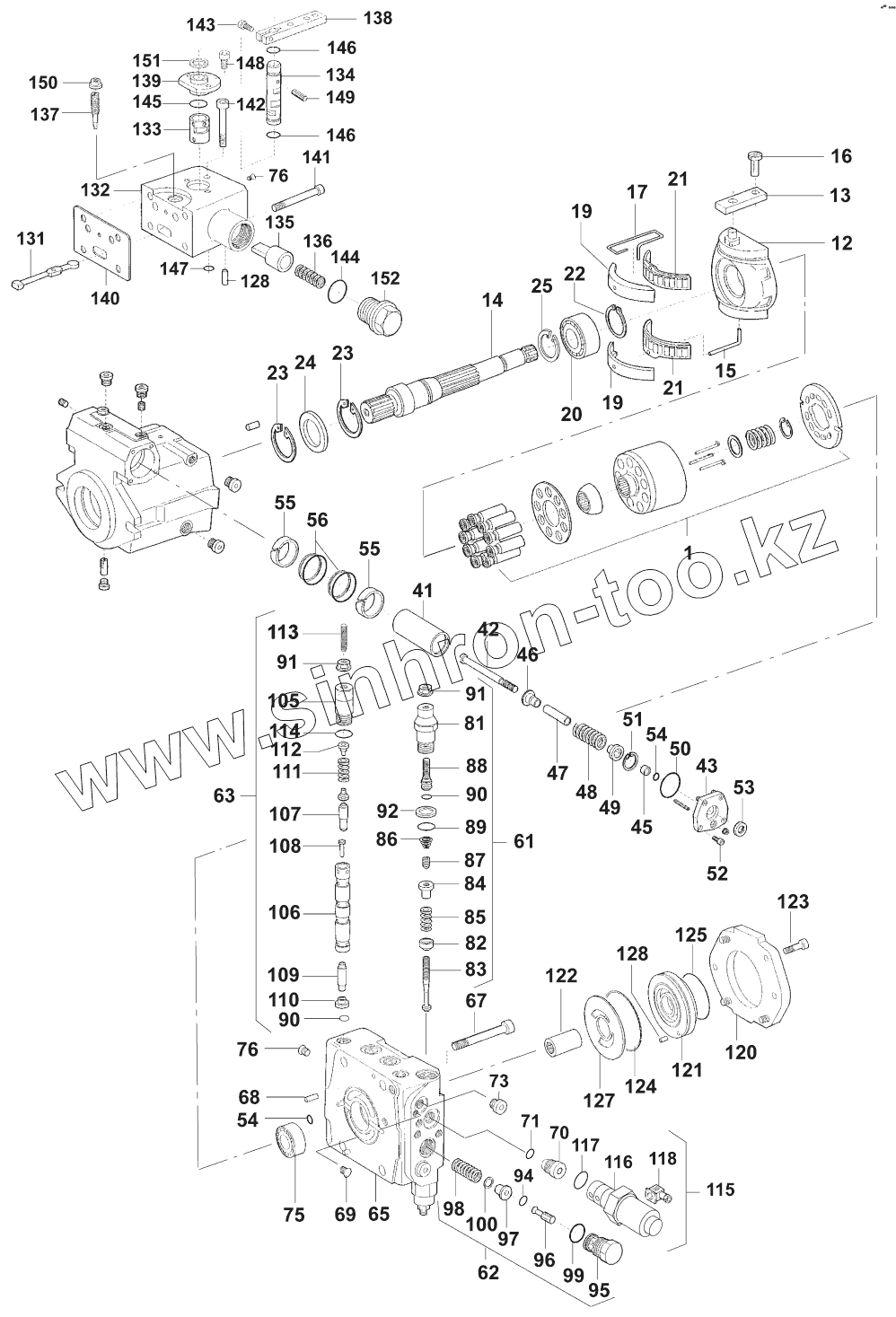

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07221/50390 | Driving gear, hydraulically | |
| 12 | 07221/50381 | Bearing | |
| 13 | 07221/50382 | Sliding | |
| 14 | 07221/50383 | Shaft | |
| 15 | 04033/25589 | Wire | |
| 16 | 07221/50384 | Pin | |
| 17 | 07221/50385 | Wire | |
| 19 | 04050/69143 | Pair of bearing shells | |
| 20 | 04033/25592 | Cylindrical roller bearing | |
| 21 | 07221/50386 | Pair of cage | |
| 22 | 02305/00035 | Retaining ring | |
| 23 | 07221/50387 | Retaining ring | |
| 24 | 04050/69146 | Shaft seal ring | |
| 25 | 02304/00067 | Retaining ring | |
| 41 | 07221/50401 | Piston | |
| 42 | 07221/50402 | Rod | |
| 43 | 07221/50403 | Cover | |
| 45 | 04050/69160 | Ring | |
| 46 | 07221/50405 | Spring retainer | |
| 47 | 07221/50406 | Spacer bushing | |
| 48 | 07221/50407 | Compression spring | |
| 49 | 07221/50408 | Spring retainer | |
| 50 | 07221/50409 | O-ring | |
| 51 | 02304/00053 | Retaining ring | |
| 52 | 07221/50410 | Cap screw | |
| 53 | 07221/50411 | Hexagon nut | |
| 54 | 07221/50412 | O-ring | |
| 55 | 07221/50413 | Guide ring | |
| 56 | 07221/50414 | Ring | |
| 61 | 07221/50430 | Preesure relief valve | |
| 62 | 07210/17430 | Closure | |
| 63 | 07221/50460 | Valve | |
| 65 | 07232/50565 | Connection plate | |
| 67 | 07221/50425 | Cap screw | |
| 68 | 07221/50426 | Parallel pin | |
| 69 | 07241/20311 | Plug | |
| 70 | 07232/50570 | Restrictor valve | |
| 71 | 07232/50571 | O-ring | |
| 73 | 04033/25573 | Screw plug | |
| 75 | 04033/25665 | Cylindrical roller bearing | |
| 76 | 07221/50421 | Plug | |
| 81 | 07221/50433 | Screw plug | |
| 82 | 07221/50434 | Guide | |
| 83 | 07221/50435 | Levelling spindle | |
| 84 | 07221/50436 | Bracket | |
| 85 | 07221/50437 | Compression spring | |
| 86 | 04901/20071 | Compression spring | |
| 87 | 07221/50438 | Heandless screw | |
| 88 | 07221/50439 | Adjuing screw | |
| 89 | 04033/25684 | O-ring | |
| 90 | 04033/23163 | O-ring | |
| 91 | 07221/50440 | Nut | |
| 92 | 07221/50441 | Back-up ring | |
| 94 | 04050/69191 | Seal ring | |
| 95 | 07210/17425 | Screw plug | |
| 96 | 07221/50452 | Valve piston | |
| 97 | 07221/50453 | Spring retainer | |
| 98 | 07221/50454 | Compression spring | |
| 99 | 07210/17427 | O-ring | |
| 100 | 04902/20135 | Shim ring | |
| 105 | 07221/50472 | Screw plug | |
| 106 | 07221/50461 | Bushing | |
| 107 | 07221/50462 | Piston | |
| 108 | 07221/50463 | Piston | |
| 109 | 07221/50464 | Valve piston | |
| 110 | 07221/50465 | Guide | |
| 111 | 07221/50466 | Compression spring | |
| 112 | 07221/50467 | Spring retainer | |
| 113 | 07221/50468 | Adjusting screw | |
| 114 | 07221/50469 | O-ring | |
| 115 | 07232/50575 | Way valve, cpl. | |
| 115 | 07232/50576 | Sealing kit | |
| 116 | 04050/69157 | Slider | |
| 117 | 04050/69187 | O-ring | |
| 118 | 08362/01010 | Plug socket | |
| 120 | 07221/50481 | Intermediate flange | |
| 121 | 07232/50577 | Seal ring | |
| 122 | 07221/50483 | Shaft | |
| 123 | 07221/50484 | Cap screw | |
| 124 | 07221/50485 | O-ring | |
| 125 | 07232/50578 | O-ring | |
| 127 | 07221/50486 | Wear plate | |
| 128 | 07221/50487 | Parallel pin | |
| 131 | 07221/50488 | Lever | |
| 132 | 07221/50495 | Housing | |
| 133 | 07221/50496 | Bushing | |
| 134 | 04050/69208 | Shaft | |
| 135 | 07221/50498 | Bushing | |
| 136 | 07221/50499 | Compression spring | |
| 137 | 07221/50491 | Pin | |
| 138 | 07221/50492 | Lever | |
| 139 | 07221/50500 | Cover | |
| 140 | 04050/69211 | Gasket | |
| 141 | 07221/50493 | Cap screw | |
| 142 | 04901/20114 | Cap screw | |
| 143 | 04033/25726 | Cap screw | |
| 144 | 04033/25683 | O-ring | |
| 145 | 07221/50502 | O-ring | |
| 146 | 04033/25633 | O-ring | |
| 147 | 02772/00603 | O-ring | |
| 148 | 07221/50503 | Cap screw | |
| 149 | 07221/50504 | Needle | |
| 150 | 04033/25682 | Nut | |
| 151 | 04901/20120 | Shim ring | |
| 152 | 07221/50506 | Screw plug | |
| 07232/50551 | 07232/50551 | Drive pump |
