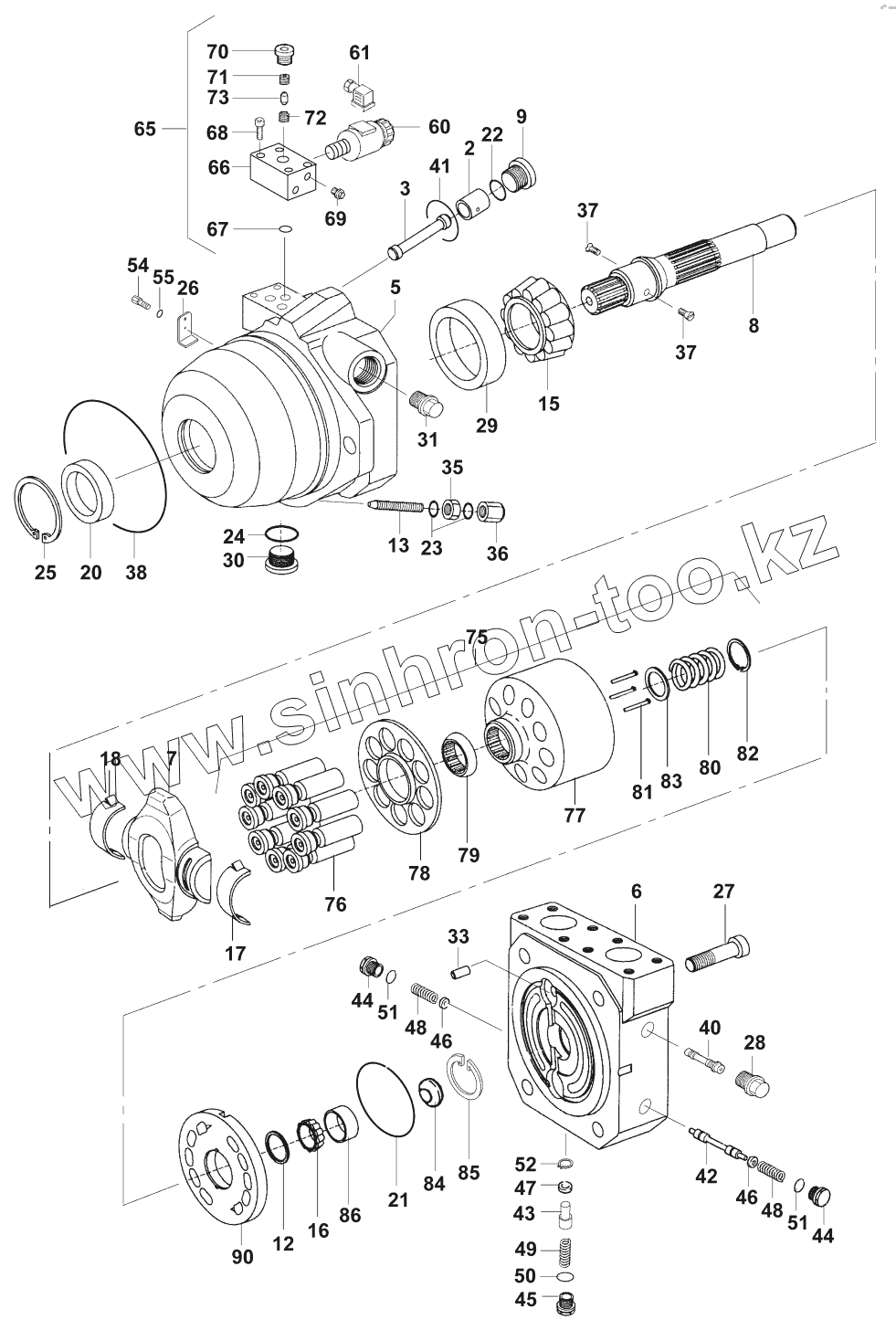

Каталог запасных частей к технике: JCB VM-115 D/PD. Гидромотор/Variable displacement motor
2
3
5
6
7
8
9
12
13
15
16
17
18
20
21
22
23
24
25
26
27
28
29
30
31
33
35
36
37
37
38
40
41
42
43
44
44
45
46
46
47
48
48
49
50
51
51
52
54
55
60
61
65
66
67
68
69
70
71
72
73
75
76
77
78
79
80
81
82
83
84
85
86
90
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 07222/30431 | Piston | |
| 3 | 07222/30432 | Piston rod | |
| 5 | 07222/20621 | Housing | |
| 6 | 07222/20622 | Plate | |
| 7 | 07222/30435 | Valve | |
| 8 | 07222/20623 | Shaft | |
| 9 | 07222/30436 | Screw plug | |
| 12 | 07222/30437 | Disc | |
| 13 | 07222/30438 | Screw | |
| 15 | 07222/30439 | Roller bearing | |
| 16 | 07222/30440 | Roller bearing | |
| 17 | 07222/30441 | Bearing shells | |
| 18 | 07222/30442 | Bearing shells | |
| 20 | 07222/30425 | Shaft seal ring | |
| 21 | 07222/30443 | O-ring | |
| 22 | 07222/30444 | O-ring | |
| 23 | 07222/30445 | O-ring | |
| 24 | 07222/30446 | Seal ring | |
| 25 | 07222/30447 | Retaining ring | |
| 26 | 07222/20624 | Angle | |
| 27 | 07222/30448 | Cap screw M14x60 DIN912 | |
| 28 | 07222/30449 | Screw plug | |
| 29 | 07222/30450 | Ring | |
| 30 | 07222/30451 | Screw plug | |
| 31 | 07222/30452 | Plug | |
| 33 | 07222/30453 | Parallel pin | |
| 35 | 07222/30454 | Nut | |
| 36 | 07222/30455 | Nut | |
| 37 | 07222/30456 | Countersunk bolt M5x16 DIN7991 | |
| 38 | 07222/20625 | O-ring | |
| 40 | 07222/20626 | Valve | |
| 41 | 07222/20627 | Ring | |
| 42 | 07222/20628 | Piston | |
| 43 | 07222/20629 | Piston | |
| 44 | 07222/20630 | Screw plug | |
| 45 | 07222/20631 | Screw plug | |
| 46 | 07222/20632 | Washer | |
| 47 | 07222/20633 | Visor | |
| 48 | 07222/20634 | Compression spring | |
| 49 | 07222/20635 | Compression spring | |
| 50 | 07222/20636 | O-ring | |
| 51 | 07222/20637 | O-ring | |
| 52 | 07222/20638 | Retaining ring | |
| 54 | 07222/20639 | Screw | |
| 55 | 07222/20640 | Gasket | |
| 60 | 07222/30410 | Way valve, cpl. | |
| 61 | 08362/01015 | Plug socket | |
| 65 | 07222/20660 | Housing, cpl. | |
| 66 | 07222/30461 | Housing | |
| 67 | 07225/20624 | O-ring | |
| 68 | 07222/30462 | Cap screw M6x40 DIN912 | |
| 69 | 07222/30463 | Plug | |
| 70 | 07222/30449 | Screw plug | |
| 71 | 07241/20297 | Screw | |
| 72 | 07241/20298 | Screw | |
| 73 | 07222/30402 | Pin | |
| 75 | 07222/30485 | Driving gear | |
| 76 | 07222/20671 | Piston, kpl. | |
| 77 | 07222/20672 | Cylinder | |
| 78 | 07222/30472 | Plate | |
| 79 | 07222/30473 | Ball | |
| 80 | 07222/30474 | Compression spring | |
| 81 | 07222/30475 | Pin | |
| 82 | 07222/30476 | Retaining ring | |
| 83 | 07222/30477 | Supporting ring | |
| 84 | 07222/30478 | Disc spring | |
| 85 | 07222/30479 | Retaining ring | |
| 86 | 07222/30480 | Adjusting device | |
| 90 | 07222/30486 | Connection plate | |
| 07222/20610 | 07222/20610 | Variable displacement motor, cpl. | |
| 07222/20611 | 07222/20611 | Sealing kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
