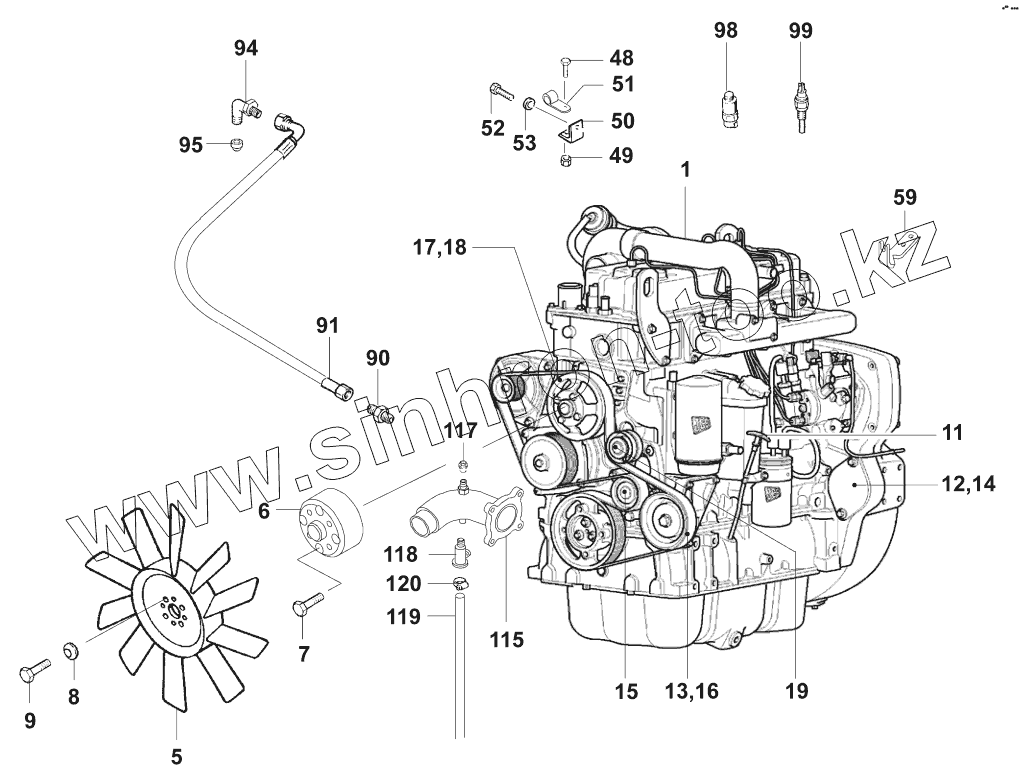

Каталог запасных частей к технике: JCB VM-115 D/PD. Двигатель/Structure motor
1
5
6
7
8
9
11
12
13
14
15
16
17
18
19
48
49
50
51
52
53
59
90
91
94
95
98
99
115
117
118
119
120
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07232/50099 | Diesel engine | |
| 5 | 07221/50765 | Fan wheel | |
| 6 | 07232/50452 | Spacer piece | |
| 7 | 02021/08040 | Hexagon screw M8x40 DIN933 | |
| 8 | 02806/00516 | Disc spring | |
| 9 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 11 | 07232/50453 | Oil dipstick | |
| 12 | 07232/50454 | Cover | |
| 13 | 02021/08065 | Hexagon screw M8x65 DIN933 | |
| 14 | 07232/50458 | O-ring | |
| 15 | 07232/50475 | Idler pulley | |
| 16 | 07232/50471 | Fan belt | |
| 17 | 07232/50472 | Fan pulley | |
| 18 | 07232/50473 | Fan hub | |
| 19 | 07232/50474 | Idler pulley | |
| 48 | 02021/06020 | Hexagon screw M6x20 DIN933 | |
| 49 | 02118/30600 | Security nut VM6 DIN980 | |
| 50 | 04029/69079 | Fastening angle | |
| 51 | 02503/06113 | Pipe clip | |
| 52 | 02021/08020 | Hexagon screw M8x20 DIN933 | |
| 53 | 02201/00008 | Washer 8,4 DIN125 | |
| 59 | 07232/50049 | Bracket | |
| 90 | 02521/10165 | Nipple | |
| 91 | 02883/39370 | Hose 770mm | |
| 94 | 02522/23215 | Nipple | |
| 95 | 02528/00415 | Screw plug | |
| 98 | 08105/00101 | Switch | |
| 99 | 08500/01116 | Transmitter | |
| 115 | 07232/50060 | Nipple | |
| 117 | 02528/00418 | Plug | |
| 118 | 02531/00011 | Exhaust valve | |
| 119 | 02880/51120 | Hose 600 mm | |
| 120 | 02322/01209 | Hose clamp | |
| 87232/50006 | 87232/50006 | Structure motor, cpl. |
