Каталог запасных частей к технике: JCB-3CX (Часть 2). CIRCUIT, STABILISER SIDESHIFT,7'4"FRAME

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 4CX (2015) JCB-3CX (Часть 1) (2015) JCB-3CX (Часть 1) (2015) JCB-3CX (Часть 2) (2015) JCB-3CX (Часть 2) (2015) JCB-3CX Super (Часть 1) (2015) JCB-3CX Super (Часть 2) (2015) VM-115 D/PD (2006) VM-132D/PD (2006) VM-146D/PD (2005) VM-1500-1601100 (2006) VM-1500-1601300 (2006) VM-200D/PD (2005) VM-46D/PD (2006) VM-75D/PD (2006) VMТ-270/280 (2005) VMТ-390/400 (480/500) (2005)

Схема > Не выбрано RINGS HYDRAULIC HOSES RINGS AIR CONDITIONING SYSTEM ADAPTOR PLATES BOOM HOSE AND PIPEWORK LOADER VALVE TO EXC VALVE TO TANK, S/SHIFT MANUAL AND PCH CIRCUIT, NEUTRAL AUXILIARY LOWFLOW GEAR PUMP CIRCUIT, HAMMER EXC.VALVE TO K/POST CENTREMOUNT, MANUAL OR PCH CIRCUIT, LOADER ARM CIRCUIT, LOADER ARM LIFT RAM, NO SRS HOSE BURST PROTECTION CIRCUIT, LOADER ARM LIFT RAM, WITH SRS HOSE BURST PROTECTION CIRCUIT, LOADER ARM SHOVEL RAM HOSE BURST PROTECTION CIRCUIT, LOADER ARM SHOVEL RAM HOSE BURST PROTECTION CIRCUIT, AUXILIARY LOADER 2WS (3/8" BSP PIPEWORK) CIRCUIT, AUXILIARY LOADER 2WS (5/8" BSP PIPEWORK) CIRCUIT AUXILIARY LOADER LOCKOUT, (3/8"BSP PIPEWORK) (From: , To: M1619363) CIRCUIT, COOLER TRANSMISSION 2 WHEEL STEER (From: , To: M1338260) CIRCUIT, COOLER HYDRAULIC OIL 2 WHEEL STEER (From: , To: M1335041) CIRCUIT, COOLER HYDRAULIC OIL 2 WHEEL STEER (From: M1335042 , To: M1338260) CIRCUIT, COOLER HYDRAULIC OIL FIELD FIX (From: M0982848 , To: M1335041) CIRCUIT, COOLERS HYDRAULIC & TRANS 2WS MANUAL TRANSMISSION (From: M1338261 , To: ) CIRCUIT, COOLERS HYDRAULIC & TRANS 2WS P/S & A/S TRANSMISSIONS (From: M1338261 , To: ) CIRCUIT, STEERING 2WS 2WD CIRCUIT, STEERING PRIORITY VALVE CIRCUIT, SLEW/SWING 7'4 REAR FRAME CIRCUIT, SLEW/SWING 7'8 REAR FRAME CIRCUIT, SLEW/SWING CENTREMOUNT CIRCUIT, SLEW/SWING CENTREMOUNT CIRCUIT, STABILISER SIDESHIFT,7'8"FRAME CIRCUIT, STABILISER SIDESHIFT,7'4"FRAME CIRCUIT, STABILISER SIDESHIFT,7'8"FRAME WITH HOSE BURST PROTECTION, OPTIONAL CIRCUIT, STABILISER SIDESHIFT,7'4"FRAME WITH HOSE BURST PROTECTION CIRCUIT, STABILISER SIDESHIFT,7'4"FRAME WITH HOSE BURST PROTECTION ITALIAN BUILD (From: M0963771) CIRCUIT, STABILISER CENTREMOUNT CIRCUIT, BOOM RAM 14'0" CIRCUIT, DIPPER RAM 14'0" DIPPERS GEAR PUMP CIRCUIT, BUCKET RAM MONO DIPPER, 14'0" CIRCUIT, BUCKET RAM EXTRADIG DIPPER 14'0" (From: , To: M1620807) CIRCUIT, BUCKET RAM EXTRADIG DIPPER 14'0" (From: M1620808 , To: ) CIRCUIT, JAW BUCKET MONO DIPPER 14' CIRCUIT, EXCAVATOR HAMMER SHUT-OFF VALVES (From: , To: M1618001) CIRCUIT, HYDRACLAMP (From: , To: M1616771) CIRCUIT, HYDRACLAMP STICK CONTROLS (From: M1616772 , To: ) CIRCUIT, EXCAVATOR HAMMER SHUT-OFF VALVES (From: M1618002 , To: ) CIRCUIT, EXCAVATOR CHASSIS HOSE GUIDES CENTREMOUNT CIRCUIT, AUXILIARY HAND HELD TOOLS GEAR PUMP (From: , To: M1344633) CIRCUIT AUXILIARY HAND HELD TOOLS, GEARPUMP, KIT (From: M1344634 , To:) CIRCUIT AUXILIARY HAND HELD TOOLS, EXTENDING DIPPER, GEARPUMP, FACTORY FIT (From: M1617630) CIRCUIT AUXILIARY HAND HELD TOOLS, FIXED DIPPER, GEARPUMP, FACTORY FIT COOLER, COMBINATION RADIATOR/HYDRAULIC & TRANSMISSION, 2WS (From: , To: M1338260) COOLER, COMBINATION RADIATOR/HYDRAULIC & TRANSMISSION, NON CHARGED AIR COOLER (From: M1338261) CIRCUIT, AUXILIARY HAMMER FEED FIXED DIPPER 14' (To: M0981041) CIRCUIT, AUXILIARY HAMMER FEED, FIXED DIPPER 14' (From: M981042, To: M1332948) CIRCUIT, AUXILIARY HAMMER FEED EXTN.DIPPER 1400 & 1550,+ SOLENOID VALVE CIRCUIT, AUXILIARY HAMMER 1" RETURN 14' CIRCUIT, AUXILIARY BREAKER 3/4" RETURN 14' FIXED DIPPER (From: , To: M1332948) CIRCUIT, HAMMER CHASSIS RETURN SIDESHIFT, MANUAL OR PCH (From: M1332949 , To:) CIRCUIT, HAMMER KINGPOST TO HAMMER FIXED DIPPER 14', MANUAL OR PCH (From: M1332949 , To: ) CIRCUIT, HAMMER KINGPOST TO HAMMER EXT DIPPER 14', MANUAL OR PCH CIRCUIT, HAMMER KINGPOST TO HAMMER EXT DIPPER 15', MANUAL OR PCH CIRCUIT, HAMMER CHASSIS FEED FIXED DIPPER, SIDESHIFT, MANUAL OR PCH (From: M1332949 , To: ) CIRCUIT, HAMMER CHASSIS FEED EXT DIPPER, SIDESHIFT, MANUAL OR PCH CIRCUIT, HAMMER DIVERTER VALVE EXT DIPPER, SIDESHIFT, MANUAL OR PCH (From: , To: M1705792) CIRCUIT, HAMMER DIVERTER VALVE EXT DIPPER, SIDESHIFT, MANUAL OR PCH (From: M1705793 , To: ) CIRCUIT, HAMMER AUXILIARY VALVE EXT DIPPER, SIDESHIFT, MANUAL OR PCH CIRCUIT, HAMMER AUXILIARY VALVE EXT DIPPER, CENTREMOUNT, MANUAL OR PCH CIRCUIT, AUX VALVE TO CHANGEOVER VALVE POWERSLIDE, MANUAL OR PCH CIRCUIT, AUXILIARY BREAKER, 1" RETURN TO TANK, SIDESHIFT, GEAR PUMP (From: , To: M1332948) CIRCUIT, AUXILIARY BREAKER,HYD.COOLING GEAR PUMP CIRCUIT, BREAKER MONO DIPPER GEAR PUMP CIRCUIT, HBCV DIPPER RAM GEAR PUMP DIPPER RAM PIPEWORK CIRCUIT, HBCV BOOM RAM GEAR PUMP CIRCUIT, HBCV BOOM RAM V.FLOW PUMP BOOM RAM PIPEWORK BOOM RAM PIPEWORK CIRCUIT, LOADER LIFT SUSPENSION GEAR PUMP MACHINES CIRCUIT, LOADER LIFT SUSPENSION GEAR PUMP MACHINES WITH 3 SPOOL & RESET (From: M1618463 , To: ) CIRCUIT, BREAKER EXTRADIG DIPPER SCOTT'S BUILD 5/8"BSP PIPEWORK CIRCUIT, AUXILIARY EXTENTION RAM BREAKER FEED EXTRADIG DIPPER 1400 SCOTTS CIRCUIT, AUXILIARY BACKHOE, EXTRADIG QUICKHITCH CIRCUIT, POWERSLIDE RAM, FIXED DIPPER HOSE SLEEVING POWERSLIDE CIRCUIT PRIORITY TO LOADER VALVES, MANUAL OR PCH CIRCUIT PRIORITY TO AUX. EXC VALVES, MANUAL OR PCH HOSE AND PIPEWORK POWERSLIDE, EXTENDING DIPPER NO HAMMER HOSE AND PIPEWORK AUXILIARY FIXED DIPPER 14', BI-DIR PUMP 33/23 CCR MAIN HYDRAULIC 82 HP BUILDS PUMP, TRANSMISSION SYNCROSHUTTLE VALVE-LOADER 2 SPOOL FLOAT GEAR PUMP VALVE-LOADER 2 SPOOL FLOAT DETAILS, GEAR PUMP (From: M0964125 , To: ) VALVE-LOADER 2 SPOOL FLOAT & RESET GEAR PUMP VALVE-LOADER 2 SPOOL FLOAT & RESET DETAILS, GEAR PUMP (From: M0964369 , To: ) VALVE-LOADER 3 SPOOL FLOAT & RESET GEAR PUMP (From: , To: M0964129) VALVE-LOADER 3 SPOOL FLOAT & RESET DETAILS, GEAR PUMP (From: M0964130 , To: M1618462) VALVE-LOADER 3 SPOOL FLOAT & RESET DETAILS, GEAR PUMP (From: M1618463 , To: ) VALVE-LOADER 3 SPOOL FLOAT GEAR PUMP VALVE-LOADER 3 SPOOL FLOAT DETAILS, GEAR PUMP (From: M0964129 , To: ) VALVE-LOADER 3 SPOOL FLOAT RESET & DETENT GEAR PUMP (From: M0964369 , To: ) VALVE-LOADER 3 SPOOL FLOAT RESET & DETENT DETAILS, GEAR PUMP (From: M0964369 , To: ) VALVE-LOADER SPOOL MECHANICAL DETENT 2,3 SPOOL LOADER VALVE, GEAR PUMP (From: , To: M964XXX) VALVE-LOADER SPOOL ELECTRIC DETENT 2,3 SPOOL LOADER VALVE, GEAR PUMP (From: , To: M964XXX) VALVE-LOADER MAIN RELIEF 2/3 SPOOL GEAR PUMP (From: , To: M0964XXX) VALVE-LOADER UNLOADER VALVE 2/3 SPOOL GEAR PUMP (From: , To: M0964XXX) VALVE-LOADER AUXILIARY RELIEF 2/3 SPOOL GEAR PUMP (From: , To: M0964XXX) VALVE, AUXILIARY BACKHOE, GEAR PUMP POWERED SIDESHIFT & FIXED DIPPER BREAKER VALVE, AUXILIARY BACKHOE, GEAR PUMP AUXILIARY & EXTRADIG DIPPER BREAKER VALVE, AUXILIARY COMPONENTS EXCAVATOR, GEAR PUMP, MANUAL OR PCH VALVE ADAPTERS EXCAVATOR 14' & 15'6" VALVE-EXCAVATOR WITH SPOOL GAITERS SIDESHIFT 14'0" VALVE-EXCAVATOR WITHOUT SPOOL GAITER SIDESHIFT 14'0" VALVE, ROTARY CLAMP EXCAVATOR VALVE SIDESHIFT, GEAR PUMP VALVE, ROTARY CLAMP EXCAVATOR VALVE SIDESHIFT, GEAR PUMP VALVE-EXCAVATOR SIDESHIFT, RELIEF VALVE-EXCAVATOR CENTREMOUNT ADAPTORS VALVE-EXCAVATOR CENTREMOUNT VALVE-EXCAVATOR CENTREMOUNT, RELIEF VALVE-EXCAVATOR CENTREMOUNT VALVE-EXCAVATOR CENTREMOUNT, RELIEF 25/223012 & 25/223013 FILTER, HYDRAULIC LUBRICANTS & FILTERS VALVE, PRIORITY GEAR PUMP VALVE, STEERING 2WS VALVE, STEERING 2WS-USA BUILDS 250 LOAD SENSING VALVE, DIVERTER VALVE FLOW REGULATOR HAMMER CIRCUIT SPANISH BUILD VALVE SOLENOID VALVE SOLENOID, DIVERTER HAMMER VALVE SOLENOID, DIVERTER POWER SIDESHIFT VALVE SOLENOID LOCKUP CONVERTER RAM, LIFT STANDARD 50MM ROD X 80MM CYL (From: , To: 4-MAR-2005) RAM, LIFT STANDARD 50MM ROD X 80MM CYL RAM, LIFT STANDARD 50MM ROD X 80MM CYL (From: M1620068 , To: ) RAM, SHOVEL 40MM ROD X 70MM CYL (From: , To: 4-MAR-2005) RAM, SHOVEL 40MM ROD X 70MM CYL (From: 4-MAR-2005 , To: M1616063) RAM, SHOVEL 40MM ROD X 70MM CYL (From: M1616064 , To: ) RAM, STEERING, 2WD RAM, STEERING, 4WD RAM, CLAMSHOVEL 6 IN 1 673MM PIVOT CENTRES (From: , To: 15-APR-2005) RAM, CLAMSHOVEL 6 IN 1 673MM PIVOT CENTRES (From: 15-APR-2005 , To: ) RAM, CLAMSHOVEL 6 IN 1 590MM PIVOT CENTRES RAM, CLAMSHOVEL 6 IN 1 590MM PIVOT CENTRES RAM, BOOM STANDARD LIFT 110MM CYL X 60MM ROD (From: , To: M1618773) RAM, BOOM STANDARD LIFT 110MM CYL X 60MM ROD (From: M1618774 , To: ) RAM, BOOM STANDARD LIFT,14'EXC END DAMPED,110MM CYL X 60MM ROD (From: , To: 4-FEB-2005) RAM, BOOM STANDARD LIFT,14'EXC END DAMPED,110MM CYL X 60MM ROD (From: 4-FEB-2005 , To: M1617835) RAM, BOOM STANDARD LIFT,14'EXC END DAMPED,110MM CYL X 60MM ROD (From: M1617836 , To: ) RAM, BOOM HEAVY LIFT,14'EXC END DAMPED,120MM CYL X 65MM ROD RAM, DIPPER 14' STANDARD LIFT 100MM CYL X 60MM ROD RAM, DIPPER HEAVY LIFT-USA 110MM CYL X 60MM ROD DEEP PROFILE BUCKET RAM, BUCKET MONO DIPPER 14' (From: , To: M0960417) RAM, BUCKET MONO DIPPER 14' (From: M0960418 , To: M1346837) RAM, BUCKET MONO DIPPER 14' (From: M1346838 , To: ) RAM, BUCKET EXTRADIG DIPPER (From: M0963955 , To: M1346859) RAM BUCKET EXTRADIG DIPPER (From: M1346860 , To: ) RAM, EXTENSION EXTRADIG DIPPER (From: , To: M0960855) RAM, EXTENSION EXTRADIG DIPPER (From: M0960856 , To: M1345963) RAM EXTENSION EXTRADIG DIPPER (From: M1345964 , To: ) RAM, STABILISER SIDESHIFT (From: , To: M0967612) RAM, STABILISER SIDESHIFT (From: M0967613 , To: 15-6-2008) RAM STABILISER SIDESHIFT RAM, STABILISER CENTREMOUNT RAM, STABILISER CENTREMOUNT From: M1617789 , To: RAM, SLEW/SWING CENTREMOUNT RAM, SLEW/SWING SIDESHIFT RAM, JAW BUCKET RAM, QUICKHITCH RAM, QUICKHITCH SHOVEL RAM POWERED SIDESHIFT 7'4" REARFRAME RAM POWERED SIDESHIFT 7'8" REARFRAME RAM, QUICKHITCH ATTACHMENT AXLE LOCKSTOPS AXLE ASSEMBLY, 2WS 4WD STEERING 448/42400, 448/55000 KNUCKLE, 2WS 4WD STEERING AXLE 35KPH 448/42400, 448/55000 HUB & COMPONENTS 2WS 4WD STEERING AXLE 448/42400, 448/55000 DIFFERENTIAL, 2WS 4WD STEERING AXLE 448/42400, 448/55000 AXLE PIVOT PIN & GREASING 2WS, 2WD/4WD AXLE ASSEMBLY, 2WS 4WD STEERING 448/57390 20" FRONT TYRES KNUCKLE, 2WS 4WD STEERING AXLE 35KPH 448/57390 HUB & COMPONENTS 2WS 4WD STEERING AXLE 448/57390 DIFFERENTIAL, 2WS 4WD STEERING AXLE 448/57390 AXLE ASSEMBLY, 2WS 4WD STEERING 448/57400 KNUCKLE, 2WS 4WD STEERING AXLE 30KPH & 40KPH 448/57400 HUB & COMPONENTS 2WS 4WD STEERING AXLE 448/57400 DIFFERENTIAL, 2WS 4WD STEERING AXLE 448/57400 AXLE ASSEMBLY, 2WS 4WD STEERING 15.785:1 RATIO 448/57470 & 448/57480 KNUCKLE, 2WS 4WD STEERING AXLE 15.785:1 RATIO 448/57470 & 448/57480 HUB & COMPONENTS 2WS 4WD STEERING AXLE 15.785:1 RATIO 448/57470 & 448/57480 DIFFERENTIAL, 2WS 4WD STEERING AXLE 15.785:1 RATIO 448/57470 & 448/57480 AXLE ASSEMBLY, 2WS 4WD STEERING 15.785:1 RATIO 448/57510 KNUCKLE, 2WS 4WD STEERING AXLE 15.785:1 RATIO 448/57510 HUB & COMPONENTS 2WS 4WD STEERING AXLE 15.785:1 RATIO 448/57510 DIFFERENTIAL, 2WS 4WD STEERING AXLE 15.785:1 RATIO 448/57510 AXLE ASSEMBLY, 2WS 2WD STEERING POWER TRACKROD 2WS, 4WD 448/57990, 2WS, 4WD STEER AXLE ASSY 14.123:1 448/57999 WHEEL HUB, 448/42600 448/57999 WHEEL HUB, 448/42700 448/57999 DRIVEHEAD 448/57990 DIFFERENTIAL ASSY 458/10723 AXLE LOCKSTOPS 450/44530 PD70 PAD MOUNT AXLE 15.78:1 REVERSE LSD 450/44560 PD70 PAD MOUNT AXLE 13.708:1 REVERSE LSD 450/44570 PD70 PAD MOUNT AXLE 18.16:1 REVERSE LSD, AUSTRIA 450/44580 PD70 PAD MOUNT AXLE 13.7:1 REVERSE MAXTRAC 450/44590 PD70 PAD MOUNT AXLE 13.708:1 REVERSE LSD 450/44600 PD70 PAD MOUNT AXLE 13.7:1 REVERSE MAXTRAC 450/44610 PD80 PAD MOUNT AXLE 13.708:1 REVERSE LSD 450/44620 PD80 PAD MOUNT AXLE 13.708:1 REVERSE MAXTRAC 450/44630 PD80 PAD MOUNT AXLE 13.708:1 REVERSE LSD 450/44640 PD80 PAD MOUNT AXLE 13.708:1 REVERSE MAXTRAC 450/44820 PD70 PAD MOUNT AXLE 15.78:1 REVERSE MAXTRAC, HAYES 450/44790 PD70 PAD MOUNT AXLE 15.78:1 REVERSE MAXTRAC, HAYES 450/44800 PD70 PAD MOUNT AXLE 15.78:1 REVERSE LSD, HAYES 450/44810 PD70 PAD MOUNT AXLE 15.78:1 REVERSE LSD, HAYES 450/44830, PRIMER PD70 PAD MOUNT AXLE 15.78:1 REVERSE MXTC HAYES 450/44840 PD70 PAD MOUNT AXLE 13.708:1 REVERSE LSD, HAYES 450/44860 PD70 PAD MOUNT AXLE 13.7:1 REVERSE MAXTRAC, HAYES 458/10978 AXLE ARM & HUB ASSY 458/10979 AXLE ARM & HUB ASSY 458/10980 AXLE ARM & HUB ASSY 458/10981 AXLE ARM & HUB ASSY 458/10742 AXLE ARM & HUB ASSY 458/10765 AXLE ARM & HUB ASSY 458/M4516 AXLE ARM & HUB ASSY 458/10941 DRIVEHEAD ASSEMBLY 458/10947 DRIVEHEAD ASSEMBLY 458/10942 DRIVEHEAD ASSEMBLY 458/10946 DRIVEHEAD ASSEMBLY 458/10950 DRIVEHEAD ASSEMBLY 458/10951 DRIVEHEAD ASSEMBLY 458/11066 DRIVEHEAD ASSEMBLY 458/11067 DRIVEHEAD ASSEMBLY 458/11086 DRIVEHEAD ASSEMBLY 458/11102 DRIVEHEAD ASSEMBLY 458/11194 DRIVEHEAD ASSEMBLY 458/11193 DRIVEHEAD ASSEMBLY 458/11217 DRIVEHEAD ASSEMBLY 458/11212 DRIVEHEAD ASSEMBLY 458/11213 DRIVEHEAD ASSEMBLY 458/11224 DRIVEHEAD ASSEMBLY 458/11181 DRIVEHEAD ASSEMBLY 458/11182 DRIVEHEAD ASSEMBLY 450/10900 DIFFERENTIAL ASSY 450/26310 DIFFERENTIAL ASSY AXLE BREATHER REMOTE PROPSHAFT TRANS. / FRONT AXLE SYNCHROSHUTTLE TRANSMISSIONS PROPSHAFT TRANS. / FRONT AXLE ALL LUC & AWS AUTOSHIFT TRANSMISSIONS PROPSHAFT TRANS. / REAR AXLE SYNCROSHUTTLE PROPSHAFT TRANS. / REAR AXLE 4 SPEED POWERSHIFT PROPSHAFT TRANS. / REAR AXLE 6 SPEED AUTOSHIFT PROPSHAFT TRANS. / REAR AXLE 6 SPEED LUC AUTOSHIFT PROPSHAFT TRANS. / REAR AXLE SYNCROSHUTTLE, CENTREMOUNT WHEEL & TYRE ASSEMBLY FRONT, 2WS 2WD 11.0X16 WHEEL & TYRE ASSEMBLY FRONT, 2WS 2WD 11LX16 WHEEL & TYRE ASSEMBLY FRONT, 2WS 2WD 12.5X18 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 14X17.5 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 12.5X20 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 12.5X18 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 335/80 X 18 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD XM27 & XM37 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 12.5X18 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 400/70X18 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 340/80X18 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 16.0/70X20 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 400/70R20 WHEEL & TYRE ASSEMBLY FRONT, 2WS 4WD 405/70R20 WHEEL & TYRE ASSEMBLY REAR, 2WS 16.9X24 WHEEL & TYRE ASSEMBLY REAR, 2WS 19.5LX24 WHEEL & TYRE ASSEMBLY REAR, 2WS 18.4 X 26 WHEEL & TYRE ASSEMBLY REAR, 2WS 16.9X28 WHEEL & TYRE ASSEMBLY REAR, 2WS 18.4X30 WHEEL & TYRE ASSEMBLY REAR, 2WS 21LX24 WHEEL & TYRE ASSEMBLY REAR, 2WS 480/80X26 WHEEL & TYRE ASSEMBLY REAR, 2WS 440/80X28 WHEEL & TYRE ASSEMBLY REAR, 2WS 480/80R26 WHEEL & TYRE ASSEMBLY, SS6632 REAR, 2WS 18.4X30 WHEEL & TYRE ASSEMBLY 19.5LR28 XM27 & 500/70 R28 IT520 WHEEL & TYRE ASSEMBLY, REAR, 2WS 16.9XR28 XM37 MOUNTING BRACKET SYNCROSHUTTLE MANUAL MOUNTING TRANSMISSION TO ENGINE DIPSTICK & FILLER SYNCHROSHUTTLE MANUAL, TIER 2 DIPSTICK & FILLER SYNCHROSHUTTLE MANUAL TORQUE CONVERTER 84 HP ENGINES W300 3.01 RATIO 441/00670 - 4WD-2WS TRANSMISSION ASSY SYNCROSHUTTLE 441/00670 - 4WD-2WS EXTERNAL COMPONENTS 441/00670 - 4WD-2WS INTERNAL COMPONENTS 441/00670 - 4WD-2WS REVERSER UNIT 459/10097 441/00670 - 4WD-2WS 4WD CLUTCH ASSEMBLY 459/10119 441/00670 - 4WD-2WS GEAR CHANGE F530-10-6 GEARLEVER TURRET 459/10143/6 441/00740 - 2WD-2WS TRANSMISSION ASSY EXTERNAL COMPONENTS 441/00740 - 2WD-2WS INTERNAL COMPONENTS 441/00740 - 2WD-2WS REVERSER UNIT 459/10097 441/00740 - 2WD-2WS GEAR CHANGE GEARLEVER TURRET 459/10143/6 441/00680 - 4WD-2WS TRANSMISSION ASSY SYNCROSHUTTLE 441/00680 - 4WD-2WS EXTERNAL COMPONENTS 441/00680 - 4WD-2WS INTERNAL COMPONENTS 441/00680 - 4WD-2WS REVERSER UNIT 459/10097 441/00680 - 4WD-2WS 4WD CLUTCH ASSEMBLY 459/10119 441/00680 - 4WD-2WS GEAR CHANGE GEARLEVER TURRET 459/10143/6 441/00690 - 4WD-2WS TRANSMISSION ASSY SYNCROSHUTTLE 441/00690 - 4WD-2WS COMMON COMPONENTS 460/00230 441/00690 - 4WD-2WS REVERSER UNIT 459/10097 441/00690 - 4WD-2WS GEAR CHANGE TURRET 459/10143 GEARLEVER TURRET 459/10143/6 441/00690 - 4WD-2WS CLUTCH, 4WD 459/10119 PUMP & DRIVESHAFT SYNCROSHUTTLE GEARPUMP MACHINES BRAKE, SYSTEM SERVO BRAKE, PARKING SYNCROSHUTTLE BRAKE, SERVO DRIVE DISCONNECT ICELANDIC OPTION 320/40004 ENGINE 84 BHP T2 320/40214 ENGINE 84 BHP T3 320/40125 ENGINE 92 BHP T3 320/40123 ENGINE 100 BHP T3, SEE CATALOGUE 9812/2350 ENGINE MOUNTINGS 2WS FILTER, AIR 2WS & AWS, TIER 2 (From: , To: M1331875) FILTER, AIR 2WS & AWS, TIER 2 (From: M1331876 , To:) FILTER, AIR 2WS & AWS, TIER 3 AIR INDUCTION HOSES 2WS NAT/ASP T2 AIR INDUCTION HOSES 2WS TURBO T3 SILENCER & EXTENSION 2WS NAT/ASP, T2 (From: , To: M962757) SILENCER & EXTENSION 2WS NAT/ASP, T2 (From: M962758 , To: ) SILENCER & EXTENSION 2WS & AWS TURBO, T2 92/100BHP (From: , To: M964925) SILENCER & EXTENSION 2WS & AWS TURBO, T2 92/100BHP (From: M964926 , To: M967723) SILENCER & EXTENSION 2WS & AWS TURBO, T2 92/100BHP (From: M967724 , To: ) SILENCER & EXTENSION TURBO TIER 3 SILENCER & EXTENSION 2WS & AWS TURBO, MT3 92/100BHP RADIATOR FITTINGS & MOUNTINGS 2WS (From: , To: M963678) RADIATOR FITTINGS & MOUNTINGS 2WS (From: M963679 , To: M967723) RADIATOR FITTINGS & MOUNTINGS 2WS (From: M967724 , To: ) FAN GUARD 2WS (From: , To: M965200) FAN GUARD 2WS (From: M965201 , To:) RADIATOR FITTINGS & MOUNTINGS 2WS TIER 3 RADIATOR FITTINGS & MOUNTINGS 2WS TIER 3 CHARGE AIR COOLER BUILDS FAN GUARD 2WS T3 FAN GUARD 2WS T3 CHARGE AIR COOLED COMBINATION COOLER 2WS ASSEMBLY, T2 COMBINATION COOLER ASSEMBLY, T3 2WS NON CAC COMBINATION COOLER ASSEMBLY, T3 2WS & AWS RADIATOR & HOSES 2WS BUILDS T2 (From: , To: M960523) RADIATOR & HOSES 2WS BUILDS T2 (From: M960524 , To: M967723) RADIATOR & HOSES 2WS BUILDS T2 (From: M967724 , To: ) RADIATOR & HOSES 2WS 84/92BHP T3 RADIATOR & HOSES 2WS 100BHP T3, CHARGE AIR COOLED BUILDS CHARGE AIR COOLER & HOSES 2WS T3 COOLING FAN 20" 2WS BUILDS T2 NO Air Conditioning FRONT END DRIVE ACCESSORY T2 DIRECT DRIVE 20" FAN, 1.00 FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN & AIR CONDITIONING FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN (From: , To: EU0559705) FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN (From: EU0559805 , To: ) FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN & AIR CONDITIONING (From: , To: EU0559705) FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN & AIR CONDITIONING (From: EU0559805, To: ) FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN & AIR CONDITIONING (From: , To: EU0559705) FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN & AIR CONDITIONING (From: EU0559805 , To: ) FRONT END DRIVE ACCESSORY T2 WITH COOLING FAN & AIR CONDITIONING LOWER IDLER PULLEY SMALL LOWER IDLER PULLEY LARGE COOLING FAN 20" VISCOUS DRIVE T2 2WS & AWS COOLING FAN 20" VISCOUS DRIVE T2 2WS & AWS FRONT END DRIVE STANDARD T3 84/92BHP DIRECT DRIVE 20"FAN, 1.00, 2WS, QNA FRONT END DRIVE STANDARD T3 92BHP DIRECT DRIVE 20"FAN, 1.16, 2WS, QNA FRONT END DRIVE STANDARD T3 100BHP DIRECT DRIVE 21"FAN, 1.16, 2WS, CAC, QNA FRONT END DRIVE STANDARD T3 84/92BHP VISCOUS DRIVE 20"FAN, 1.16, 2WS, QT/QH FRONT END DRIVE STANDARD T3 92BHP VISCOUS DRIVE 20"FAN, 1.25, 2WS, QT/QH FRONT END DRIVE STANDARD T3 100BHP DIRECT DRIVE 21"FAN,1.16, 2WS, CAC,QT/QH FRONT END DRIVE AIRCON T3 84BHP DIRECT DRIVE 20"FAN,1.16, 2WS, QNA FRONT END DRIVE AIRCON T3 92BHP DIRECT DRIVE 20"FAN,1.25, 2WS, QNA FRONT END DRIVE AIRCON T3 100BHP DIRECT DRIVE 21"FAN,1.16, 2WS, QNA FRONT END DRIVE AIRCON T3 84BHP VISCOUS DRIVE 20"FAN,1.16, 2WS, QT FRONT END DRIVE AIRCON T3 84/92BHP VISCOUS DRIVE 20"FAN,1.25, 2WS, QH/QT FRONT END DRIVE AIRCON T3 92BHP VISCOUS DRIVE 20"FAN,1.37, 2WS, QH FRONT END DRIVE AIRCON T3 100BHP VISCOUS DRIVE 21"FAN,1.16, AWS, CAC, QNA FRONT END DRIVE AIRCON T3 92BHP VISCOUS DRIVE 20"FAN,1.37, AWS, QH COOLING FAN 20" DIRECT DRIVE T3 2WS BUILDS COOLING FAN 21" DIRECT DRIVE T3 2WS BUILDS COOLING FAN 20" VISCOUS DRIVE T3 AWS COOLING FAN 21" VISCOUS DRIVE T3 AWS FUEL PIPES FUEL TANK TO FILTER 2WS & AWS FUEL PIPES FUEL TANK TO FILTER VIA FUEL LUBRICITY FILTER, 2WS T2 FILTER FUEL SEDIMENT 2WS & AWS (From: , To: M973835) FILTER FUEL SEDIMENT COLD CLIMATE 2WS & AWS (From: , To: M973835) FILTER FUEL SEDIMENT 2WS & AWS (From: M973836 , To:) FILTER ELEMENT FUEL SEDIMENT COLD CLIMATE (From: M973836 , To:) FILTER FUEL LUBRICITY EXHAUSTER SERVO BRAKES ENGINE HEATER FUEL/WATER COLD CLIMATE INSTALLATION, STEEL TANK (From: , To: M1349343) ENGINE HEATER FUEL/WATER COLD CLIMATE INSTALLATION, PLASTIC TANK (From: M1349344 , To: ) ENGINE HEATER WATER & FUEL COLD CLIMATE OIL LEVEL DIPSTICK & TUBE STANDARD COMPRESSOR AIR CONDITIONING ENGINE OIL DRAIN CCV FILTER OUTLET

1

1

2

2

3

3

4

4

9

10

11

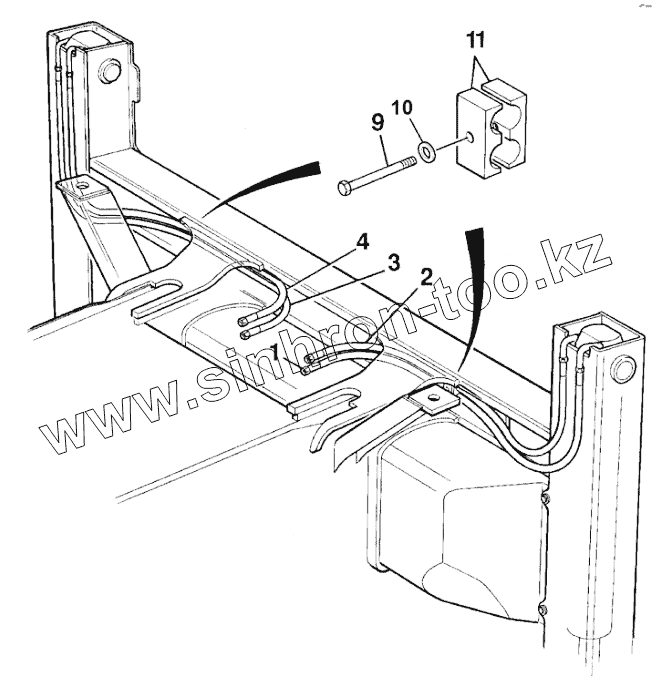

Позиция на иллюстрации	Заводской номер детали		Название детали
1	611/24600		Hose
1	332/G2530		Hose
2	611/20200		Hose
2	332/G2537		Hose
3	611/24600		Hose
3	332/G2537		Hose
4	611/20200		Hose
4	332/G2537		Hose
9	1315/3308Z		Bolt
10	1411/0003Z		Washer medium
11	821/10503		Clamp Top and Bottom
12	332/G1831		Clamp Hose

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
