Каталог запасных частей к технике: JCB-3CX (Часть 1). EARTH DRILL ATTACHMENTS LP SERIES

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 4CX (2015) JCB-3CX (Часть 1) (2015) JCB-3CX (Часть 1) (2015) JCB-3CX (Часть 2) (2015) JCB-3CX (Часть 2) (2015) JCB-3CX Super (Часть 1) (2015) JCB-3CX Super (Часть 2) (2015) VM-115 D/PD (2006) VM-132D/PD (2006) VM-146D/PD (2005) VM-1500-1601100 (2006) VM-1500-1601300 (2006) VM-200D/PD (2005) VM-46D/PD (2006) VM-75D/PD (2006) VMТ-270/280 (2005) VMТ-390/400 (480/500) (2005)

Схема > Не выбрано SHOVEL, G.P 1.3M3 2438MM (8'0dm) WIDE SHOVEL, G.P 1.1M3 2350MM (7'8.5dm) WIDE SHOVEL, G.P 1.3M3 2350MM (7'8.5dm) WIDE HEAVY DUTY SHOVEL, G.P 1.1M3 2350MM (7'8.5dm) WIDE GERMAN SKID PLATE G.P SHOVEL REPLACEMENT SCHEME SHOVEL, G.P 1.0M3 2253MM (7'4dm) WIDE SHOVEL, G.P 1.1M3 2350MM (7'8.5dm) WIDE QUICKHITCH SHOVEL, G.P 1.2M3 8' WIDE TOOL CARRIER SHOVEL, CLAM, 6 IN 1 2350MM (7'8.5dm) WIDE 1.0M3 (To: M1617693) SHOVEL, CLAM, 6 IN 1 2350MM (7'8.5dm) WIDE 1.0M3 GERMAN (To: M1620242) SHOVEL, CLAM, 6 IN 1 2235MM (7'4dm) WIDE (To: M1617591) SHOVEL, CLAM, 6 IN 1 2450MM (8'0dm) WIDE QUICKHITCH (To: M1617776) SHOVEL, CLAM, 6 IN 1 2350MM (7'8.5dm) WIDE QUICKHITCH (To: M1617591) SHOVEL, CLAM, 6 IN 1 2350MM (7'8.5dm) WIDE TOOL CARRIER (5/8 BSP PIPEWORK) (To: M1618533) SHOVEL, CLAM, 6 IN 1 2450MM (8'0dm) WIDE 1.3M3 (To: M1619744) SWEEPER CANOPY SHROUD ASSEMBLY SWEEPER DRIVE/BRUSH ASSEMBLY SWEEPER HYDRAULIC CIRCUIT SWEEPER MOUNTING FRAME SWEEPER CANOPY SHROUD ASSEMBLY SWEEPER COLLECTOR BRUSH CORE ASSEMBLY SWEEPER COLLECTOR HYDRAULIC CIRCUIT GUTTER BRUSH OPTION SWEEPER COLLECTOR HYDRAULIC CIRCUIT GUTTER BRUSH OPTION SWEEPER COLLECTOR GUTTER BRUSH SWEEPER COLLECTOR SPRINKLER ASSEMBLY SWEEPER COLLECTOR MOUNTING FRAME SWEEPER COLLECTOR DECAL CLAMSHOVEL 6 IN 1 1.2M3 X 92dm, QUICKHITCH (From: M1619749) CLAMSHOVEL 6 IN 1 CLAM, 1.2M3 X 92dm, QUICKHITCH (From: M1619749) CLAMSHOVEL 6 IN 1 1.0M3 X 88dm (From: M1617592) CLAMSHOVEL 6 IN 1 CLAM, 1.0M3 X 88dm (From: M1617592) CLAMSHOVEL 6 IN 1 1.2M3 X 92dm (From: M1617561) CLAMSHOVEL 6 IN 1 CLAM, 1.2M3 X 92dm (From: M1617561) CLAMSHOVEL 6 IN 1 1.0M3 X 92dm, TOOL CARRIER (From: M1618234) CLAMSHOVEL 6 IN 1 CLAM, 1.0M3 X 92dm, TOOL CARRIER (From: M1618234) CLAMSHOVEL 6 IN 1 1.3M3 X 96dm, QUICKHITCH (From: M1618048) CLAMSHOVEL 6 IN 1 CLAM, 1.3M3 X 96dm, QUICKHITCH (From: M1618048) CLAMSHOVEL 6 IN 1 1.0M3 X 92dm (From: M1617693) CLAMSHOVEL 6 IN 1 CLAM, 1.0M3 X 92dm (From: M1617693) CLAMSHOVEL 6 IN 1 1.0M3 X 92dm, QUICKHITCH (From: M1617894) CLAMSHOVEL 6 IN 1 CLAM, 1.0M3 X 92dm QUICKHITCH (From: M1617894) CLAMSHOVEL 6 IN 1 1.0M3 X 92dm, GERMAN (From: M1620243) CLAMSHOVEL 6 IN 1 CLAM, 1.0M3 X 92dm, GERMAN (From: M1620243) CLAMSHOVEL 6 IN 1 1.3M3 X 96dm (From: M1619745 ) CLAMSHOVEL 6 IN 1 CLAM, 1.3M3 X 96dm (From: M1619745) CLAMSHOVEL 6 IN 1 1.2M3 X 92dm, GERMAN CLAMSHOVEL 6 IN 1 CLAM, 1.2M3 X 92dm, GERMAN FORK MOUNTING, 1.0M3 (From: M1617592) FORK MOUNTING, 1.0M3, GERMAN (From: M1620243) FORK MOUNTING, 1.2M3 & 1.3M3 (From: M1617561) FORK MOUNTING, 1.2M3 GERMAN CLAMSHOVEL 6 IN 1 NO FORKS FITTED (From: M1617561) SHOVEL CONNECTORS PINS & HOSES TO LOADER ARMS SHOVEL CONNECTORS PINS & HOSES TO LOADER ARMS GERMAN BUILDS BUCKET STANDARD (from: Dec 2005) BUCKET GENERAL PURPOSE BOLT ON TEETH BUCKET HEAVY DUTY WELD ON TEETH BUCKET, HEAVY DUTY SPANISH BUILD (from: Dec 2005) BUCKET HEAVY DUTY (from: Dec 2005) BUCKET HEAVY DUTY BOLT ON TEETH BUCKET DEEP PROFILE BOLT ON TEETH ATTACHMENTS, BACKHOE RIPPER TOOTH & TAPERED DITCHING BUCKET BLADE, GRADING 5' BLADE, GRADING 6' BUCKET HEAVY DUTY SPAIN WELDED TEETH 9 INCH (from: Dec 2005) BUCKET HEAVY DUTY SPAIN BOLTED TEETH 9 INCH (from: Dec 2005) BUCKET, 500MM HD BOLT ON TEETH (from: Dec 2005) FORK LIFT 6 IN 1 CLAM SHOVEL MOUNTED 1.0M3 FORK LIFT GP SHOVEL MOUNTED GUARD, TOOTH OPTIONAL 2350MM (7'8.5dm) WIDE SHOVELS GUARD, TOOTH OPTIONAL 2253MM (7'4dm) WIDE SHOVELS BREAKER, ASSEMBLY HAMMERMASTER 260 MK2 WITH SIDE PLATES BREAKER, DETAILS HAMMERMASTER 260 MK2 ROCKBREAKER, HM385Q 980/90239 ROCKBREAKER, HM385Q COMPONENTS CRANE FORK MOUNTED QUICKHITCH ATTACHMENT,LOADER TOOL CARRIER HYDRAULIC QUICKHITCH INDUSTRIAL, TOOL CARRIER (From: M1348705) TOOL CARRIER HYDRAULIC QUICKHITCH INDUSTRIAL, TOOL CARRIER (From: M1348706 ) QUICKHITCH INDUSTRIAL, HYDRAULIC QUICKHITCH LOCK PINS,COMPATIBLE WITH 128/10679 & 128/10778 ONLY QUICKHITCH LOADER ELECTRIC/HYDRAULIC C/W FORKS (From: M1621101) QUICKHITCH LOADER ELECTRIC/HYDRAULIC C/W FORKS (From: M1621102) TOOTH & TOEPLATE OPTIONS 7'8dm (2350MM WIDE SHOVELS) TOOTH & TOEPLATE SHOVEL, DOUBLE EDGE FORK FRAMES & FORKS INDUSTRIAL QUICKHITCH FORK FRAMES & FORKS INDUSTRIAL 4'6dm, TOOL CARRIER (Q-FIT) CONCRETE SKIP SNOW PLOUGH CIRCUIT PATCH PLANER 400 MK2 PATCH PLANER, 400MK2 PATCH PLANER 400MK2 HYDRAULIC MOTOR EARTH DRILL EARTH DRILL, GEARBOX EARTH DRILL, MOTOR EARTH DRILL ATTACHMENTS EARTH DRILL JCB 2150 COMPONENTS EARTH DRILL ATTACHMENTS LP SERIES EARTH DRILL ATTACHMENTS DFB SERIES QUICKHITCH ATTACHMENT BACKHOE QUICKHITCH ATTACHMENT BACKHOE, HYDRAULIC QUICKHITCH ATTACHMENT BACKHOE, HYDRAULIC QUICKHITCH ATTACHMENT, BACKHOE MECHANICAL TO HYDRAULIC CONVERSION KIT QUICKHITCH MAINFRAME 980/89266 COMPACTOR BACKHOE ATTACHMENT CIRCUIT, COMPACTOR BACKHOE ATTACHMENT CUTTER/CRUSHER CM500 BLANKING KIT LIFT HOOK PUMP, SUBMERSIBLE CHASSIS SIDESHIFT 2WS (From: M1337962) CHASSIS SIDESHIFT 2WS, TIER 3 (From: M1337963, M1345549) CHASSIS SIDESHIFT 2WS (From: M1345550) CHASSIS CENTREMOUNT 2WS (From: M1337962) CHASSIS CENTREMOUNT 2WS, TIER 3 (From: M1337963, M1345549) CHASSIS CENTREMOUNT 2WS (From: M1345550) TANK, HYDRAULIC TANK, HYDRAULIC (From: M1616236) TANK, DIESEL FUEL 150 LITRES (From: M0960345) TANK, DIESEL FUEL 150 LITRES (From: M0960437, M1345549) TANK FUEL (From: M1345550) GUARD FUEL TANK (From: M1345550) STABILISER SIDESHIFT STABILISER CENTREMOUNT GUARD STABILISER RAM CENTREMOUNT STABILISER WEAR PADS BONNET ASSEMBLY 2WS (From: M1328630) BONNET ASSEMBLY 2WS (From: M1328631, M1337962) BONNET ASSEMBLY 2WS (From: M1337963) GRILLE, FRONT 2WS (From: M969452) GRILLE, FRONT 2WS (From: M0969453 M1337962) GRILLE, FRONT 2WS (From: M1337963) GRILLE, FRONT 2WS TRAILER IMPACT PROTECTION (From: M1616815 ) STEP, CAB ACCESS (From: M0965112) STEP, CAB ACCESS (From: M0965113 M1345549) STEP HYDRAULIC TANK SIDE (From: M1345550 M1616235) STEP HYDRAULIC TANK SIDE (From: M1616236 ) STEP FUEL TANK (From: M1345550 ) MUDGUARDS, REAR YELLOW (From: M1618293) MUDGUARDS, REAR YELLOW (From: M1618294 ) MUDGUARDS, REAR BLACK (From: M1918293) MUDGUARDS, REAR BLACK SIDESHIFT, TEXTURED (From: M1618294 ) MUDGUARDS, REAR BLACK CENTREMOUNT, SMOOTH (From: M1618294 ) MUDGUARDS, FRONT BLACK 2WS, 18dm MUDGUARDS, FRONT BLACK 2WS, 418MM WIDE, C/W 20dm TYRES MUDGUARDS, FRONT BLACK 2WS, 343MM WIDE, C/W 20dm TYRES PADS, STREET STABILISER SIDESHIFT, OPTIONAL NOISE INSULATION 84HP ONLY PLATE FILLER, LOADER TOWER VALVE MOUNTING EXCAVATOR/STABILISER VALVE MOUNTING LOADER VALVE MOUNTING LOADER TRAVEL LOCK OPTION GERMAN ITALIAN TOOLBOX WIDE STEP MOUNTING (From: M0965112) TOOLBOX WIDE STEP MOUNTING (From: M0965113, M1616235) TOOLBOX STEP MOUNTING (From: M1616236 ) TOOLBOX SMALL (From: M1347278 ) MUDGUARD EXTENSION (From: M1345549) MUDGUARD EXTENSION (From: M1345550 ) STONE GUARD HOSE GUIDE SIDESHIFT REARFRAME (From: M1345990) STONE GUARD HOSE GUIDE SIDESHIFT REARFRAME (From: M1345991 ) STABILISER FOOT RETENTION SIDESHIFT MOUNTING WHEEL CHOCK RETAINING STRAPS LOADER END EXCAVATOR END STEP LOADER ARM 2WS CAB TWO DOOR (From: M1341487) CAB TWO DOOR (From: M1341488) CANOPY (From: M1341487) CANOPY (From: M1341488) CAB GLAZING FLAT SIDE WINDOWS CANOPY GLAZING DOOR, LEFTHAND SIDE (From: M1346144) DOOR LEFT SIDE (From: M1346145) DOOR, RIGHTHAND SIDE (From: M1346144) DOOR RIGHT SIDE (From: M1346145) WINDOW, SIDE FLAT GLASS WINDOW, REAR (From: M1346732) WINDOW, REAR (From: M01346733) FLOORMAT CAB BASE ROOF LINER TWIN SPEAKERS AND INTERIOR LIGHT SOUNDPROOFING CAB AIR CONDITIONING SERVICE FIELD KIT UNDER FLOOR DUCTING HEATER UNDER FLOOR DUCTING (INSULATED)AIR COND. SEAT, STATIC SEAT, SUSPENSION SEAT, SUSPENSION 5000 LB SEAT, AIR SUSPENSION WASH/WIPE CANOPY (From: M1617187) WASH/WIPE FRONT & REAR SCREEN (From: M1617037) WASH/WIPE CANOPY (From: M1617188) WASH/WIPE FRONT & REAR SCREEN (From: M1617038) VISOR,SUN,FOLD DOWN CAB MOUNTINGS SEATBELT 3dm OPTION (From: M1616479) MIRROR EXTERNAL & INTERIOR CAB FRONT SEAL CAB REAR VALANCE SIDESHIFT BUILD (From: M1618293) CAB REAR VALANCE SIDESHIFT BUILD (From: M1618294 ) CAB REAR VALANCE CENTREMOUNT BUILD COVER,JCB,EXCAVATOR CONTROLS & CUPHOLDER COVER LOADER CONTROLS FUSE COVER TRAVEL LOCK LOADER LEVER STOWAGE BOX STOWAGE COMPARTMENT ROOF LINER DIRECT GLAZING REPLACEMENT MATERIAL COVER VANDAL PROOF INSTRUMENT PANEL (USES IGNITION/DOOR KEY) COVERS, PIPE AND DOOR KICK STRIP (From: M1618293) COVERS, PIPE AND DOOR KICK STRIP (From: M1618294) CAB ROOF, UK & WORLD (From: M1618741) CAB ROOF INSTALLATION, YELLOW, ROW (From: M1618742) CAB ROOF YELLOW, ROW (From: M1618742) CAB ROOF INSTALLATION, BLACK, ROW (From: M1618742 ) CAB ROOF BLACK, ROW (From: M1618742) CANOPY ROOF INSTALLATION, YELLOW, ROW (From: M1618742 ) CANOPY ROOF YELLOW, ROW (From: M1618742) CANOPY ROOF INSTALLATION, BLACK, ROW CANOPY ROOF BLACK, ROW (From: M1618742 ) DOOR STAY TRIM, B POST COVERS CAB TRIM, B POST COVERS CANOPY TRIM C-POST COVERS-FLOOR CANOPY CAB DOOR LOCKBACK BLANK PLATES REAR FLOOR BULKHEAD PLATE CAB/CANOPY ELECTRICS (From: M1335240) BULKHEAD PLATE CAB/CANOPY ELECTRICS (From: M1335241 M1349884) BULKHEAD PLATE CAB/CANOPY ELECTRICS (From: M1349885 ) BLANKING PLATE FRONT BULKHEAD (From: May 2006) ARMS, LOADER (From: M0974436) ARMS, LOADER (From: M0974437) ARMS, LOADER INTERLEVER ARMS, LOADER SHOVEL LINKAGE, 2WS ARMS, LOADER SHOVEL LINKAGE, 2WS AUSTRIAN, SWISS, ITALIAN SAFETY STRUT LOADER ARMS KINGPOST CARRIAGE SIDESHIFT KINGPOST CARRIAGE SIDESHIFT POWERED SIDESHIFT SLEW/SWING COMPONENTS SIDESHIFT KINGPOST-SIDESHIFT 14'0 BACKHOE (From: M0964189) KINGPOST-SIDESHIFT 14'0 BACKHOE (From: M0984082) KINGPOST-SIDESHIFT 14'0 BACKHOE (From: M0984083) BOOM 14' 0 DIPPER (STICK) MONO, 14' DIPPER (STICK) EXTRADIG, 14' DIPPER (STICK) EXTRADIG, RATTIGAN TIPPING LINK STANDARD TIPPING LINK WITH LIFTING SHACKLE TIPPING LINK WITH LIFTING HOOK TWO TONNE LIFT TIPPING LINK WITH LIFTING HOOK (From: M1619250) TIPPING LINK WITH LIFTING SHACKLE, 5 TON (From: M1619251 ) INSTALLATION BEACON LIGHT MOUNTED ON EXCAVATOR END BOOM LOCK IN CAB CONTROLS SIDESHIFT BOOM LOCK IN CAB CONTROLS CENTREMOUNT KINGPOST, BULKHEAD SIDESHIFT KINGPOST, BULKHEAD CENTREMOUNT POWERED SIDESHIFT SAFETY STRUT BUCKET CROWD RAM HARNESS CAB/CANOPY MACHINE (From: M1347277) HARNESS CAB/CANOPY MACHINE (From: M1347278 M1349884) HARNESS CAB/CANOPY MACHINE (From: M1349885 ) HARNESS SIDE CONSOLE INSTALLATION HARNESS,STEER COLUMN TELESCOPIC OPTIONAL BATTERY 12V CARRIER (From: M1337962) BATTERY 12V CARRIER (From: M1335000) ISOLATOR SWITCH BATTERY (From: M1330444) ISOLATOR SWITCH BATTERY (From: M1330445, M1337962) ISOLATOR SWITCH BATTERY (From: M1337963 ) LIGHT, REAR SIDESHIFT LIGHT REAR GUARD, CHINA BUILDS LIGHT REAR CENTREMOUNT, ROW LIGHT, HEAD, 12.VOLT LEFT HAND DIP, WHITE LIGHT, HEAD, 12.VOLT RIGHT HAND DIP WHITE LIGHT, HEAD, 12.VOLT RIGHT HAND DIP AUSTRIAN HOMOLOGATION LIGHT, HEAD, 12.VOLT RIGHT HAND DIP WHITE WITH SIDE REPEAT, ITALY MOUNTING, HEAD LIGHT MOUNTING, HEAD LIGHT MOUNTING, HEAD LIGHT ITALIAN BUILD GERMAN BUILD LIGHT, WORKING CAB FRONT LIGHT, WORKING CAB REAR LIGHT, NUMBER PLATE SIDESHIFT LIGHT, NUMBER PLATE SIDESHIFT BREAKER BUILD LIGHT, REAR FOG SIDESHIFT LIGHT, REAR FOG DUTCH MACHINES SIDESHIFT LIGHT, HIGHWAY DIPPER HAZARD ALARM, REVERSE INSTALLATION OPTIONAL PUMP, DIESEL REFUELLING OPTIONAL HORN, SINGLE TONE FRONT HORN, REAR MOUNTINGS & SUPPORTS HARNESS INCLINOMETER LEV-O-GAGE. DROP-DOWN ALARM SIDESHIFT STABILISER MANDATORY FOR E.U. (From: MARCH 2009 ) DROP-DOWN ALARM CENTREMOUNT MANDATORY FOR E.U. (From: M1347278 ) HARNESS CONNECTORS SUMITOMO HARNESS CONNECTORS REPAIR IP67 STANDARD EARTH LEADS LIGHT, REFLECTOR SIDESHIFT BOOM LOAD SENSE (From: M1347278 ) SWITCHES & SENDERS ENGINE SHUT-OFF SOLENOID LINK STARTER MOTOR 12.VOLT ALTERNATOR 12VOLT - 95AMP GRID HEATER RELAY INSTALLATION NATURALLY ASPIRATED (From: M1349884) GRID HEATER RELAY INSTALLATION TURBO (From: M1349884) GRID HEATER RELAY INSTALLATION NATURALLY ASPIRATED (From: M1349885 ) GRID HEATER RELAY INSTALLATION TURBO (From: M1349885) ENGINE IMMOBILISER 12.VOLT, TIER 2 ONLY ENGINE BLOCK HEATER 120V ENGINE BLOCK HEATER 240V GAUGES, INSTRUMENT & IGNITION SWITCH SIDE CONSOLE (From: M1349884) GAUGES, INSTRUMENT & IGNITION SWITCH SIDE CONSOLE (From: M1349885 ) GAUGE, WARNING LIGHT CLUSTER FRONT CONSOLE 12 VOLT GAUGE, SPEEDOMETER 0-60KPH, GERMANY & ROW OPTION FOR LUC P/S, & AUTOSHIFT INSTRUMENT PANEL SIDE CONSOLE CAB BUILD COVERS STEER CONSOLE HEATER BUILD COVERS STEER CONSOLE HEATERLESS M/C BUILD SWITCH, COLUMN SHUTTLE TRANSMISSION HEATER ASSEMBLY (From: M0982925) HEATER ASSEMBLY (From: M0982926) HEATER, INSTALLATION AIR INTAKE HEATER FEED AND RETURN (From: M0982925) HEATER FEED AND RETURN (From: M0982926) AIR CONDITIONING ASSEMBLY (From: M0983102) AIR CONDITIONING ASSEMBLY (From: M0983103 M1348090) AIR CONDITIONING ASSEMBLY (From: M1348091 ) AIR CONDITIONING ASSEMBLY AUSTRALIAN MACHINES (From: M1327042) AIR CONDITIONING ASSEMBLY AUSTRALIAN MACHINES (From: M1327043 M1348090) SWITCHES, LIGHTS HEATER & WIPER 2WS FUSE BOX & RELAYS SIDE COVER (From: NOV-2008) FUSE BOX & RELAYS SIDE COVER (From: NOV-2008) FUSE BOX & RELAYS FRONT CONSOLE MANUAL TRANSMISSION MOTOR, WIPER LIGHT, BEACON HAZARD WARNING AMBER INSTALATION BEACON LIGHT MOUNTED ON EXCAVATOR END LIGHT, INTERIOR CAB RADIO OPTIONAL SWITCH, JAW/EXTRADIG ATTACHMENT COVER VANDAL PROOF INSTRUMENT PANEL(USES IGNITION/DOOR KEY) CIGARETTE LIGHTER / ASHTRAY BLANKING FAN, FACE LEVEL CANOPY OPTIONAL AIR CONDITIONING INSTALLATION (From: 7/05/06) AIR CONDITIONING INSTALLATION (From: 8-5-06 M1337962) AIR CONDITIONING INSTALLATION, TIER 3 NON CAC (From: M1337963 ) HARNESS HAMMER ATTACHMENT (From: M1332948) HARNESS AND SWITCHES HAMMER ATTACHMENT CAB REAR FLOOR (From: M1332949 ) FOOT SWITCH HAMMER ATTACHMENT HILOFLOW, GEAR PUMP FOOT SWITCH HAMMER ATTACHMENT HIFLOW IMMOBILISER INSTALLATION (From: M1337962) LIVELINK CAB BUILDS LIVELINK CANOPY BUILDS LIVELINK AND IMMOBILISER, CHINA BUILDS CONTROLS LOADER LIFT & SHOVEL CONTROLS, LOADER AUXILIARY 3RD SPOOL OPTIONAL. GEAR PUMP CONTROLS, EXCAVATOR & STABILISER JCBdmXdmDIAGONAL PATTERN GEAR PUMP BUILD CONTROLS, EXCAVATOR & STABILISER SAE/ISO dm+dm PLUS PATTERN GEAR PUMP BUILD CONTROLS AUXILIARY VALVE INSTALLATION, OPTIONAL. GEAR PUMP BUILD CONTROLS AUXILIARY VALVE DETAILS PEDAL AND LINKAGE GEAR PUMP (From: M0960980) CONTROLS AUXILIARY VALVE PEDAL & LINKAGE, GEAR PUMP MANUAL OR PCH (From: M0960980 ) CONTROL SHOVEL RESET CONTROLS, LEVER IN CAB BOOM LOCK SIDESHIFT CONTROLS, LEVER IN CAB BOOM LOCK CENTREMOUNT CONTROL KNOB LOADER VALVE CONTROL KNOB LOADER VALVE SINGLE SWITCH LEVER LOCK + PATTERN EXCAVATOR VALVE ITALIAN BUILD CONTROL KNOB EXCAVATOR VALVE JCB & SAE PATTERN CONTROL KNOB EXCAVATOR VALVE ISO PATTERN CONTROL KNOB EXCAVATOR VALVE BLACK BODY/SILVER TOP CONTROLS TWIN BRAKE PEDAL WITH PROXIMITY SWITCH CONTROLS SINGLE BRAKE PEDAL WITH PROXIMITY SWITCH (From: Nov 2005) CONTROL PARKING BRAKE CONTROL GEAR CHANGE THROTTLE CONTROL 2WS & AWS (From: M1707232) THROTTLE CONTROL 2WS & AWS (From: M1707233 ) THROTTLE PEDAL SERVO BRAKES (From: M1707233 ) STEERING COLUMN TILT STEERING COLUMN TELESCOPIC OPTIONAL

1

1

1

2

3

4

5

6

6

7

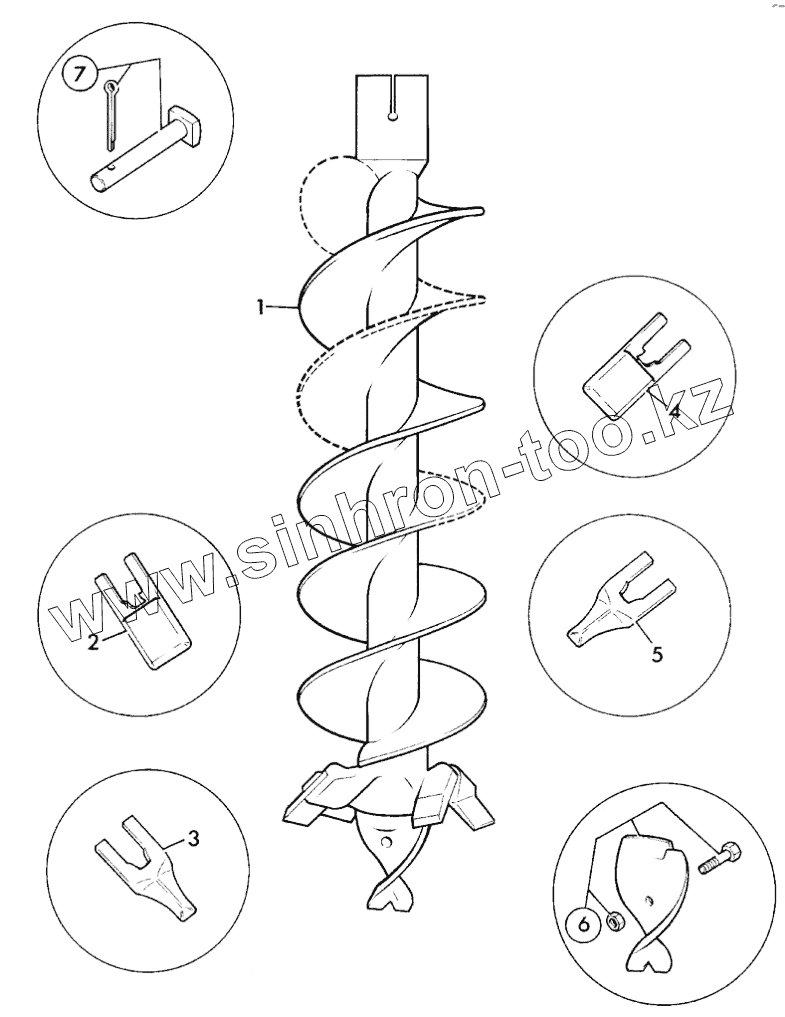

Позиция на иллюстрации	Заводской номер детали		Название детали
1	980/84304		Bit earth drill 12dm heavy duty
1	980/84305		Bit 18dm earth drill heavy duty
1	980/84306		Bit 24dm earth drill heavy duty
2	983/00167		Tooth drive-on, dirt outside tooth pocket
3	983/00168		Tooth drive-on, chisel inside tooth pocket
4	983/00169		Tooth carbide edged outside pocket
5	983/00170		Tooth carbide edged inside pocket
6	983/00171		Tool centre point
6	983/00172		Tool centre point carbide tipped
7	983/00180		Pin auger
8	980/84307		Attachment
8	980/84308		Attachment
8	980/84309		Attachment
8	980/84310		Attachment

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
