1
2
3
4
5
6
7
8
9
10
10
11
12
13

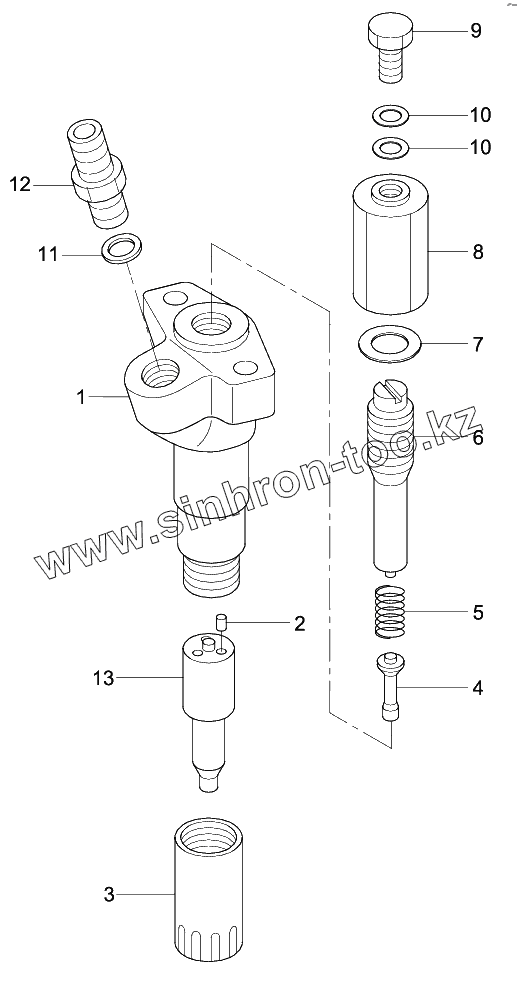

Позиция на иллюстрации
Заводской номер детали
Название детали
33800-83C10
33800-83C10
Nozzle Assy
33823-83000
33823-83000
Holder-Nozzle
1
Body
Body
2
PIN
PIN
3
NUT-RETAINING
NUT-RETAINING
4
ROD-PUSH
ROD-PUSH
5
SPRING-NOZZLE
SPRING-NOZZLE
6
SCREV-ADJUSTING
SCREV-ADJUSTING
7
GASKET
GASKET
8
NUT-CAP
NUT-CAP
9
BOLT-EYE
BOLT-EYE
10
GASKET
GASKET
11
GASKET
GASKET
12
CONNECTOR-INLET
CONNECTOR-INLET
13
TIP-NOZZLE
TIP-NOZZLE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
