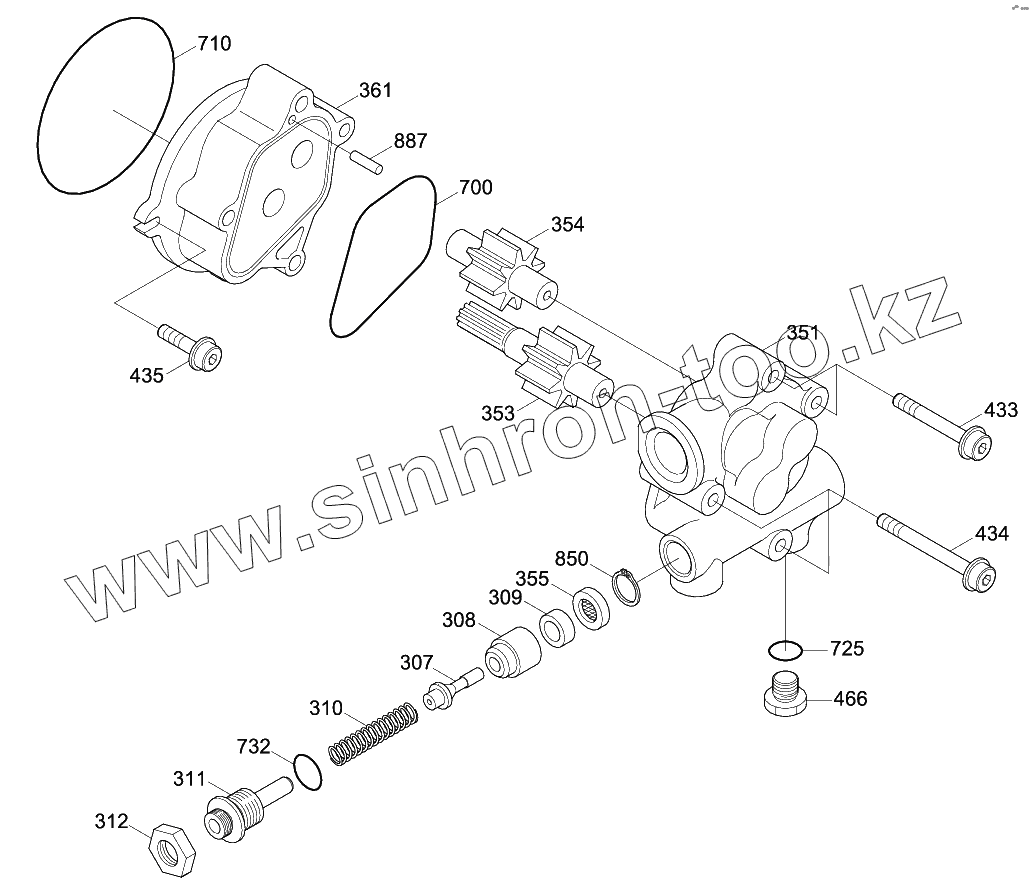

Позиция на иллюстрации
Заводской номер детали
Название детали
2923170-0088
2923170-0088
Gear Case
XJBN-00965
XJBN-00965
Gear Pump Assy
307
XJBN-00521
POPPET
308
XJBN-00522
SEAT
309
XJBN-00523
RING
310
XJBN-00524
SPRING
311
XJBN-00525
SCREW-ADJUST
312
XJBN-00334
NUT-LOCK
351
XJBN-00660
CASE-GEAR
353
XJBN-00332
GEAR-DRIVE
354
XJBN-00331
GEAR-DRIVEN
355
XJBN-00330
FILTER-RETURN
361
XJBN-01010
Case-Front
433
XJBN-00328
SOCKET-FLANGE
434
XJBN-00327
SOCKET-FLANGE
435
XJBN-01011
Socket-Flange
466
XJBN-00030
PLUG
700
XJBN-00325
RING
710
XJBN-00837
O-Ring
725
XJBN-00045
O-RING
732
XJBN-00283
O-RING
850
XJBN-00324
RING-SNAP
887
XJBN-00795
PIN
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
