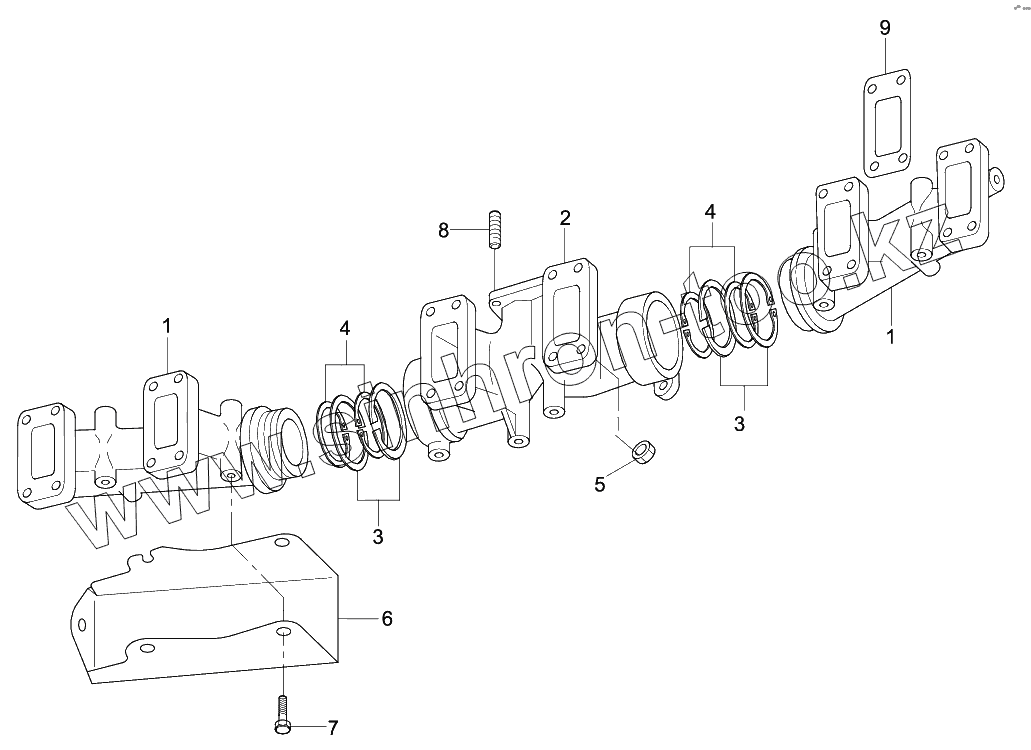

1
1
2
3
3
4
4
5
6
7
8
9
Позиция на иллюстрации
Заводской номер детали
Название детали
28510-83003
28510-83003
Manifold Assy-Exhaust
1
28518-83601
Exhaust Manifold
2
28511-83C20
Center-Exh Manifold
3
28537-83600
Ring-Seal
4
28536-83600
Ring-Expansion
5
10225-10004
Гайка-замок
6
28531-83010
Insulator
7
28528-32200
ВОLТ
8
22137-41000
Шпилька
9
28548-83000
Gasket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
