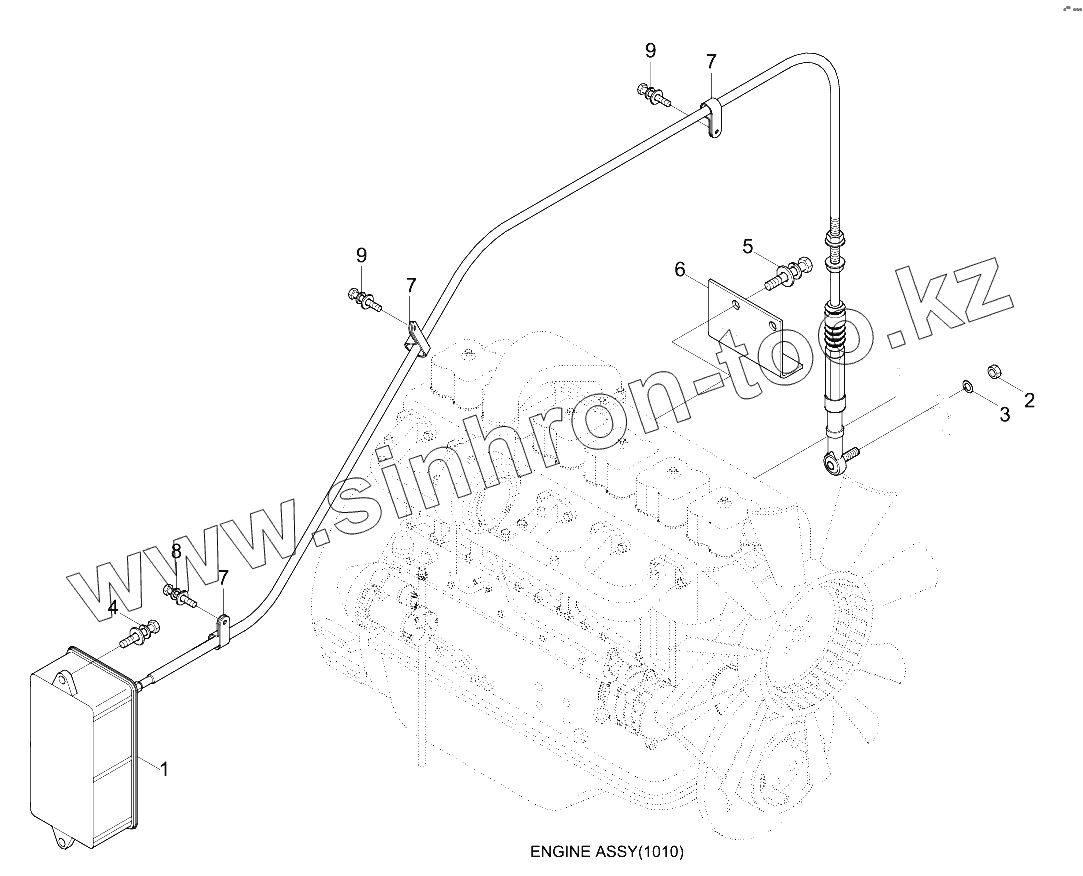

1
2
3
4
5
6
7
7
7
8
9
9
Позиция на иллюстрации
Заводской номер детали
Название детали
1
21EN-32380
Accel Actuator
2
S275-06000B
Nut-Self Locking
3
S403-06200B
WASHER-PLAIN
4
S035-083526
Bolt-W/Washer
5
S037-102526
BOLT-W/WASHER
6
11N8-62160
Bracket
7
31L7-10190
CLAMP-TUBE
8
S037-121526
Bolt-W/Washer
9
S035-082056
BOLT-W/WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
