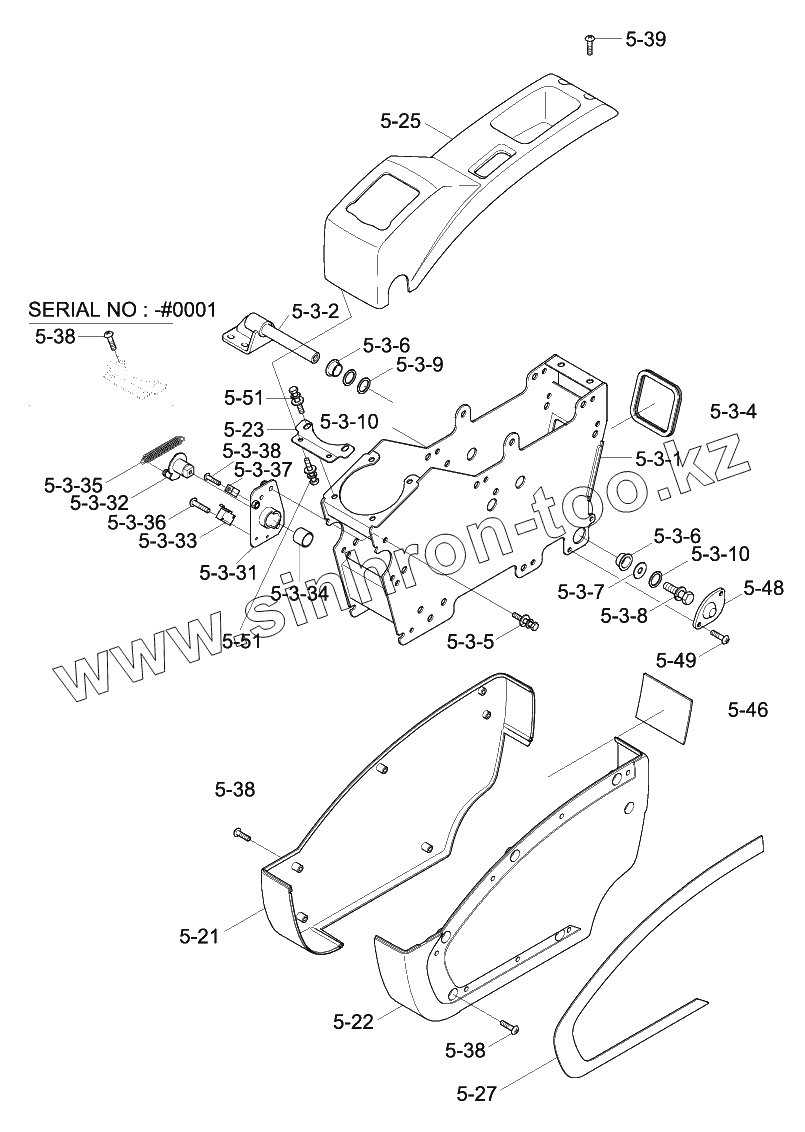

Каталог запасных частей к технике: Hyundai R330LC-9SH. CONSOLE BOX 1 (LH)

Тип техники

Марка

Модель

Схема

5-51

5-51

5-3-1

5-3-2

5-3-4

5-3-5

5-3-6

5-3-6

5-3-7

5-3-8

5-3-9

5-3-10

5-3-10

5-3-31

5-3-32

5-3-33

5-3-34

5-3-35

5-3-36

5-3-37

5-3-38

5-21

5-22

5-23

5-25

5-27

5-38

5-38

5-38

5-39

5-46

5-48

5-49

Позиция на иллюстрации	Заводской номер детали		Название детали
5-51	S035-061526		BOLT-W/WASHER
71Q6-23680	71Q6-23680		Console Frame Assy-Lh
5-3-1	71Q6-23110		Frame Wa-Console
5	BottomPlate		Bottom Plate Sub Assy
5-3	71Q6-23670		Console Frame Assy-Lh
5-3-1	71Q4-21341		Frame Wa-Console
5-3-2	71Q6-23720		Bracket Wa-Console
5-3-3	71Q6-20920		BRACKET ASSY-SAFETY
5-3-4	71Q6-21420		Grommet
5-3-5	S035-061526		BOLT-W/WASHER
5-3-6	S731-020020		BUSHING-DU
5-3-7	71Q6-23700		Shim(20t)-Round
5-3-8	S037-102016		BOLT-W/WASHER
5-3-9	71Q6-22631		Shim(10t)-Console
5-3-10	71Q6-23080		Shim(10t)-Console
5-3-31	71Q6-20930		BRACKET-LOWER
5-3-32	71Q6-20960		BRACKET-UPPER
5-3-33	21N8-20300		SWITCH-MICRO
5-3-34	S731-020015		BUSHING-DU
5-3-35	71N6-21610		SPRING
5-3-36	S161-030152		SCREW-CROSS R/ROUND
5-3-37	71Q6-22840		PLATE-STOPPER
5-3-38	S131-051526		SCREW-W/WASHER
5-21	71Q6-22050GG		Console Cover-Low, Rh
5-22	71Q6-22010GG		Console Cover-Low, Lh
5-23	71Q6-21610		BRACKET-CONSOLE UP
5-25	71Q6-22060GG		CONSOLE COVER UP-LH
5-27	71Q7-22030		Console Cover-Trim
5-38	S002-06010B		SCREW-TRUS HEAD
5-39	S002-06015B		SCREW-TRUS HEAD
5-46	71Q6-22670		Protector
5-48	71Q6-23130GG		Cap-Console
5-49	S002-05015B		SCREW-TRUS HEAD

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
