Каталог запасных частей к технике: Hyundai R330LC-9SH. BREAKER ASSY (3/3)

Тип техники

Марка

Модель

Схема

2-1

2-10

2-11

2-11

2-12

2-13

2-14

2-15

2-15

2-15

2-15

2-15

2-15

2-16

2-17

2-19

2-2

2-20

2-21

2-22

2-23

2-24

2-25

2-26

2-28

2-3

2-4

2-5

2-6

2-7

2-8

2-9

4

5

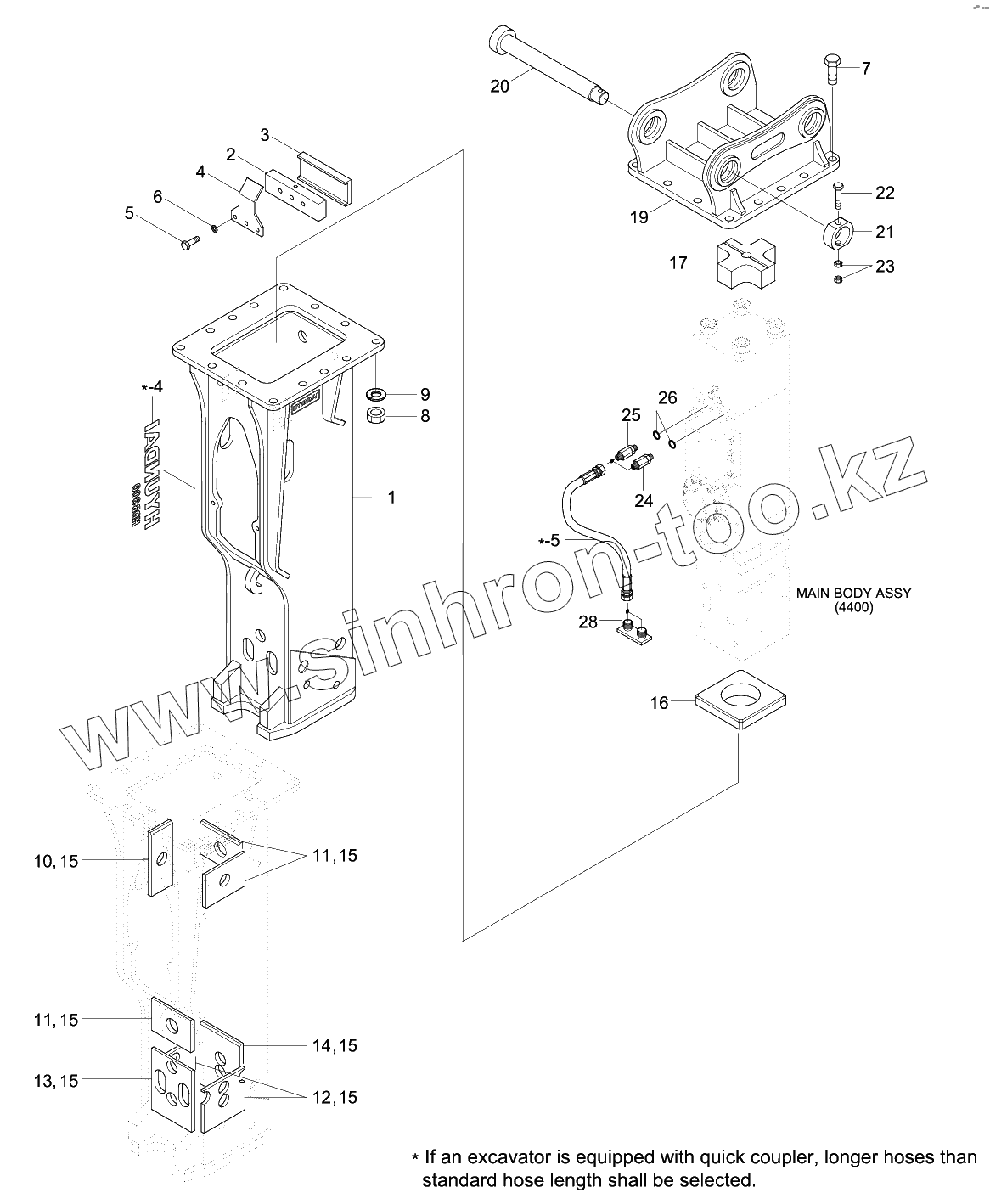

Позиция на иллюстрации	Заводской номер детали		Название детали
2	XKBN-01136		BRACKET ASSY-BENDING
2-1	XKBN-01137		HOUSING WA-BENDING
2-10	XKBN-01067		DAMPER-SIDE
2-11	XKBN-00937		DAMPER-SIDE
2-12	XKBN-01143		DAMPER-SIDE
2-13	XKBN-01144		DAMPER-SIDE
2-14	XKBN-01145		DAMPER-SIDE
2-15	XKBN-00034		O-Ring
2-16	XKBN-01146		DAMPER-BOTTOM
2-17	XKBN-01147		DAMPER-UPPER
2-19	XKBN-01149		MOUNTING BRACKET WA
2-2	XKBN-01138		BAR-SQUARE
2-20	XKBN-01079		PIN-BRACKET
2-21	XKBN-01076		RING-STOP
2-22	XKBN-00947		BOLT-HEX
2-23	XKBN-00718		Nut-Hex
2-24	XKBN-01085		ADAPTER
2-25	XKBN-01083		ADAPTER
2-26	XKBN-00877		O-RING
2-28	XKBN-01084		PLUG-HOSE
2-3	XKBN-01139		PLATE-WEAR
2-4	XKBN-01140		PLATE-BENDING CLAMP
2-5	XKBN-00933		BOLT-HEX
2-6	XKBN-00884		Washer-Nord Lock
2-7	XKBN-01141		BOLT-HEX
2-8	XKBN-00183		NUT-TEFRON
2-9	XKBN-01142		WASHER-SPRING
3	XKBN-01751		BULK CAP SUB ASSY
4	XKBN-01151		DECAL ASSY-HYUNDAI
5	XKBN-01082		HOSE ASSY

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
