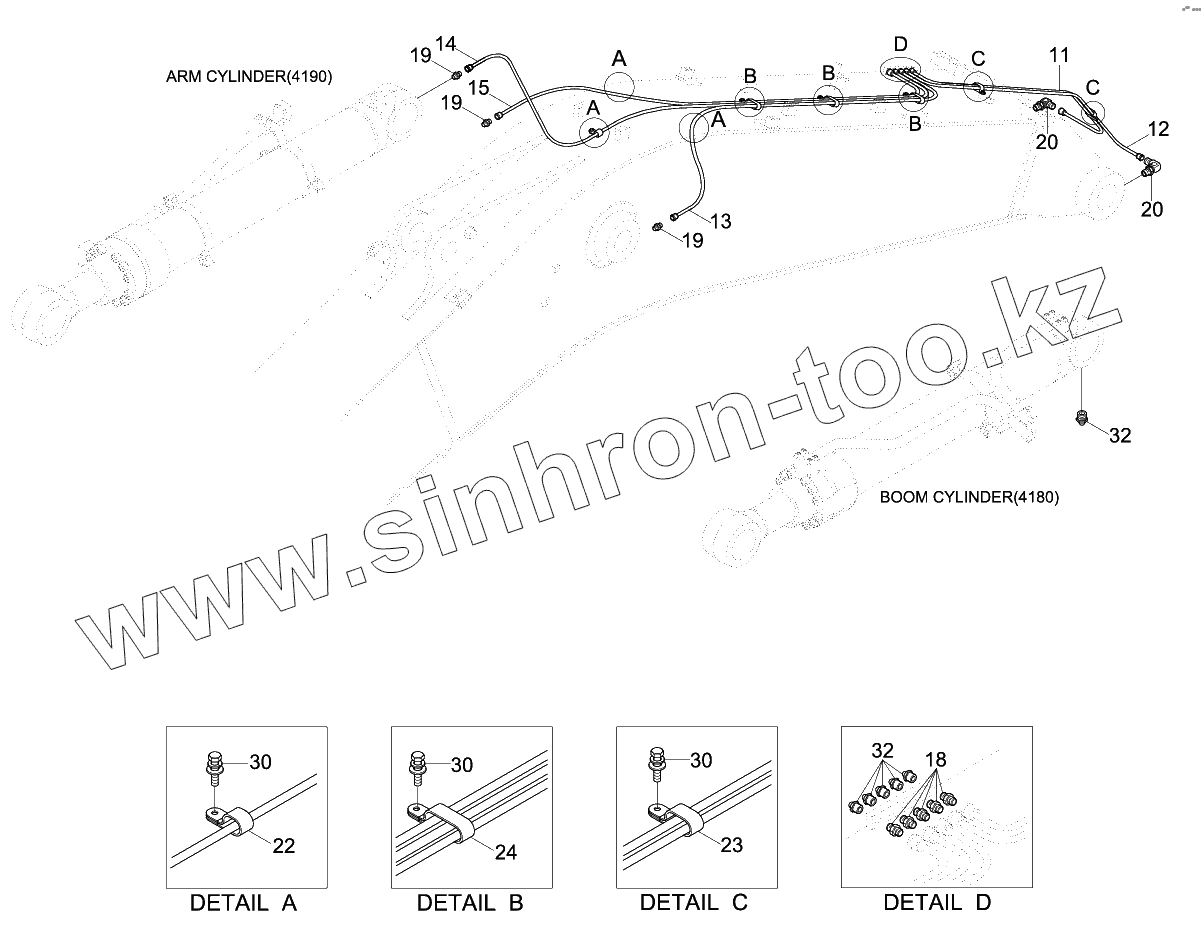

BOOM GREASE LUB SYSTEM (6.45M, STD)
Каталог запасных частей к технике: Hyundai R330LC-9SH. BOOM GREASE LUB SYSTEM (6.45M, STD)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
R140W-9 (2013)
R140W-9S (2013)
R16-9 (2013)
R170W-7 (2013)
R170W-9 (2013)
R170W-9S (2013)
R180LC-9 (2013)
R180LC-9S (2013)
R180W-9S (2013)
R210LC-9 (2013)
R210NLC-9 (2013)
R210W-9 (2013)
R330LC-9A (2013)
R330LC-9S (2013)
R330LC-9SH (2013)
Схема
>
Не выбрано
ENGINE MOUNTING
ENGINE CONTROL SYSTEM
AIR INTAKE SYSTEM
EXHAUST SYSTEM
COOLING SYSTEM
RADIATOR ASSY
FUEL SYSTEM
FUEL TANK
AIRCON & HEATER GROUP
AIR CONDITIONER BOTTOM SUB
AIRCON & HEATER UNIT
RH ELECTRIC (CLUSTER TYPE 1)
LH ELECTRIC (CLUSTER TYPE 1)
RH ELECTRIC (CLUSTER TYPE 2)
LH ELECTRIC (CLUSTER TYPE 2)
BOOM ELECTRIC
ENGINE ELECTRIC (CLUSTER TYPE 1)
ENGINE ELECTRIC (CLUSTER TYPE 2)
CAB ELECTRIC 1
CAB ELECTRIC 2
CAB ELECTRIC 3
BOTTOM ELECTRIC
AIR COMPRESSOR ELECTRIC
ELECTRIC BOX
CLUSTER (TYPE 1)
CLUSTER (TYPE 2)
FUEL FILLER PUMP
FUSE BOX
PUMP MOUNTING
HYDRAULIC TANK
UPPER HYD PIPING (BASE, MCV TYPE 1)
UPPER HYD PIPING (BASE, MCV TYPE 2)
UPPER HYD PIPING (ATTACH)
UPPER HYD PIPING (ATTACH, MCV TYPE 2)
UPPER HYD PIPING (TRAVEL)
PILOT HYD PIPING (CONTROL 1)
PILOT HYD PIPING (CONTROL 2)
PILOT HYD PIPING (CONTROL 3)
PILOT HYD PIP (BASE1,CLUSTER TY1,MCV TY1)
PILOT HYD PIP (BASE2,CLUSTER TY1,MCV TY1)
PILOT HYD PIP (BASE3,CLUSTER TY1,MCV TY1)
PILOT HYD PIP (BASE1,CLUSTER TY2,MCV TY1)
PILOT HYD PIP (BASE2,CLUSTER TY2,MCV TY1)
PILOT HYD PIP (BASE3,CLUSTER TY2,MCV TY1)
PILOT HYD PIP (BASE1,CLUSTER TY1,MCV TY2)
PILOT HYD PIP (BASE2,CLUSTER TY1,MCV TY2)
PILOT HYD PIP (BASE3,CLUSTER TY1,MCV TY2)
PILOT HYD PIP (BASE1,CLUSTER TY2,MCV TY2)
PILOT HYD PIP (BASE2,CLUSTER TY2,MCV TY2)
PILOT HYD PIP (BASE3,CLUSTER TY2,MCV TY2)
TRAVEL HYD PIPING
TRAVEL HYD PIPING (HIGH WALKER)
BOOM HYD PIPING (6.45M, STD)
BOOM HYD PIPING (6.15M)
BOOM GREASE LUB SYSTEM (6.45M, STD)
BOOM GREASE LUB SYSTEM (6.15M)
BOOM SAFETY ROCK SYSTEM
QUICK CLAMP PIPING
QUICK CLAMP (HOOK TYPE, MCV TY 1)
QUICK CLAMP (CLOSE TYPE, MCV TY 1)
QUICK CLAMP (HOOK TYPE, MCV TY 2)
QUICK CLAMP (CLOSE TYPE, MCV TY 2)
QUICK CLAMP (HOOK TYPE)
QUICK CLAMP (CLOSE TYPE)
ARM HYD PIPING (3.2M, STD)
ARM HYD PIPING (2.2M)
ARM HYD PIPING (2.5M)
ARM HYD PIPING (4.05M)
ARM SAFETY LOCK SYSTEM
D/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY1)
D/ACT MAIN PIP KIT2 (CLUSTER TY1,MCV TY1)
D/ACT MAIN PIP KIT3 (CLUSTER TY2,MCV TY1)
D/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY2)
D/ACT MAIN PIP KIT2 (CLUSTER TY1,MCV TY2)
D/ACT MAIN PIP KIT3 (CLUSTER TY2,MCV TY2)
ATTACH PIPING KIT (S & D/ACTING)
SINGLE PEDAL (DOUBLE ACTING)
S/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY1)
S/ACT MAIN PIP KIT2 (CLUSTER TY2,MCV TY1)
S/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY2)
S/ACT MAIN PIP KIT2 (CLUSTER TY2,MCV TY2)
MAIN PUMP
REGULATOR
GEAR PUMP
EPPR VALVE
PTO ASSEMBLY
MAIN CONTROL VALVE (1/4)
MAIN CONTROL VALVE (2/4)
MAIN CONTROL VALVE (3/4)
MAIN CONTROL VALVE (4/4)
MAIN CONTROL VALVE (1/5, TYPE 2)
MAIN CONTROL VALVE (2/5, TYPE 2)
MAIN CONTROL VALVE (3/5, TYPE 2)
MAIN CONTROL VALVE (4/5, TYPE 2)
MAIN CONTROL VALVE (5/5, TYPE 2)
SWING MOTOR (TYPE 1)
SWING MOTOR (TYPE 2)
SWING REDUCTION GEAR (TYPE 1)
SWING REDUCTION GEAR (TYPE 2)
TRAVEL MOTOR (1/2)
TRAVEL MOTOR (2/2)
TRAVEL REDUCTION GEAR
REMOTE CONTROL LEVER
REMOTE CONTROL PEDAL
TURNING JOINT
BOOM CYLINDER
ARM CYLINDER
BUCKET CYLINDER
SOLENOID VALVE
SOLENOID VALVE
BREAKER ASSY (1/3)
BREAKER ASSY (2/3)
BREAKER ASSY (3/3)
UNDERCARRIAGE MOUNTING
UNDERCARRIAGE MTG (HIGH WALKER)
LOWER ROLLER
UPPER ROLLER
IDLER
TRACK CHAIN
ADJUST COMPONENT
CAB MOUNTING
CAB ASSY (1/4)
CAB ASSY (2/4)
CAB ASSY (3/4)
CAB ASSY (4/4, DOOR)
CAB INTERIOR 1
CAB INTERIOR 2
CAB INTERIOR 3
CONSOLE BOX 1 (LH)
CONSOLE BOX 2 (LH)
CONSOLE BOX 3 (RH)
SEAT BASE ASSY
SEAT (STD)
SEAT (SUSPENSION, HEATED)
STORAGE BOX ASSY
BOTTOM PLATE MOUNTING
COWLING 1
COWLING 2
SIDE COWL ASSY (LH)
SIDE COVER ASSY (LH)
SIDE COWL ASSY (RH)
ENGINE HOOD
UNDER COVER
TOOL BOX MOUNTING
TOOL BOX
GROMMET GROUP
UPPER FRAME & COUNTERWEIGHT
LOWER FRAME & COVER
LOWER FRAME & COVER (HIGH WALKER)
SWING RING GREASE LUB SYSTEM
BOOM MOUNTING
BOOM (6.45M,STD & H/DUTY)
BOOM (6.15M, SHORT)
ARM (3.20M, STD & H/DUTY)
ARM (4.05M, LONG)
ARM (2.50M, SHORT)
ARM (2.20M, SHORT)
BUCKET CONTROL GROUP
BUCKET (5 TEETH)
BUCKET (3 TEETH)
BUCKET (4 TEETH)
BUCKET (6 TEETH)
BUCKET (5 TEETH, HEAVY DUTY)
BUCKET (5 TEETH, ROCK)
BUCKET (4 TEETH, HEAVY DUTY)
TOOLS
HCE-DT KIT
DECALS
MANUALS
CYLINDER BLOCK
CRANK SHAFT BEARING
OIL PAN
ENGINE ATTACHING PARTS
CYLINDER HEAD
VALVE GEAR TRAIN
ROCKER COVER
CRANK SHAFT & PULLEY
FLYWHEEL
PISTON & CONNECTING ROD
TIMING GEAR
WATER PUMP
FAN & PULLEY
WATER PIPE & THERMOSTAT
OIL PUMP & GEAR TRAIN
OIL STRAINER
OIL FILTER MOUNTING
OIL FILTER
OIL COOLER MOUNTING
OIL COOLER
OIL FILLER & GAUGE
BREATHER
OIL LINE (GENERATOR)
OIL LINE
TURBOCHARGER
INLET MANIFOLD
EXHAUST MANIFOLD
FLYWHEEL HOUSING
FUEL INJECTION PIPE
FUEL HOSE
FUEL RETURN SYSTEM
FUEL FILTER
FUEL INJECTION PUMP MOUNTING
FUEL INJECTION NOZZLE MOUNTING
NOZZLE ASSY
STARTER MOUNTING
STARTER
ALTERNATOR MOUNTING
INJECTION PUMP DRIVE MOUNTING
OIL PRESSURE SWITCH & SENDER
11
12
13
14
15
18
19
19
19
20
20
22
23
24
30
30
30
32
32
Позиция на иллюстрации
Заводской номер детали
Название детали
11
P840-042025
HOSE ASSY-SYN THD
12
P840-042026
HOSE ASSY-SYN THD
13
P840-042052
HOSE ASSY-SYN THD
14
P840-042063
HOSE ASSY-SYN THD
15
P840-042050
HOSE ASSY-SYN THD
18
31QA-50200
CONNECTOR
19
P010-430011
CONNECTOR
20
31NB-50280
FITTING
22
31Q6-50370
CLAMP-HOSE
23
31Q6-50380
CLAMP-HOSE
24
31N8-50390
CLAMP-HOSE
30
S035-081526
BOLT-W/WASHER
32
S651-810002
NIPPLE-GREASE
