Каталог запасных частей к технике: Hyundai R330LC-9SH. ARM CYLINDER
31-2
31-3
31-4
31-5
31-6
31-7
1
2
3
4
5
10
13
14
20
21
23
24
24
26
27
29
30
30-1
30-2
30-3
30-4
30-5
30-6
30-7
31
31-1
32
34
31Y1-33110
6
6
7
8
9
9
11
11
12
12
15
15
16
16
17
17
18
19
19
22
22
25
25
25
25
25
28
28
33
33

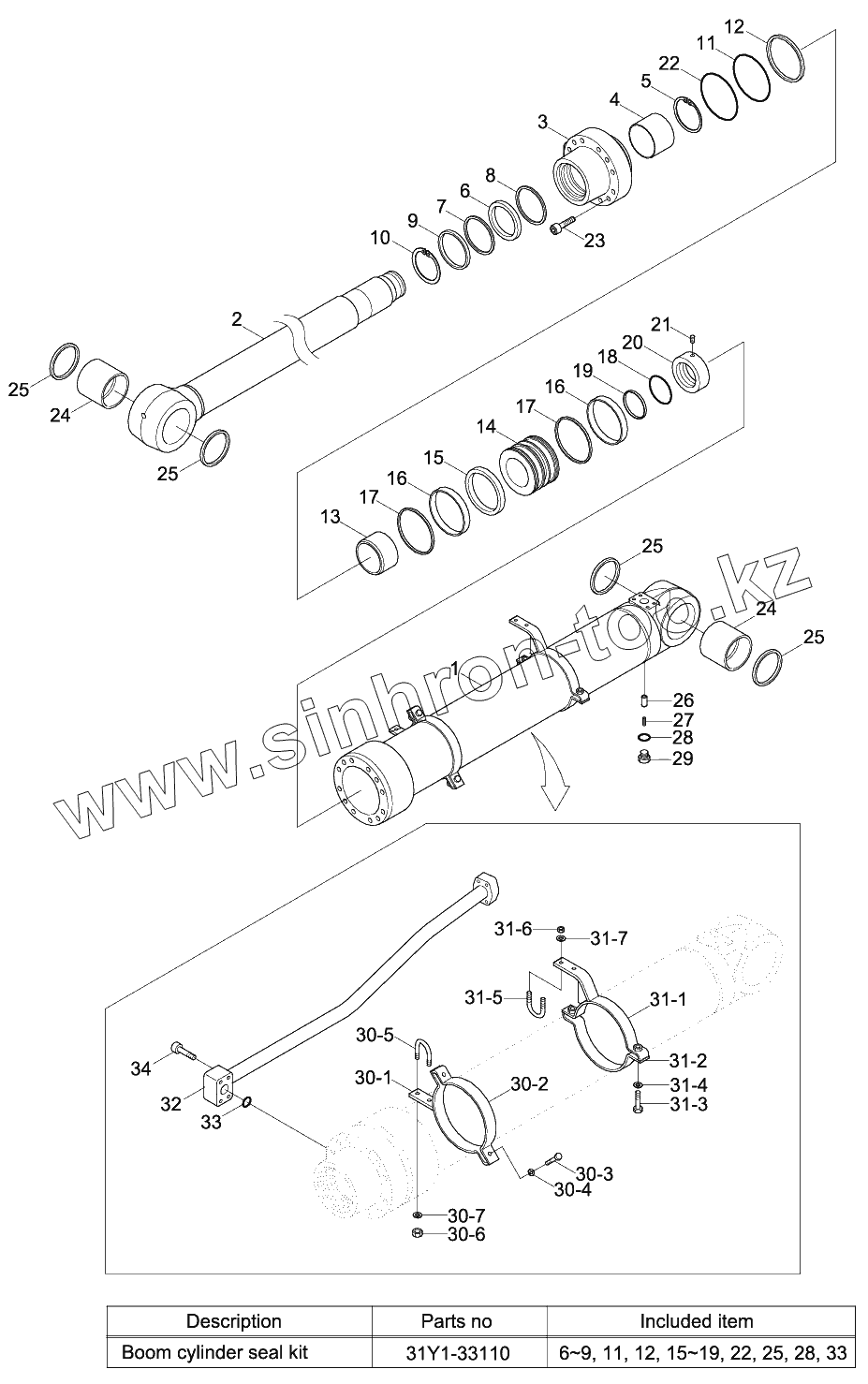

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31-2 | 31YC-31530 | BAND | |
| 31-3 | S015-120452 | BOLT-HEX | |
| 31-4 | S411-120002 | WASHER-SPRING | |
| 31-5 | S070-053442 | U-BOLT | |
| 31-6 | S205-101002 | NUT-HEX | |
| 31-7 | S411-100002 | WASHER-SPRING | |
| 31Q9-50130 | 31Q9-50130 | ARM CYLINDER ASSY | |
| 31Y1-32941 | 31Y1-32941 | ARM CYLINDER SUB | |
| 1 | 31Y1-32950 | TUBE ASSY | |
| 2 | 31Y1-33010 | ROD ASSY | |
| 3 | 31Y1-33051 | GLAND | |
| 4 | S732-110045 | BUSHING-DD2 | |
| 5 | Y191-117000 | RING-SNAP | |
| 10 | Y190-126000 | RING-SNAP | |
| 13 | 31YC-28105 | RING-CUSHION | |
| 14 | 31Y1-33090 | PISTON | |
| 20 | 31YC-68060 | NUT-LOCK | |
| 21 | S114-100164 | SCREW-SET | |
| 23 | S109-220904 | BOLT-SOCKET | |
| 24 | 31YC-15100 | BUSHING | |
| 26 | 31YC-2A060 | VALVE-CHECK | |
| 27 | 31YC-99071 | SPRING-COIL | |
| 29 | P220-110103 | PLUG-HEX | |
| 30 | 31Y1-33120 | BAND ASSY-R | |
| 30-1 | 31Y1-33130 | BAND SUB ASSY | |
| 30-2 | 31YC-31530 | BAND | |
| 30-3 | S015-120452 | BOLT-HEX | |
| 30-4 | S411-120002 | WASHER-SPRING | |
| 30-5 | S070-053442 | U-BOLT | |
| 30-6 | S205-101002 | NUT-HEX | |
| 30-7 | S411-100002 | WASHER-SPRING | |
| 31 | 31Y1-33140 | BAND ASSY-B | |
| 31-1 | 31Y1-33150 | BAND SUB ASSY | |
| 32 | 31Y1-33160 | PIPE ASSY-R | |
| 34 | S107-100554 | BOLT-SOCKET | |
| 31Y1-33110 | 31Y1-33110 | SEAL KIT | |
| 6 | Y220-110013 | SEAL-ROD | |
| 7 | Y180-110020 | RING-BACK UP | |
| 8 | Y240-110012 | RING-BUFFER | |
| 9 | Y110-110011 | WIPER-DUST | |
| 11 | S631-150004 | O-RING | |
| 12 | 31YC-CP150 | RING-BACK UP | |
| 15 | Y420-160000 | SEAL-PISTON | |
| 16 | Y310-160203 | RING-WEAR | |
| 17 | Y440-160102 | RING-DUST | |
| 18 | S632-085004 | O-RING | |
| 19 | 31YC-CG085 | RING-BACK UP | |
| 22 | 31YC-99H80 | O-RING | |
| 25 | Y020-100100 | SEAL-DUST,DLI,KPU | |
| 28 | S631-014004 | O-RING | |
| 33 | Y171-024004 | O-RING |
