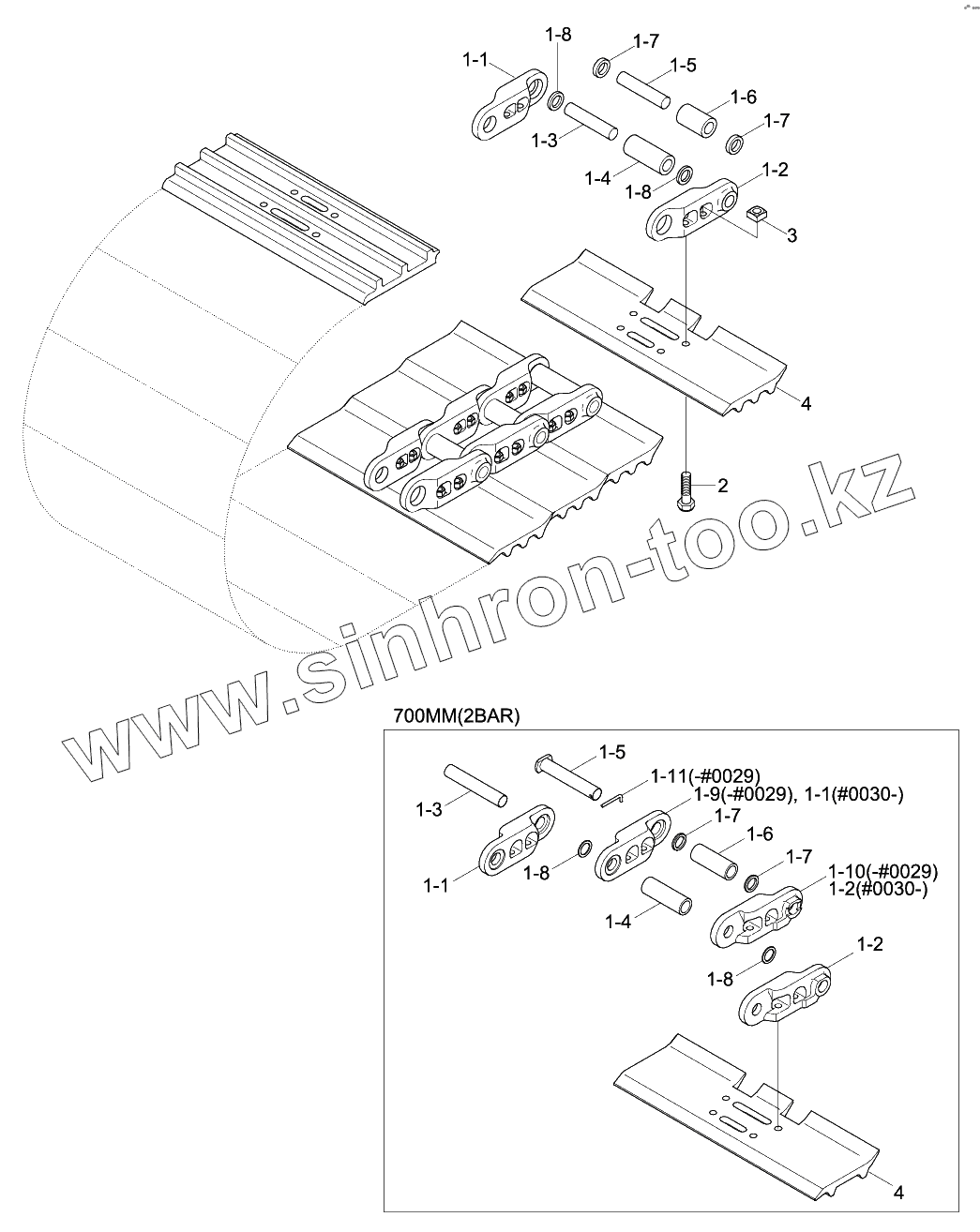

Каталог запасных частей к технике: Hyundai R330LC-9S. TRACK CHAIN
1
1-1
1-1
1-2
1-2
1-3
1-3
1-4
1-4
1-5
1-5
1-6
1-6
1-7
1-7
1-8
1-8
2
3
4
4
4
4
4
4
4
4
4
1
1-1
1-2
1-2
1-3
1-4
1-5
1-6
1-7
1-7
1-8
1-8
1-9
1-10
1-11
4
2
3
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 81N8-26032GG | 81N8-26032GG | TRACK CHAIN ASSY | |
| 81N8-25040BG | 81N8-25040BG | Track Chain Assy | |
| 81N8-26042GG | 81N8-26042GG | TRACK CHAIN ASSY | |
| 81N8-25060BG | 81N8-25060BG | Track Chain Assy | |
| 81N8-26062GG | 81N8-26062GG | TRACK CHAIN ASSY | |
| 81N8-25070BG | 81N8-25070BG | Track Chain Assy | |
| 81N8-26072GG | 81N8-26072GG | TRACK CHAIN ASSY | |
| 81N8-27041BG | 81N8-27041BG | Track Chain Assy | |
| 81N8-27042GG | 81N8-27042GG | TRACK CHAIN ASSY | |
| 1 | 81N8-27600 | Track Link Assy | |
| 1-1 | 81N8-26102 | TRACK LINK-RH | |
| 1-1 | 81EH-20111 | TRACK LINK-RH | |
| 1-2 | 81N8-26112 | TRACK LINK-LH | |
| 1-2 | 81EH-20121 | TRACK LINK-LH | |
| 1-3 | 81N8-26141 | TRACK PIN-REGULAR | |
| 1-3 | 81EH-20150 | TRACK PIN-REGULAR | |
| 1-4 | 81N8-26151 | TRACK BUSH-REGULAR | |
| 1-4 | 81EH-20170 | BUSHING-REGULAR | |
| 1-5 | 81N8-26161 | TRACK PIN-MATSTER | |
| 1-5 | 81EH-20160 | TRACK PIN-MASTER | |
| 1-6 | 81N8-26171 | TRACK BUSHING-MASTER | |
| 1-6 | 81EH-20180 | BUSHING-MASTER | |
| 1-7 | 81EH-20190 | SPACER | |
| 1-8 | 81EH-20210 | SEAL-DUST | |
| 2 | 81EH-20021 | BOLT-TRACK | |
| 3 | 81EH-20031 | NUT-TRACK | |
| 4 | 81N8-26531 | SHOE-TRACK | |
| 4 | 81N8-25540BG | Shoe-Track | |
| 4 | 81N8-26541 | SHOE-TRACK | |
| 4 | 81N8-25560BG | Shoe-Track | |
| 4 | 81N8-26561 | SHOE-TRACK | |
| 4 | 81N8-25570BG | Shoe-Track | |
| 4 | 81N8-26571 | SHOE-TRACK | |
| 4 | 81NB-27541BG | Shoe-Track | |
| 4 | 81NB-27542 | SHOE-TRACK | |
| 81N8-25030BG | 81N8-25030BG | Track Chain Assy | |
| 1 | 81N8-26600 | Track Link Assy | |
| 1-1 | 81N8-26100 | Track Link-Rh | |
| 1-2 | 81N8-26110 | Track Link-Lh | |
| 1-3 | 81N8-26140 | Track Pin-Regular | |
| 1-4 | 81N8-26150 | Bushing-Regular | |
| 1-5 | 81N8-26160 | Track Pin-Master | |
| 1-6 | 81N8-26170 | Bushing-Master | |
| 1-7 | 81N8-26180 | SPACER | |
| 1-8 | 81N8-26210 | SEAL-DUST | |
| 1-9 | 81EH-20131 | Master Link-Rh | |
| 1-10 | 81EH-20141 | Master Link-Lh | |
| 1-11 | 81EH-20200 | Pin-Clamping | |
| 4 | 81N8-25530BG | Shoe-Track | |
| 81N8-T0000 | 81N8-T0000 | TRACK BOLT & NUT KIT | |
| 81EH-T0000 | 81EH-T0000 | Track Bolt & Nut Kit | |
| 2 | 81N8-26610 | BOLT-TRACK | |
| 3 | 81N8-26620 | NUT-TRACK |
