78Q8-40101
78Q8-40101

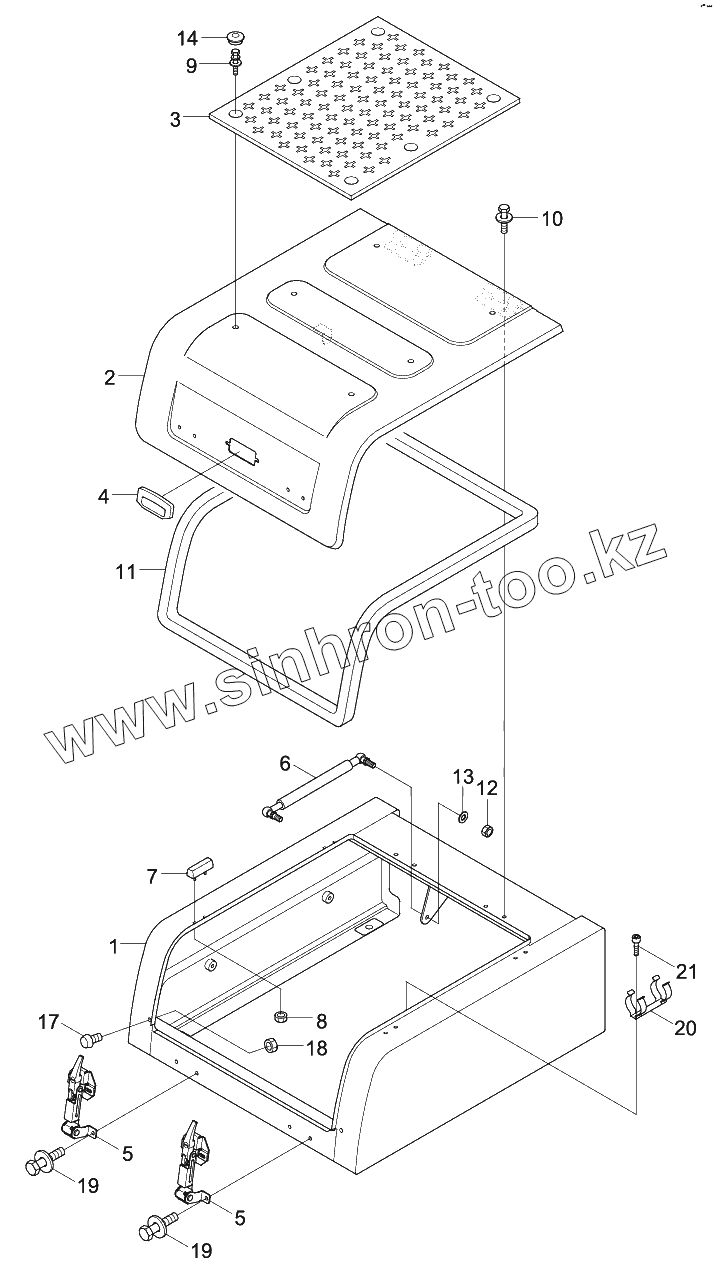

Tool Box Assy
1
78Q8-41000
Tool Box Wa
2
71Q8-42003
COVER WA
3
71Q8-45101
NON SLIP PLATE
4
71Q6-42600
HOLDER-PULLS
5
71Q6-42400
CATCH ASSY
6
71Q8-41600
GAS SPRING ASSY
7
71Q6-41200
STOPPER-RUBBER
8
S275-060006
NUT-SELF LOCKING
9
71Q6-50020
BOLT-W/WASHER
10
S037-102556
BOLT-W/WASHER
11
S776-034500
WEATHER STRIP
12
S203-081006
NUT-HEX
13
S403-082006
WASHER-PLAIN
14
71Q6-41700
CAP
17
71Q6-41900
STOPPER-RUBBER
18
S275-08000B
NUT-SELF LOCKING
19
S035-082026
BOLT-W/WASHER
20
71M9-52200
CLAMP WA- BAND
21
S109-080156
BOLT-SOCKET
