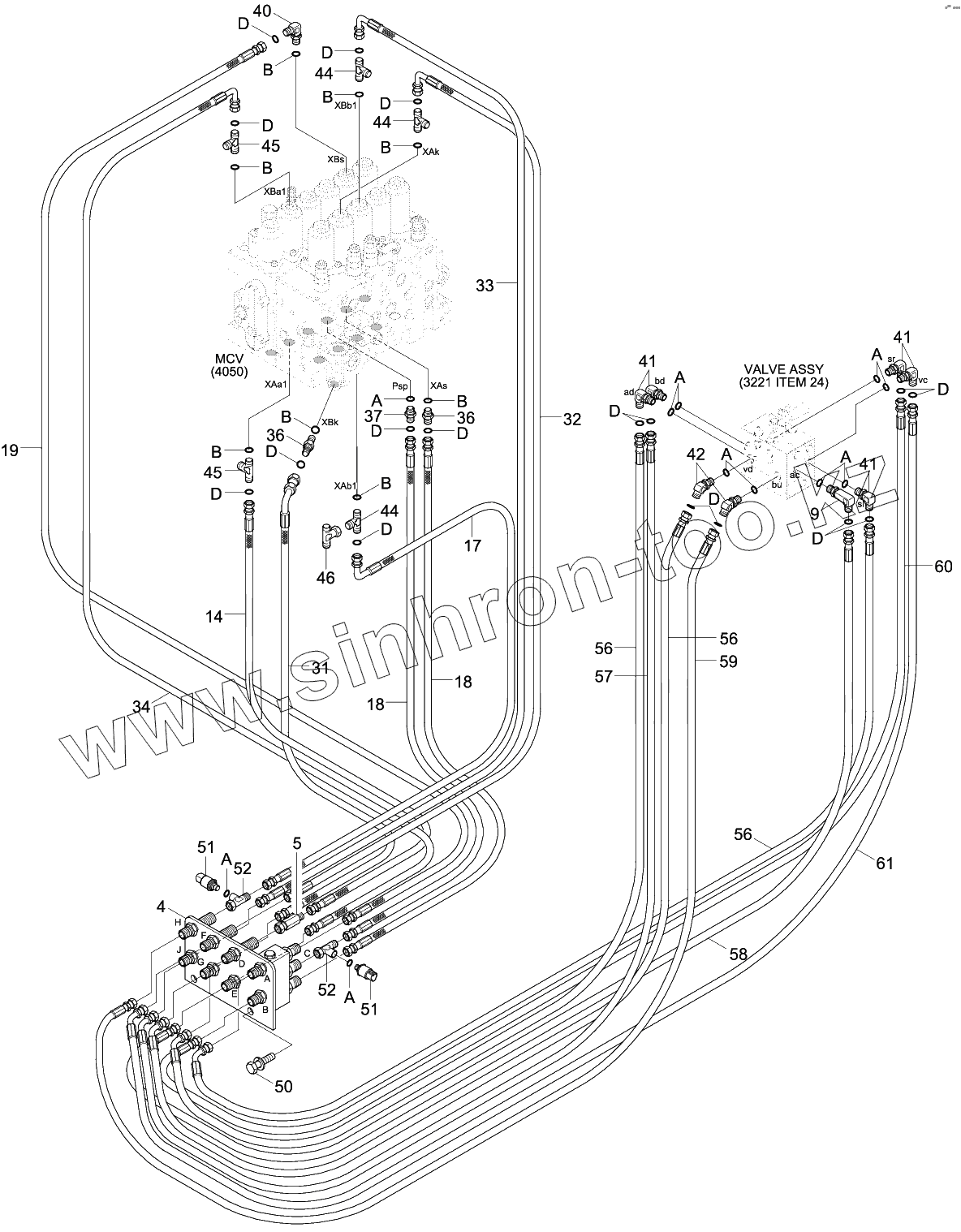

Каталог запасных частей к технике: Hyundai R330LC-9S. PILOT HYD PIPING (CONTROL 2)
14
17
18
18
19
31
32
33
34
36
36
37
4
40
41
41
41
42
44
44
44
45
45
46
5
50
51
51
52
52
56
56
56
57
58
59
60
61
9
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
D
D
D
D
D
D
D
D
D
D
D
D
D
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 14 | X400-062033 | Hose Assy-Synf,Orfs | |
| 16 | X400-062018 | HOSE ASSY-SYNF,ORFS | |
| 17 | X420-062031 | Hose Assy-Orfs 0x90 | |
| 18 | X400-062032 | Hose Assy-Synf,Orfs | |
| 19 | X400-062036 | HOSE ASSY-SYNF,ORFS | |
| 31 | X420-062033 | HOSE ASSY-ORFS 0X90 | |
| 32 | X420-062036 | HOSE ASSY-ORFS 0X90 | |
| 33 | X420-062037 | HOSE ASSY-ORFS 0X90 | |
| 34 | X420-062040 | Hose Assy-Orfs 0x90 | |
| 36 | X500-110002 | CONNECTOR-ORFS | |
| 37 | X500-110011 | CONNECTOR-ORFS | |
| 4 | 31N8-24010 | Terminal Assy-C | |
| 40 | X520-110002 | ELBOW-90,ORFS | |
| 41 | X520-110011 | ELBOW-90,ORFS | |
| 42 | X530-110011 | ELBOW-45,ORFS | |
| 44 | X820-065152 | TEE-R/TYPE,ORFS | |
| 45 | X820-065252 | TEE-R/TYPE,ORFS | |
| 46 | X840-525251 | TEE-R/TYPE,SWIVEL,ORFS | |
| 5 | 31ND-22700 | VALVE-SHOCKLESS | |
| 50 | S037-103026 | BOLT-W/WASHER | |
| 51 | 31Q4-40830 | SENSOR-PRESSURE | |
| 52 | 31N6-66090 | Tee-Test | |
| 56 | X410-062012 | HOSE ASSY-ORFS 0X45 | |
| 57 | X410-062013 | HOSE ASSY-ORFS 0X45 | |
| 58 | X410-062014 | HOSE ASSY-ORFS 0X45 | |
| 59 | X410-062015 | HOSE ASSY | |
| 60 | S631-011004 | O-RING | |
| 61 | X410-062019 | HOSE ASSY-ORFS 0X45 | |
| 9 | 31N7-22100 | ELBOW-90,ORFS,LONG | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| D | S621-012001 | O-RING |
