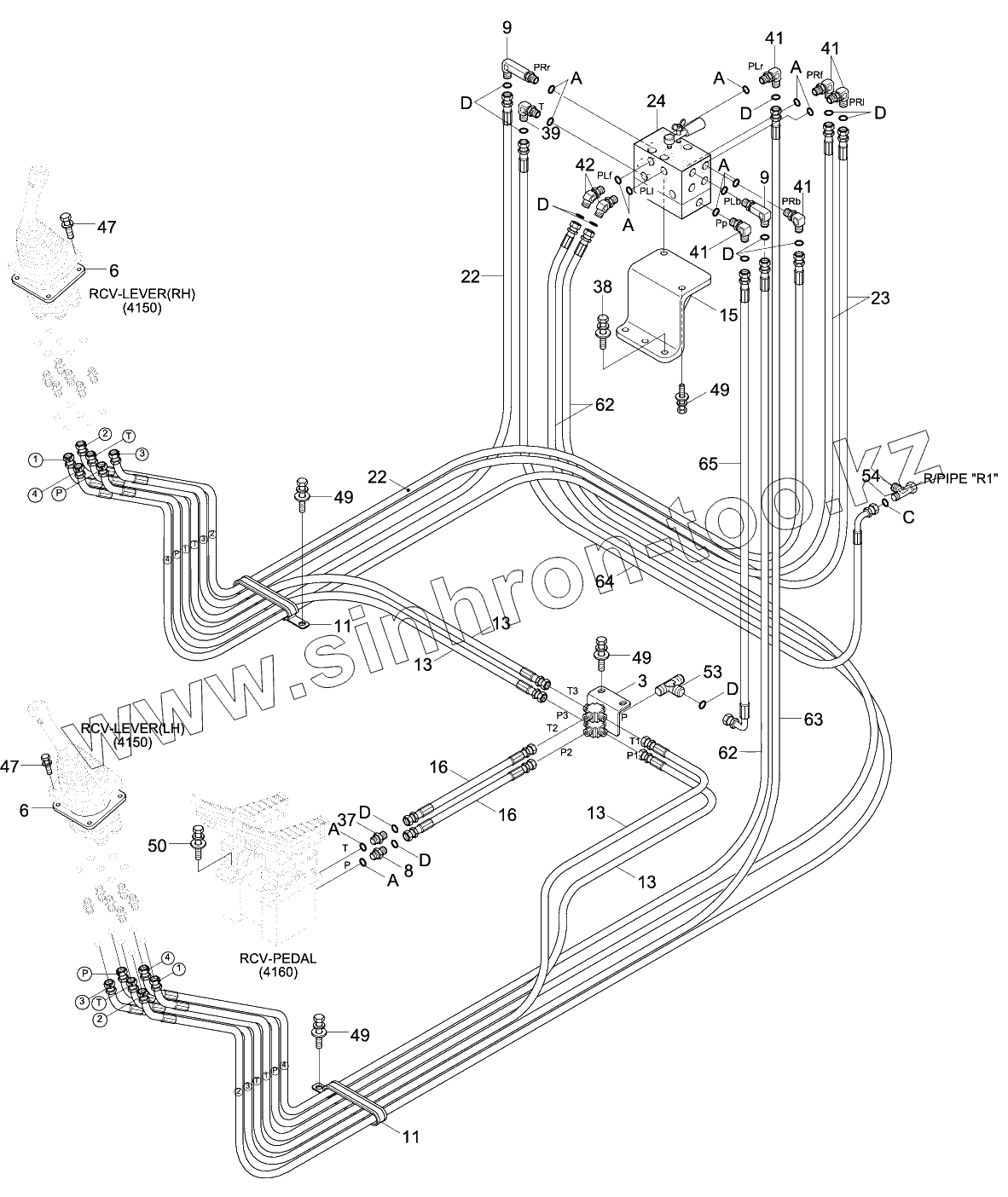

Каталог запасных частей к технике: Hyundai R330LC-9S. PILOT HYD PIPING (CONTROL 1)
16
16
11
11
13
13
13
13
15
22
22
23
24
3
37
38
39
41
41
41
41
42
47
47
49
49
49
49
50
53
54
6
6
62
62
63
64
65
8
9
9
A
A
A
A
A
A
A
C
D
D
D
D
D
D
D
D
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 16 | X400-062018 | HOSE ASSY-SYNF,ORFS | |
| 11 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 13 | P920-062023 | HOSE ASSY-ORFS 0X45 | |
| 15 | 31Q6-20190 | BRACKET | |
| 22 | X410-062044 | HOSE ASSY-ORFS 0X45 | |
| 23 | X410-062050 | HOSE ASSY-ORFS 0X45 | |
| 24 | 31Q6-22000 | PATERN CHANGE VALVE | |
| 3 | 31Q8-20100 | CROSS ASSY | |
| 37 | X500-110011 | CONNECTOR-ORFS | |
| 38 | S037-123026 | BOLT-W/WASHER | |
| 39 | X520-110001 | ELBOW-90,ORFS | |
| 41 | X520-110011 | ELBOW-90,ORFS | |
| 42 | X530-110011 | ELBOW-45,ORFS | |
| 47 | S035-063046 | BOLT-W/WASHER | |
| 49 | S037-102526 | BOLT-W/WASHER | |
| 50 | S037-103026 | BOLT-W/WASHER | |
| 53 | X840-525252 | Tee-R/Type, Swivel, Orfs | |
| 54 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 6 | 31M6-51061 | SHIM | |
| 62 | X410-062042 | HOSE ASSY-ORFS 0X45 | |
| 63 | X410-062049 | HOSE ASSY-SYNF,ORFS(0X45) | |
| 64 | X420-042017 | HOSE ASSY-ORFS 0X90 | |
| 65 | P930-062025 | HOSE ASSY-ORFS 0X90 | |
| 8 | 31N6-25070 | FILTER-LAST GUARD | |
| 9 | 31N7-22100 | ELBOW-90,ORFS,LONG | |
| A | S631-011004 | O-RING | |
| C | S621-011001 | O-RING | |
| D | S621-012001 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
