Каталог запасных частей к технике: Hyundai R330LC-9S. FUEL SHUTOFF VALVE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING ENGINE CONTROL SYSTEM AIR INTAKE SYSTEM EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT RH ELECTRIC (CLUSTER TYPE 1) LH ELECTRIC (CLUSTER TYPE 1) RH ELECTRIC (CLUSTER TYPE 2) LH ELECTRIC (CLUSTER TYPE 2) BOOM ELECTRIC ENGINE ELECTRIC (CLUSTER TYPE 1) ENGINE ELECTRIC (CLUSTER TYPE 2) CAB ELECTRIC 1 CAB ELECTRIC 2 CAB ELECTRIC 3 BOTTOM ELECTRIC AIR COMPRESSOR ELECTRIC (#0107-) ELECTRIC BOX CLUSTER (TYPE 1) CLUSTER (TYPE 2) FUEL FILLER PUMP FUSE BOX PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE, MCV TYPE 1) UPPER HYD PIPING (BASE, MCV TYPE 2) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING (ATTACH, MCV TYPE 2) UPPER HYD PIPING (TRAVEL, MCV TYPE 1) UPPER HYD PIPING (TRAVEL, MCV TYPE 2) PILOT HYD PIPING (CONTROL 1) PILOT HYD PIPING (CONTROL 2) PILOT HYD PIPING (CONTROL 3) PILOT HYD PIPING (CONTROL 1) PILOT HYD PIPING (CONTROL 2) PILOT HYD PIPING (CONTROL 3) PILOT HYD PIP (BASE1,CLUSTER TY1,MCV TY1) PILOT HYD PIP (BASE2,CLUSTER TY1,MCV TY1) PILOT HYD PIP (BASE3,CLUSTER TY1,MCV TY1) PILOT HYD PIP (BASE1,CLUSTER TY2,MCV TY1) PILOT HYD PIP (BASE2,CLUSTER TY2,MCV TY1) PILOT HYD PIP (BASE3,CLUSTER TY2,MCV TY1) PILOT HYD PIP (BASE1,CLUSTER TY1,MCV TY2) PILOT HYD PIP (BASE2,CLUSTER TY1,MCV TY2) PILOT HYD PIP (BASE3,CLUSTER TY1,MCV TY2) PILOT HYD PIP (BASE1,CLUSTER TY2,MCV TY2) PILOT HYD PIP (BASE2,CLUSTER TY2,MCV TY2) PILOT HYD PIP (BASE3,CLUSTER TY2,MCV TY2) TRAVEL HYD PIPING TRAVEL HYD PIPING (HIGH WALKER) BOOM HYD PIPING (6.45M, STD) BOOM HYD PIPING (6.15M) BOOM GREASE LUB SYS (6.45M, STD) BOOM GREASE LUB SYS (6.15M) BOOM SAFTY ROCK SYSTEM QUICK CLAMP PIPING QUICK CLAMP (HOOK TYPE, MCV TY 1) QUICK CLAMP (CLOSE TYPE, MCV TY 1) QUICK CLAMP (HOOK TYPE, MCV TY 2) QUICK CLAMP (CLOSE TYPE, MCV TY 2) QUICK CLAMP (HOOK TYPE) QUICK CLAMP (CLOSE TYPE) ARM HYD PIPING (3.2M, STD) ARM HYD PIPING (2.2M) ARM HYD PIPING (2.5M) ARM HYD PIPING (4.05M) ARM SAFETY LOCK SYSTEM D/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY1) D/ACT MAIN PIP KIT2 (CLUSTER TY1,MCV TY1) D/ACT MAIN PIP KIT3 (CLUSTER TY2,MCV TY1) D/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY2) D/ACT MAIN PIP KIT2 (CLUSTER TY1,MCV TY2) D/ACT MAIN PIP KIT3 (CLUSTER TY2,MCV TY2) ATTACH PIPING KIT (S & D/ACTING) SINGLE PEDAL (DOUBLE ACTING) S/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY1) S/ACT MAIN PIP KIT2 (CLUSTER TY2,MCV TY1) S/ACT MAIN PIP KIT1 (CLUSTER TY1,MCV TY2) S/ACT MAIN PIP KIT2 (CLUSTER TY2,MCV TY2) MAIN PUMP REGULATOR GEAR PUMP EPPR VALVE MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) MAIN CONTROL VALVE (1/5, TYPE 2) MAIN CONTROL VALVE (2/5, TYPE 2) MAIN CONTROL VALVE (3/5, TYPE 2) MAIN CONTROL VALVE (4/5, TYPE 2) MAIN CONTROL VALVE (5/5, TYPE 2) SWING MOTOR (TYPE 1) SWING MOTOR (TYPE 2) SWING REDUCTION GEAR (TYPE 1) SWING REDUCTION GEAR (TYPE 2) TRAVEL MOTOR (1/2) TRAVEL MOTOR (2/2) TRAVEL REDUCTION GEAR REMOTE CONTROL LEVER REMOTE CONTROL PEDAL TURNING JOINT BOOM CYLINDER ARM CYLINDER BUCKET CYLINDER SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE BREAKER ASSY (1/3) BREAKER ASSY (2/3) BREAKER ASSY (3/3) UNDERCARRIAGE MOUNTING UNDERCARRIAGE MTG (HIGH WALKER) LOWER ROLLER UPPER ROLLER IDLER TRACK CHAIN ADJUST COMPONENT CAB MOUNTING CAB ASSY (1/4) CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX 1 (LH) CONSOLE BOX 2 (LH) CONSOLE BOX 3 (RH) SEAT BASE ASSY SEAT (STD) SEAT (SUSPENSION, HEATED) STORAGE BOX ASSY BOTTOM PLATE MOUNTING COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & COVER LOWER FRAME & COVER (HIGH WALKER) SWING RING GREASE LUB SYSTEM BOOM MOUNTING BOOM (6.45M,STD & H/DUTY) BOOM (6.15M, SHORT) ARM (3.20M, STD & H/DUTY) ARM (4.05M, LONG) ARM (2.50M, SHORT) ARM (2.20M, SHORT) BUCKET CONTROL GROUP BUCKET (5 TEETH) BUCKET (3 TEETH) BUCKET (4 TEETH) BUCKET (6 TEETH) BUCKET (5 TEETH, HEAVY DUTY) BUCKET (5 TEETH, ROCK) BUCKET (4 TEETH, HEAVY DUTY) TOOLS HCE-DT KIT DECALS MANUALS AIR INTAKE HEATER DATAPLATE CAMSHAFT & VALVE TAPPETS FRONT GEAR COVER ROCKER LEVER CYLINDER BLOCK CRANKSHAFT & MAIN BEARINGS CRANKCASE & BREATHER VIBRATION DAMPER FRONT GEAR TRAIN ACCESSORY FLYWHEEL MOUNTING THERMOSTAT ALTERNATOR LOCATION ACCESSORY DRIVE PULLEY MECHANICAL TACHOMETER DRIVE FAN DRIVE AIR FUEL CONTROL PLUMBING FUEL FILTER FUEL FILTER PLUMBING FLYWHEEL HOUSING FUEL PUMP COUPLING FUEL PUMP FUEL SYSTEM ACCESSORIES FUEL PLUMBING FUEL SHUTOFF VALVE FLYWHEEL FUEL INLET TUBE LIFTING BRACKET ENGINE OIL COOLER OIL LEVEL GAUGE LUBRICATING OIL PUMP OIL PAN TORQUE CONVERTER OIL COOLER CYLINDER HEAD FAN PILOT SPACER DEBRIS SHIELD STARTING MOTOR & MOUNTING TURBOCHARGER TURBOCHARGER PLUMBING VALVE COVER CORROSION RESISTER WATER PUMP & INLET CONNECTION WATER OUTLET CONNECTION EXHAUST CONNECTION GEAR HOUSING AIR INTAKE CONNECTION CONNECTING ROD & PISTON FUEL INJECTOR FUEL FILTER PLUMBING

1

1

2

3

4

5

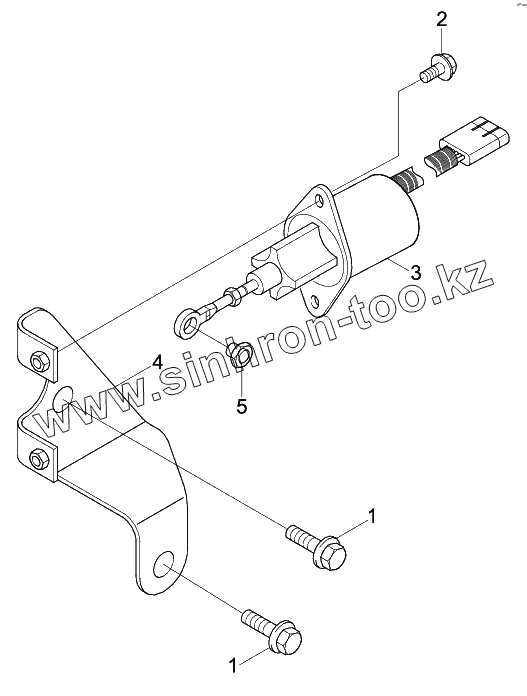

Позиция на иллюстрации	Заводской номер детали		Название детали
3934022	3934022		Washer-Plain
1	3903990		SCREW-HEX F/HEAD CAP
1	3900630		SCREW-HEX F/HEAD CAP
2	3913638		SCREW-HEX F/HEAD CAP
3	3939019		Solenoid-Fuel Pump
4	3938467		Bracket-Solenoid
5	3930683		Nut-Lock
