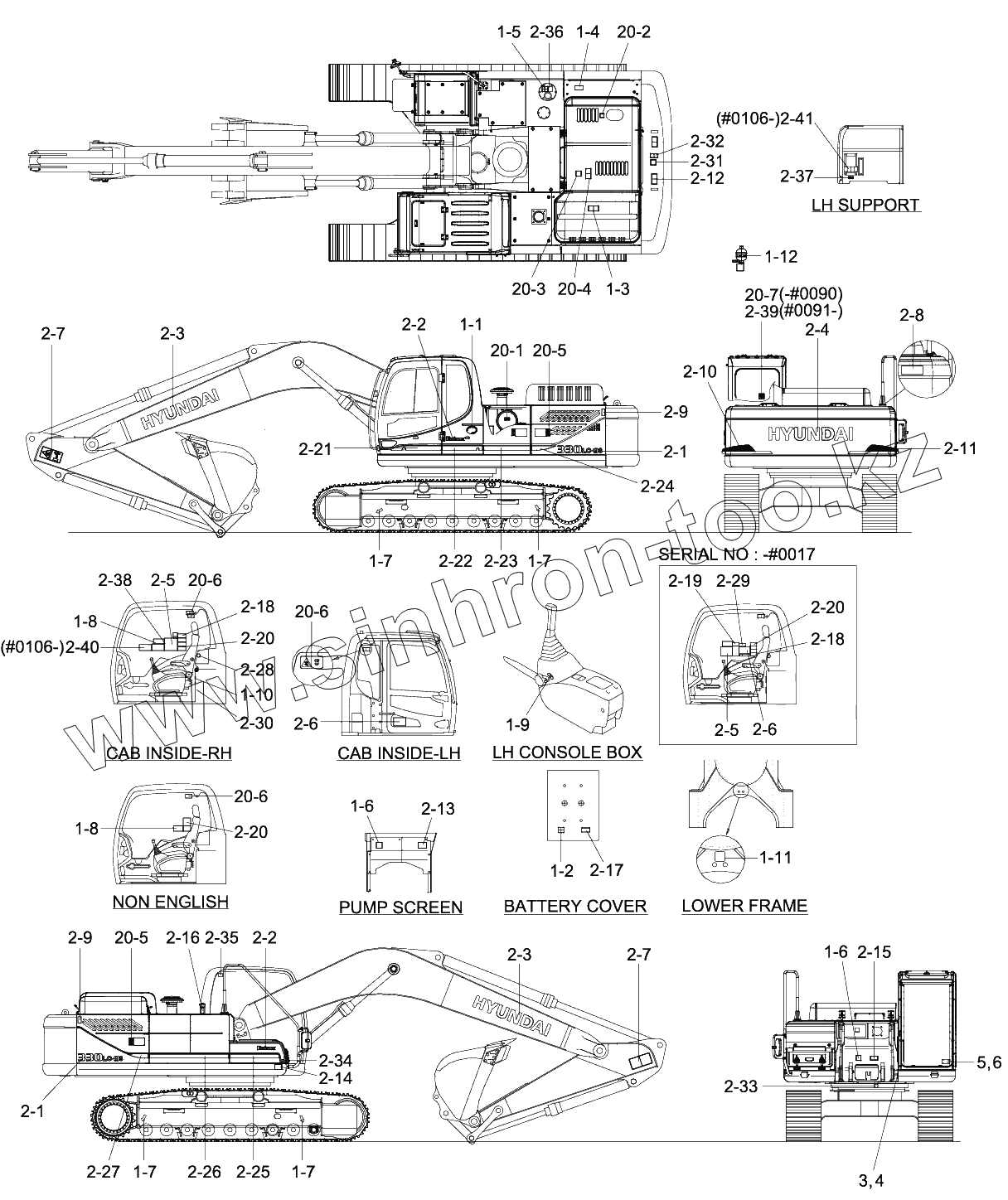

Каталог запасных частей к технике: Hyundai R330LC-9S. DECALS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
6
2-32
2-39
2-41
20-4
2-40
1-8
2-1
2-5
2-5
2-6
1-1
1-2
1-3
1-4
1-5
1-6
1-6
1-7
1-7
1-7
1-7
1-8
1-8
1-9
1-10
1-11
1-12
2-1
2-1
2-2
2-2
2-3
2-3
2-4
2-5
2-5
2-6
2-6
2-7
2-7
2-8
2-9
2-9
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
2-18
2-18
2-19
2-20
2-20
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2-27
2-28
2-29
2-30
2-31
2-33
2-34
2-35
2-36
2-37
2-38
3
4
5
20-1
20-2
20-3
20-5
20-5
20-6
20-6
20-6
20-7
Позиция на иллюстрации Заводской номер детали Название детали
6 91EK-12010 RIVET
2-32 91N6-03140 DECAL-FALLING
2-39 91Q6-07260 DECAL-SAFETY RR WIN
2-41 91Q4-13300 DECAL-A/COMPRESSOR
20-4 91N6-07131 DECAL-NO STEP
2-40 91Q4-13320 DECAL-A/COMP, CAB
1-8 91N6-08200 DECAL-CNTL IDEOGRAM
95Q9-00103 95Q9-00103 Decal Kit
2-1 95Q9-10030 Decal-Model Name
2-5 95Q9-03100 Lifting Chart
2-5 95Q9-04100 Lifting Chart
2-6 95Q9-10711 Service Instruction
3 91LM-14150 Pin Plate
1 91Q9-00100 Decal Kit
1-1 91E1-27110 DECAL-L/EMISSION ENG
1-2 91N6-02120 DECAL-BATT ACCIDENT
1-3 91N6-01121 DECAL-RADIATOR CAP
1-4 91N6-03140 DECAL-FALLING
1-5 91N6-03111 DECAL-HYD OIL LUBRICAT
1-6 91N6-03130 DECAL-H/PRESS HOSE
1-7 91N6-05110 DECAL-SLING IDEOGRAM
1-8 91N6-07201 DECAL-CNTL IDEOGRAM
1-9 92N6-07310 DECAL-SAFETY LEVER
1-10 91N6-07272 DECAL-AIRCON FILTER
1-11 91N6-05120 DECAL-TIE
1-12 91N6-03200 DECAL-ACCUMULATOR
2 95Q9-00101 Decal KitB
2-1 95Q9-10020 Decal-Model Name
2-2 91Q6-17112 DECAL-ROBEX LOGO
2-3 91N6-23160 DECAL-HYUNDAI LOGO
2-4 91N6-26170 DECAL-HYUNDAI LOGO
2-5 95Q9-02100 Lifting Chart
2-6 95Q9-10710 Service Instruction
2-7 91N6-06110 Decal-Keep Clear-Att
2-8 91Q6-07010 DECAL-KEEP CLEAR,RR
2-9 91Q6-07021 DECAL-KEEP CLEAR,SIDE
2-10 91Q6-07031 DECAL-REFLECTING,LH
2-11 91Q6-07040 DECAL-REFLECTING,RH
2-12 91N6-04132 DECAL-LIFTING EYE
2-13 91N6-03102 DECAL-HYD OIL LEVEL
2-14 91N6-07141 DECAL-TRANSPORTING
2-15 91N6-03121 DECAL-R/GEAR GREASE
2-16 91M8-01140 DECAL-FUELING
2-17 91LB-01350 DECAL-ELECTRIC WELDING
2-18 91Q6-07330 DECAL-LOCKING CLAMP
2-19 91N6-07390 Decal-Turbocharger
2-20 91Q6-07371 DECAL-CABIN RH PILLAR
2-21 91Q6-07510 DECAL-BAND,CAB FR
2-22 91Q6-07520 DECAL-BAND,CAB RR
2-23 91Q9-07530 DECAL-BAND,LH FRONT
2-24 91Q9-07540 DECAL-BAND,LH REAR
2-25 91Q8-07610 DECAL-BAND,TOOL BOX
2-26 91Q9-07620 DECAL-BAND,TANK
2-27 91Q9-07630 DECAL-BAND,RH
2-28 91N6-07280 Decal-Hammer
2-29 91Q4-07180 Decal-Water Separator
2-30 91Q4-15860 DECAL-MCU CONNECTOR
2-31 91N6-07131 DECAL-NO STEP
2-33 91Q6-03220 Decal-Swing Bearing
2-34 91M9-02110 DECAL-BATTERY POSITION
2-35 91Q4-02200 DECAL-BEACON LAMP
2-36 91Q6-03230 DECAL-FUEL SHUT OFF
2-37 91Q6-03210 DECAL-RCV L/PATTERN
2-38 91Q4-07920 DECAL-CAUTION(W/S,T/C)
3 91LM-14110 PIN PLATE
4 91EK-12010 RIVET
5 91N6-01280 FOPS FOG PLATE
20 91Q6-00093 Decal Kit-A/S
20-1 91N6-01102 DECAL-A/CLEANER FILTER
20-2 91N6-01111 DECAL-TURBO COVER
20-3 91N6-07121 DECAL-SHEARING
20-5 91N6-07112 DECAL-STAY FIX
20-6 91Q6-07250 DECAL-SAFETY FR WIN
20-7 91N6-07261 Decal-Alternate Exit
