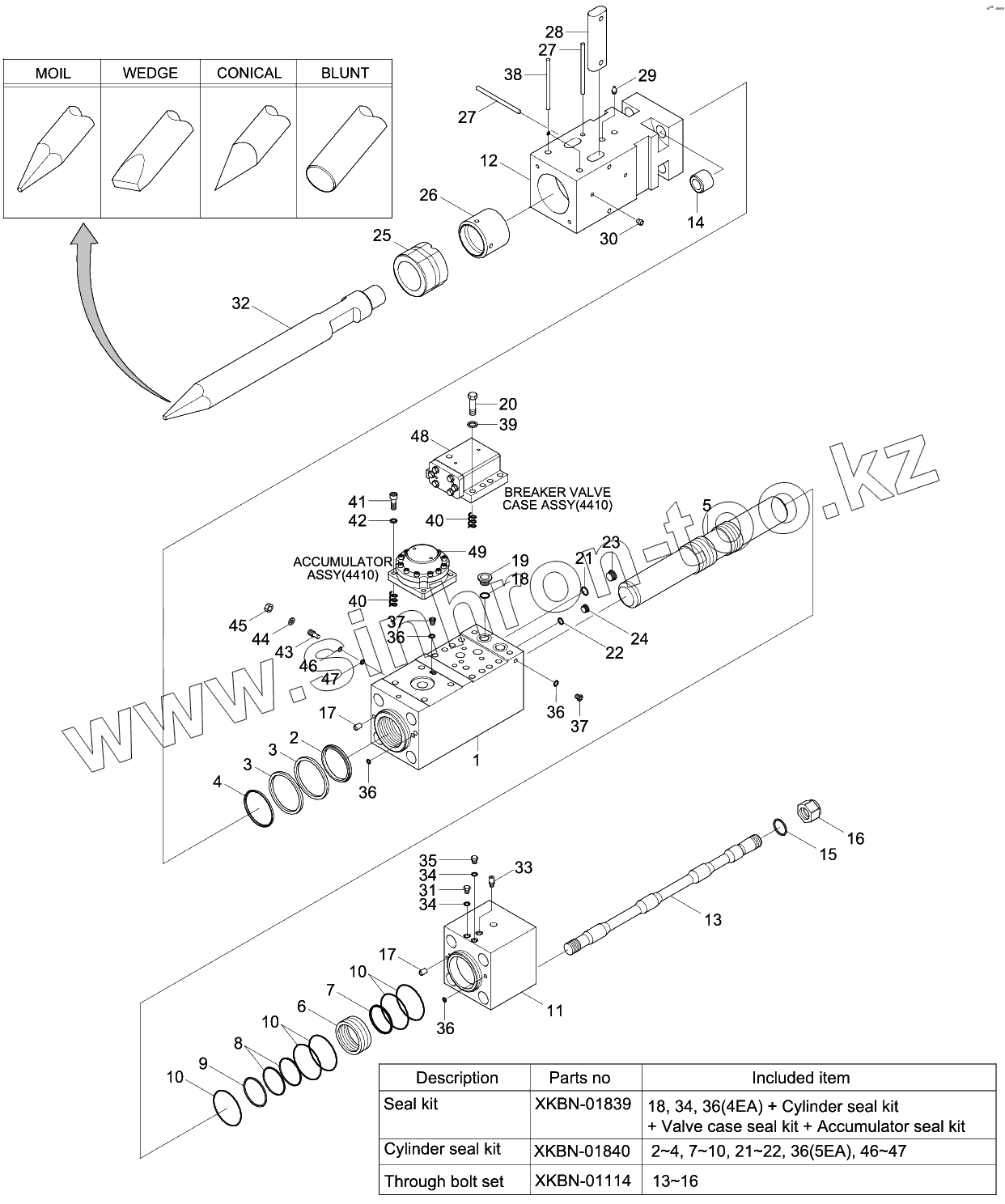

Каталог запасных частей к технике: Hyundai R330LC-9S. BREAKER ASSY (1/3)
XKBN-01839
XKBN-01840
XKBN-01114
1
2
2
3
3
4
4
5
6
7
7
8
9
10
10
10
10
11
12
13
13
14
15
16
16
17
17
18
18
19
20
21
21
22
22
23
24
25
26
27
27
28
29
30
31
32
32
32
32
33
34
34
34
35
36
36
36
36
36
36
37
37
38
39
40
40
41
42
43
44
45
46
46
47
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| XKBN-01839 | XKBN-01839 | SEAL KIT-ALL | |
| XKBN-01840 | XKBN-01840 | SEAL KIT-CYLINDER | |
| 31Q9-81110 | 31Q9-81110 | HYD BREAKER ASSY | |
| XKBN-01114 | XKBN-01114 | BOLT SET-THROUGH | |
| 1 | XKBN-01088 | CYLINDER | |
| 2 | XKBN-01089 | RING-BUFFER | |
| 3 | XKBN-01090 | U-PACKING | |
| 4 | XKBN-01091 | SEAL-DUST | |
| 5 | XKBN-01092 | PISTON | |
| 6 | XKBN-01094 | BUSHING-CYLINDER | |
| 7 | XKBN-01095 | RING-QUAD | |
| 8 | XKBN-01096 | SEAL-STEP | |
| 9 | XKBN-01097 | RING-BUFFER | |
| 10 | XKBN-01098 | O-RING | |
| 11 | XKBN-01099 | CAP-HEAD | |
| 12 | XKBN-01123 | HEAD-FRONT | |
| 13 | XKBN-01115 | BOLT-THROUGH | |
| 14 | XKBN-01116 | NUT-WOOD RUFF | |
| 15 | XKBN-01117 | WASHER-THROUGH BOLT | |
| 16 | XKBN-01118 | NUT-HEX THROUGH BOLT | |
| 17 | XKBN-00901 | PIN-KNOCK | |
| 18 | XKBN-00877 | O-RING | |
| 19 | XKBN-00878 | PLUG-HEX SOCKET | |
| 20 | XKBN-01111 | BOLT-HEX | |
| 21 | XKBN-00914 | O-RING | |
| 22 | XKBN-00127 | O-RING | |
| 23 | XKBN-00986 | PLUG-HEX SOCKET | |
| 24 | XKBN-00880 | Plug-Hex Socket | |
| 25 | XKBN-01924 | COVER-FRONT | |
| 26 | XKBN-01124 | RING-THRUST | |
| 27 | XKBN-01121 | PIN-STOP | |
| 28 | XKBN-01125 | PIN-CHISEL | |
| 29 | XKBN-00892 | Grease-Nipple | |
| 30 | XKBN-00893 | Plug-Hollow | |
| 31 | XKBN-00899 | Air Cap Sub Assy | |
| 32 | XKBN-01928 | CHISEL-BLUNT | |
| 32 | XKBN-01927 | CHISEL-CONICAL | |
| 32 | XKBN-01926 | CHISEL-WEDGE | |
| 32 | XKBN-01925 | CHISEL-MOIL | |
| 33 | XKBN-00898 | Coupling-Screw | |
| 34 | XKBN-00539 | O-Ring | |
| 35 | XKBN-00900 | Plug-Hex Socket | |
| 36 | XKBN-00015 | O-Ring | |
| 37 | XKBN-00881 | Plug-Hex Socket | |
| 38 | XKBN-01122 | PIN-STOP | |
| 39 | XKBN-01112 | WASHER-NORD LOCK | |
| 40 | XKBN-00985 | COIL-HELI | |
| 41 | XKBN-01113 | BOLT-SOCKET | |
| 42 | XKBN-01112 | WASHER-NORD LOCK | |
| 43 | XKBN-00989 | VALVE-AUTO CONTROL | |
| 44 | XKBN-00884 | Washer-Nord Lock | |
| 45 | XKBN-00885 | Nut-Hex | |
| 46 | XKBN-00886 | Ring-Back Up | |
| 47 | XKBN-00887 | O-Ring | |
| 48 | VALVECASE | VALVE CASE ASSY | |
| 49 | ACCUMULATOR | ACCUMULATOR ASSY |
