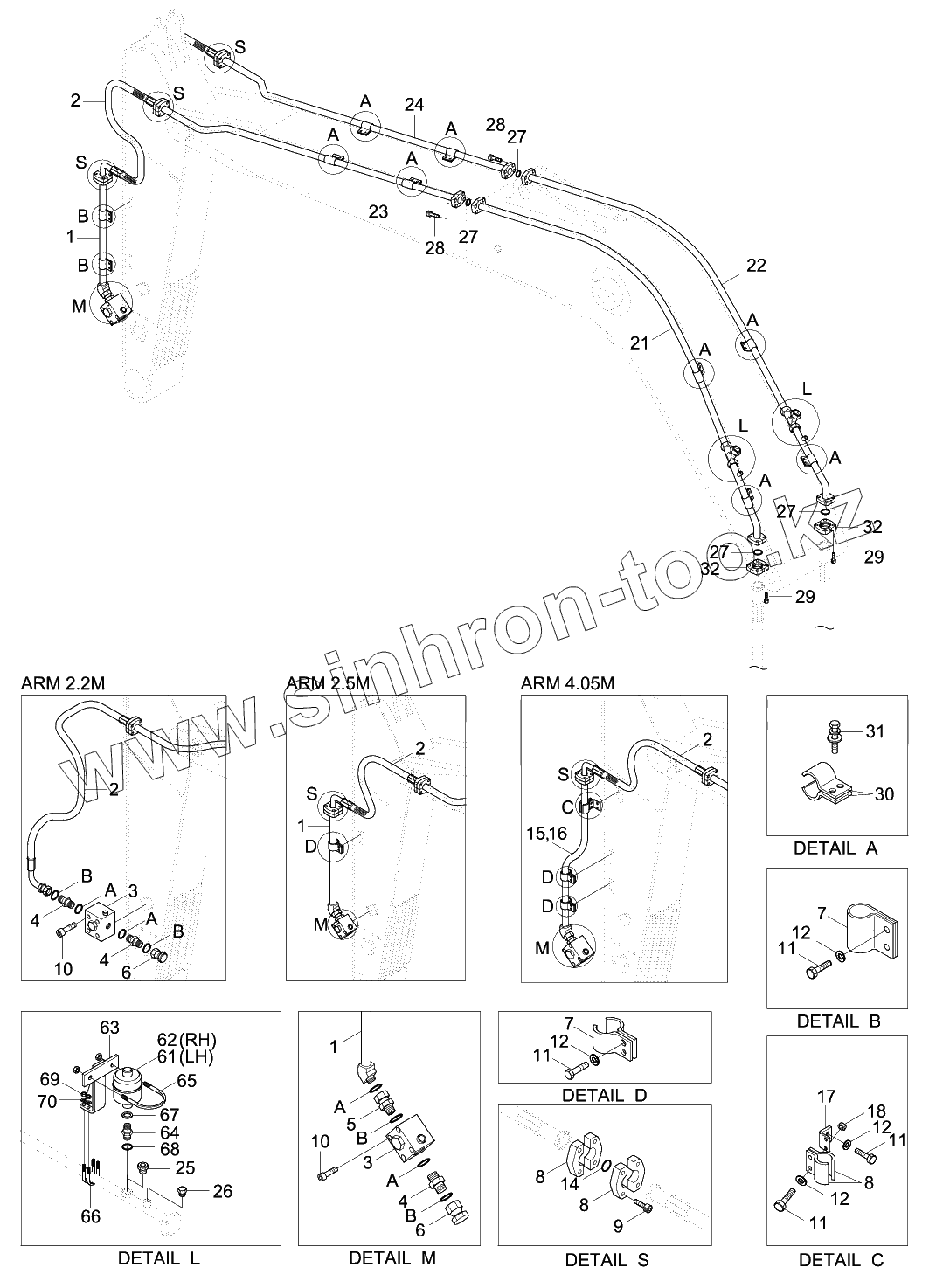

Каталог запасных частей к технике: Hyundai R330LC-9S. ATTACH PIPING KIT (S & D/ACTING)
1
1
1
1
2
2
2
2
2
2
2
3
3
3
3
4
4
4
4
5
6
6
6
7
7
8
8
8
9
10
10
11
11
11
11
12
12
12
12
13
13
13
13
14
15
16
17
18
21
21
22
22
23
23
24
24
25
26
27
27
27
27
28
28
29
29
30
31
32
32
61
62
63
64
65
66
67
68
69
70
75
75
75
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q8-90370 | 31Q8-90370 | ACCUMULATOR KIT | |
| 31Q9-91310 | 31Q9-91310 | BOOM PIPING KIT-BREAKER | |
| 31Q9-91410 | 31Q9-91410 | ARM PIPING KIT-BREAKER | |
| 1 | 31Q9-91511 | PIPE WA | |
| 1 | 31Q9-91530 | PIPE WA | |
| 2 | P995-207336 | HOSE ASSY-ORFS 90X0 | |
| 2 | P705-207341 | HOSE ASSY-FLG 0X90 | |
| 2 | P705-207336 | HOSE ASSY-FLG 0X90 | |
| 2 | P705-207339 | HOSE ASSY-FLG 0X90 | |
| 3 | 31Q8-92560 | STOP VALVE-RH | |
| 3 | 31Q8-92550 | STOP VALVE-LH | |
| 3 | 31Q8-91551 | Stop Valve | |
| 4 | P010-110007 | CONNECTOR | |
| 4 | X500-110006 | CONNECTOR-ORFS | |
| 5 | 31Q8-91560 | ADAPTER | |
| 6 | P290-100107 | CAP | |
| 6 | X710-100107 | Cap-Hyd,Orfs | |
| 7 | 31ND-51001 | CLAMP ASSY | |
| 8 | P173-200106 | FLANGE-HYD,SPLIT | |
| 9 | S109-100406 | BOLT-SOCKET | |
| 10 | S109-120706 | BOLT-SOCKET | |
| 11 | S017-16050D | BOLT-HEX | |
| 12 | S411-160006 | WASHER-SPRING | |
| 13 | S621-025001 | O-RING | |
| 14 | Y171-027004 | O-RING | |
| 15 | 31Q9-91540 | PIPE WA | |
| 16 | 31Q9-91550 | PIPE WA | |
| 17 | 31QA-60340 | BRACKET | |
| 18 | S205-16100B | NUT-HEX | |
| 21 | 31Q9-91650 | PIPE WA | |
| 21 | 31Q9-91611 | PIPE WA | |
| 22 | 31Q9-91660 | PIPE WA | |
| 22 | 31Q9-91621 | PIPE WA | |
| 23 | 31Q9-91670 | PIPE WA | |
| 23 | 31Q9-91631 | PIPE WA | |
| 24 | 31Q9-91641 | PIPE WA | |
| 24 | 31Q9-91680 | PIPE WA | |
| 25 | P220-110205 | PLUG-HEX | |
| 26 | 31EK-11130 | COUPLING-SCREW | |
| 27 | Y171-027004 | O-RING | |
| 28 | S109-100506 | BOLT-SOCKET | |
| 29 | S109-100406 | BOLT-SOCKET | |
| 30 | 34L1-01851 | CLAMP ASSY | |
| 31 | S037-123526 | BOLT-W/WASHER | |
| 32 | P173-200106 | FLANGE-HYD,SPLIT | |
| 61 | 31Q8-91670 | ACCUMULATOR | |
| 62 | 31Q8-91680 | ACCUMULATOR | |
| 63 | 32E6-92080 | BRACKET-ACCUM | |
| 64 | 31Q8-91690 | CONNECTOR | |
| 65 | 32E6-92060 | U-BOLT | |
| 66 | S071-034330 | U-BOLT | |
| 67 | 31Q8-91700 | SEAL | |
| 68 | S631-024004 | O-RING | |
| 69 | S205-10100B | NUT-HEX | |
| 70 | S403-10200B | WASHER-PLAIN | |
| 75 | S631-038004 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
