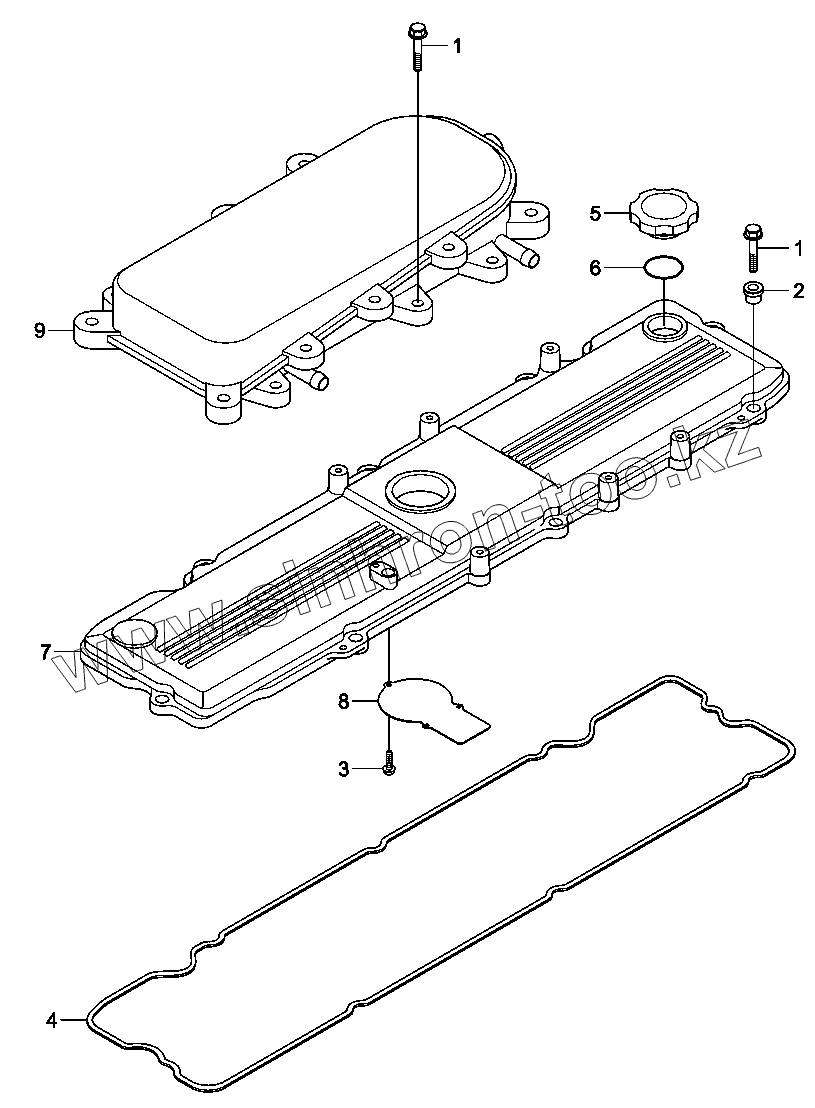

5259888
1
1
1
2
3
4
5
5
6
7
8
9
Позиция на иллюстрации
Заводской номер детали
Название детали
5259888
5259888
COVER-VALVE
1
3900632
SCREW-HEX F/HEAD CAP
1
3900632
SCREW-HEX F/HEAD CAP
2
3959799
ISOLATOR-NOISE
3
3931532
SCREW-SELF TAP METAL
4
3959798
GASKET-VALVE COVER
5
3973511
CAP-FILLER
5
3968283
CAP-FILLER
6
3973512
SEAL/O-RING
7
4937553
COVER-VALVE
8
4944414
BAFFLE-BREATHER
9
5267443
BREATHER-OIL SEPARATOR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
