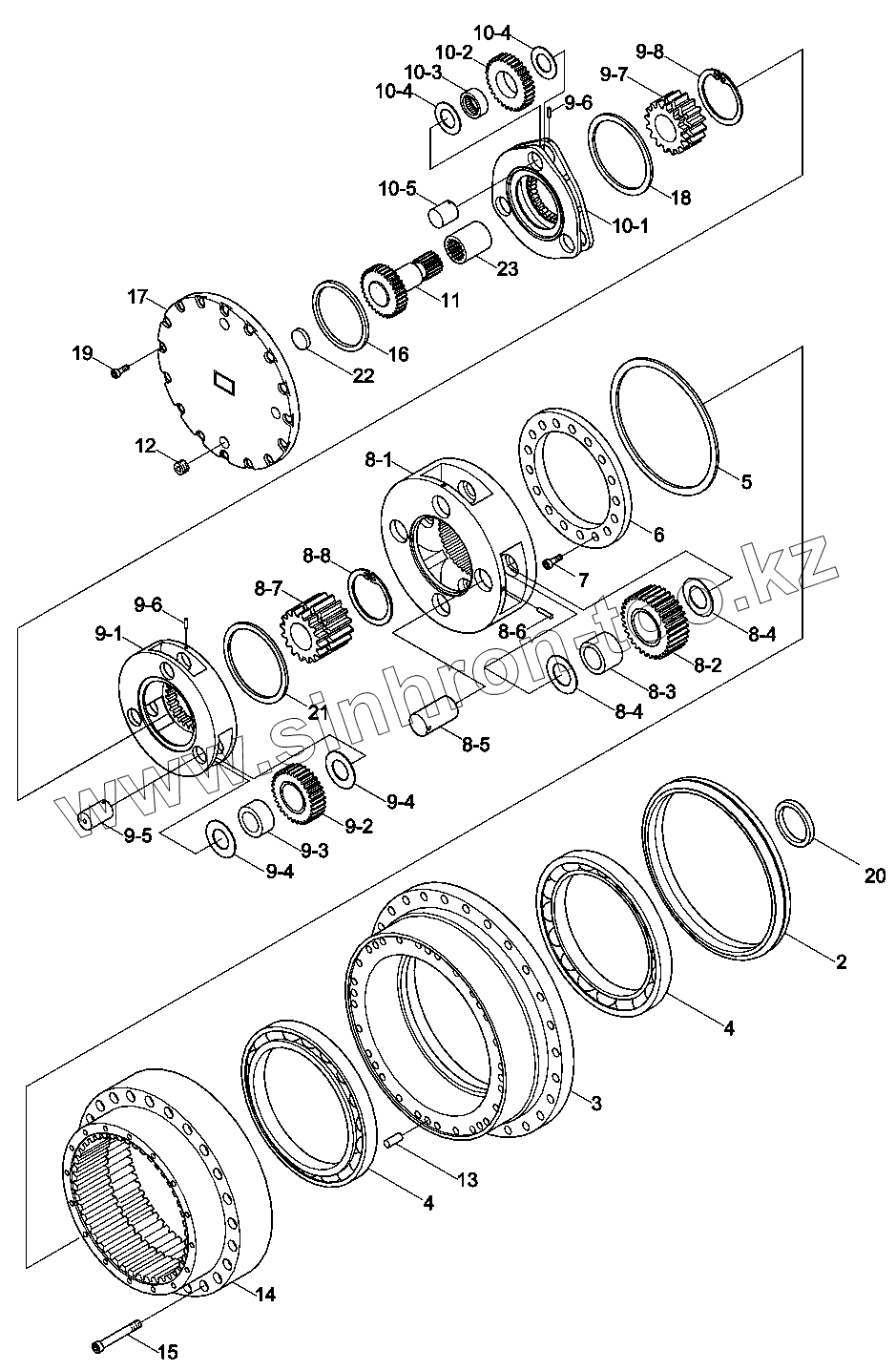

Каталог запасных частей к технике: Hyundai R330LC-9A. TRAVEL REDUCTION GEAR
XKAQ-00392
XKAQ-00396
XKAQ-00389
31Q9-40021
XKAQ-00390
XKAQ-00391
XKAQ-00391
XKAQ-00184
XKAQ-00185
XKAQ-00186
XKAQ-00187
XKAQ-00397
XKAQ-00393
XKAQ-00394
XKAQ-00394
XKAQ-00193
XKAQ-00194
XKAQ-00194
XKAQ-00195
XKAQ-00202
XKAQ-00395
XKAQ-00395
XKAQ-00200
XKAQ-00199
XKAQ-00198
XKAQ-00196
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| XKAQ-00392 | XKAQ-00392 | GEAR-PLANETERY 2 | |
| XKAQ-00396 | XKAQ-00396 | CARRIER 3 | |
| XKAQ-00389 | XKAQ-00389 | GEAR 3-PLANETARY | |
| 31Q9-40021 | 31Q9-40021 | TRAVEL REDUCTION GEAR | |
| XKAQ-00390 | XKAQ-00390 | NEEDLE 3 | |
| XKAQ-00391 | XKAQ-00391 | WASHER 3-THRUST | |
| XKAQ-00184 | XKAQ-00184 | PIN 3 | |
| XKAQ-00185 | XKAQ-00185 | PIN 3-SPRING | |
| XKAQ-00186 | XKAQ-00186 | GEAR 3-SUN | |
| XKAQ-00187 | XKAQ-00187 | RING 3-SNAP | |
| XKAQ-00397 | XKAQ-00397 | CARRIER 2 | |
| XKAQ-00393 | XKAQ-00393 | NEEDLE 2 | |
| XKAQ-00394 | XKAQ-00394 | WASHER-THRUST 2 | |
| XKAQ-00193 | XKAQ-00193 | PIN 2 | |
| XKAQ-00194 | XKAQ-00194 | PIN 2-SPRING | |
| XKAQ-00195 | XKAQ-00195 | GEAR 2-SUN | |
| XKAQ-00202 | XKAQ-00202 | PIN 1 | |
| XKAQ-00395 | XKAQ-00395 | WASHER 1-THRUST | |
| XKAQ-00200 | XKAQ-00200 | BEARING-NEEDLE | |
| XKAQ-00199 | XKAQ-00199 | GEAR 1-PLANETARY | |
| XKAQ-00198 | XKAQ-00198 | CARRIER 1 | |
| XKAQ-00196 | XKAQ-00196 | RING 2-SNAP | |
| 2 | XKAQ-00173 | SEAL-FLOATING | |
| 3 | XKAQ-00174 | HOUSING | |
| 4 | XKAQ-00175 | BEARING-ANGULAR | |
| 4 | XKAQ-00175-AS | BEARING-ANGULAR | |
| 5 | XKAQ-00176 | SHIM | |
| 6 | XKAQ-00177 | RETAINER | |
| 7 | XKAQ-00178 | BOLT-WRENCH | |
| 8 | XKAQ-00398 | CARRIER 3 ASSY | |
| 9 | XKAQ-00399 | CARRIER ASSY 2 | |
| 10 | XKAQ-00400 | CARRIER 1 ASSY | |
| 11 | XKAQ-00203 | GEAR 1-SUN | |
| 12 | XKAQ-00204 | PLUG | |
| 13 | XKAQ-00205 | PIN-LOCK | |
| 14 | XKAQ-00762 | GEAR-RING | |
| 15 | XKAQ-00207 | BOLT-WRENCH | |
| 16 | XKAQ-00208 | RING-THRUST | |
| 17 | XKAQ-00209 | COVER | |
| 18 | XKAQ-00210 | RING 2-THRUST | |
| 19 | XKAQ-00211 | BOLT-WRENCH | |
| 20 | XKAQ-00212 | MOTOR-RING | |
| 21 | XKAQ-00213 | RING 3-THRUST | |
| 22 | XKAQ-00214 | PAD | |
| 23 | XKAQ-00215 | COUPLING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
