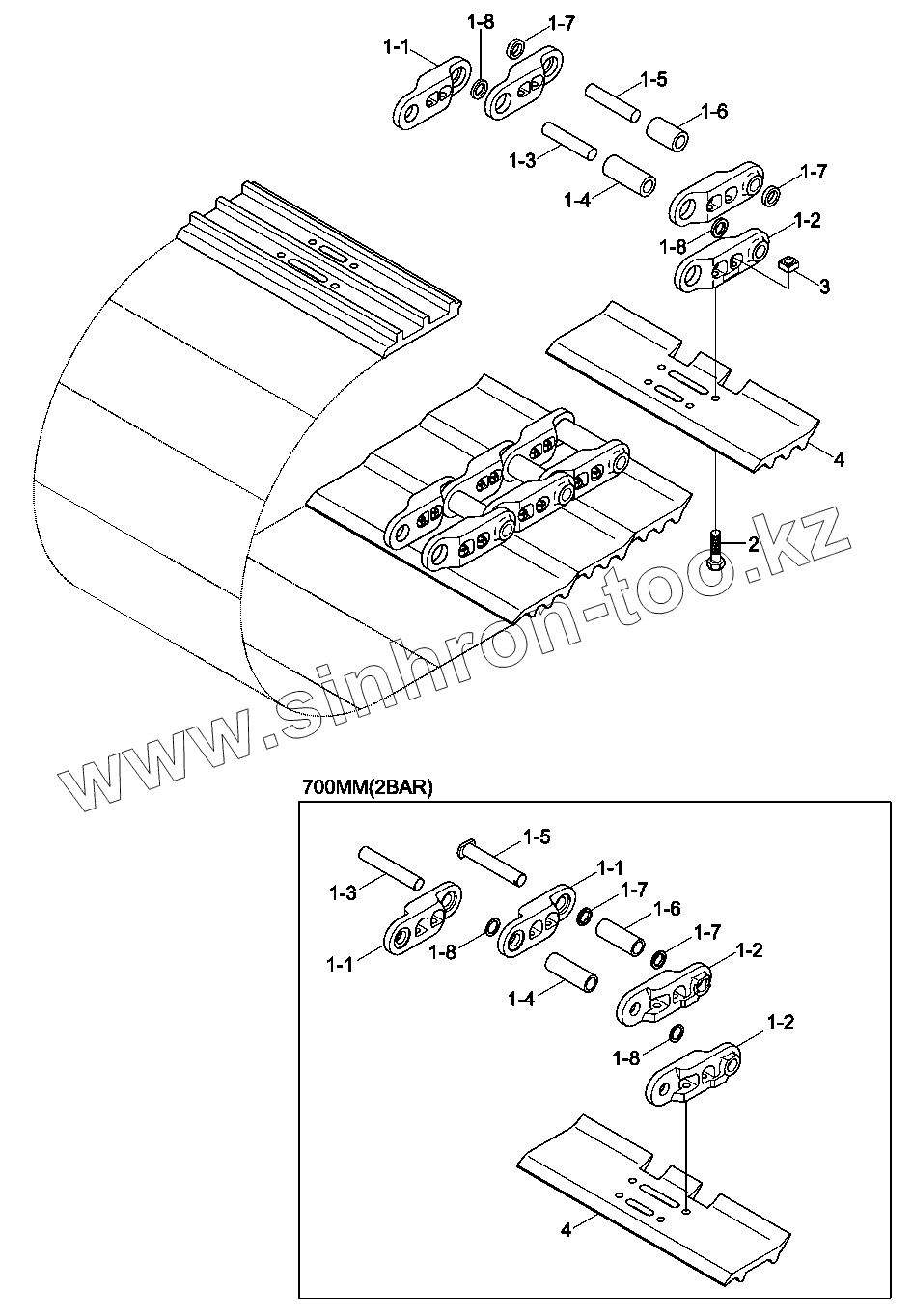

Каталог запасных частей к технике: Hyundai R330LC-9A. TRACK CHAIN
81N8-26042GG
81N8-26062GG
81N8-26072GG
81N8-27042GG
81N8-26032GG
81EH-T0001
81N8-T0000
1
1
2
2
3
3
4
4
4
4
4
4
11
11
11
11
12
12
12
12
13
13
13
14
14
14
15
15
15
16
16
16
17
17
17
17
18
18
18
18
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 81N8-26042GG | 81N8-26042GG | TRACK CHAIN ASSY | |
| 81N8-26062GG | 81N8-26062GG | TRACK CHAIN ASSY | |
| 81N8-26072GG | 81N8-26072GG | TRACK CHAIN ASSY | |
| 81N8-27042GG | 81N8-27042GG | TRACK CHAIN ASSY | |
| 81N8-26032GG | 81N8-26032GG | TRACK CHAIN ASSY | |
| 81EH-T0001 | 81EH-T0001 | TRACK BOLT & NUT KIT | |
| 81N8-T0000 | 81N8-T0000 | TRACK BOLT & NUT KIT | |
| 1 | 81N8-26602 | TRACK LINK ASSY | |
| 1 | 81N8-27601 | TRACK LINK ASSY | |
| 2 | 81EH-20021 | BOLT-TRACK | |
| 2 | 81N8-26610 | BOLT-TRACK | |
| 3 | 81EH-20031 | NUT-TRACK | |
| 3 | 81N8-26620 | NUT-TRACK | |
| 4 | 81NB-27542 | SHOE-TRACK | |
| 4 | 81N8-26571 | SHOE-TRACK | |
| 4 | 81N8-26561 | SHOE-TRACK | |
| 4 | 81N8-26541 | SHOE-TRACK | |
| 4 | 81N8-26531 | SHOE-TRACK | |
| 11 | 81N8-26102 | TRACK LINK-RH | |
| 11 | 81EH-20111 | TRACK LINK-RH | |
| 12 | 81EH-20121 | TRACK LINK-LH | |
| 12 | 81N8-26112 | TRACK LINK-LH | |
| 13 | 81EH-20150 | TRACK PIN-REGULAR | |
| 13 | 81N8-26141 | TRACK PIN-REGULAR | |
| 14 | 81EH-20170 | BUSHING-REGULAR | |
| 14 | 81N8-26151 | TRACK BUSH-REGULAR | |
| 15 | 81EH-20160 | TRACK PIN-MASTER | |
| 15 | 81N8-26161 | TRACK PIN-MATSTER | |
| 16 | 81EH-20180 | BUSHING-MASTER | |
| 16 | 81N8-26171 | TRACK BUSHING-MASTER | |
| 17 | 81EH-20190 | SPACER | |
| 17 | 81N8-26180 | SPACER | |
| 18 | 81N8-26210 | SEAL-DUST | |
| 18 | 81EH-20210 | SEAL-DUST |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
